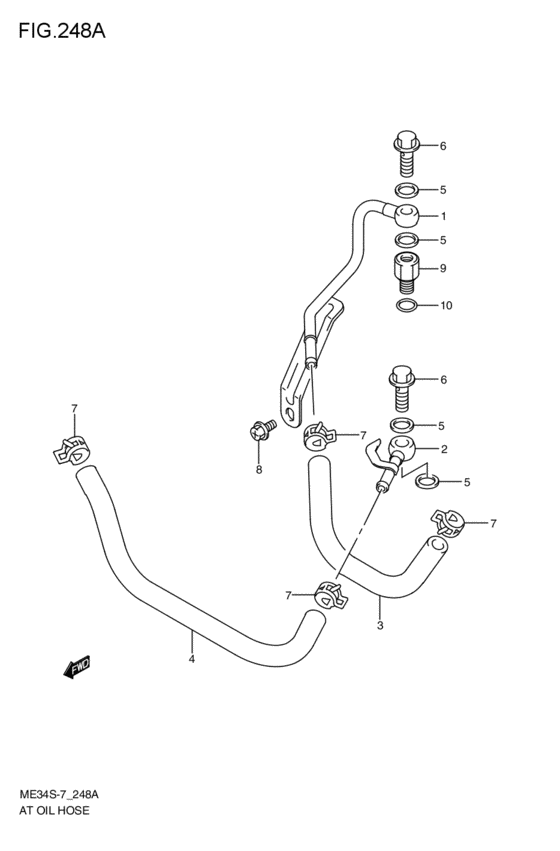

at - oil hose (2009-06-01~) Diagram Suzuki OTHER MODELS
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- XV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22911-70H11-000 PIPE,OIL COOLER INLET2009-06-01~ |
22911-70H11-000 |
US $30.73 |
||
|
2
|
2
22921-70H10-000 PIPE,OIL COOLER OUTLET2009-06-01~ |
22921-70H10-000 |
US $32.94 |
||
|
3
|
3
22931-70H10-000 HOSE,OIL COOLER INLET2009-06-01~ |
22931-70H10-000 |
from US $17.26 |
||
|
4
|
4
22932-70H10-000 HOSE,OIL COOLER OUTLET2009-06-01~ |
22932-70H10-000 |
from US $18.95 |
||
|
5
|
5
22913-63J10-000 GASKET,OIL PIPE UNION BOLT2009-06-01~ |
22913-63J10-000 |
US $1.51 |
||
|
6
|
6
09360-10055-000 UNIONBolt, oil pipe union 2009-06-01~ |
09360-10055-000 |
from US $4.80 |
||
|
7
|
7
09401-13419-000 CLIP2009-06-01~ |
09401-13419-000 |
from US $1.60 |
||
|
8
|
8
01550-0612A-000 BOLT2009-06-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
9
|
9
24743-55G10-000 UNION,OIL PIPE2009-06-01~ |
24743-55G10-000 |
US $20.98 |
||
|
10
|
10
29737-57B00-000 O-RING,OIL PIPE2009-06-01~ |
29737-57B00-000 |
from US $2.28 |
