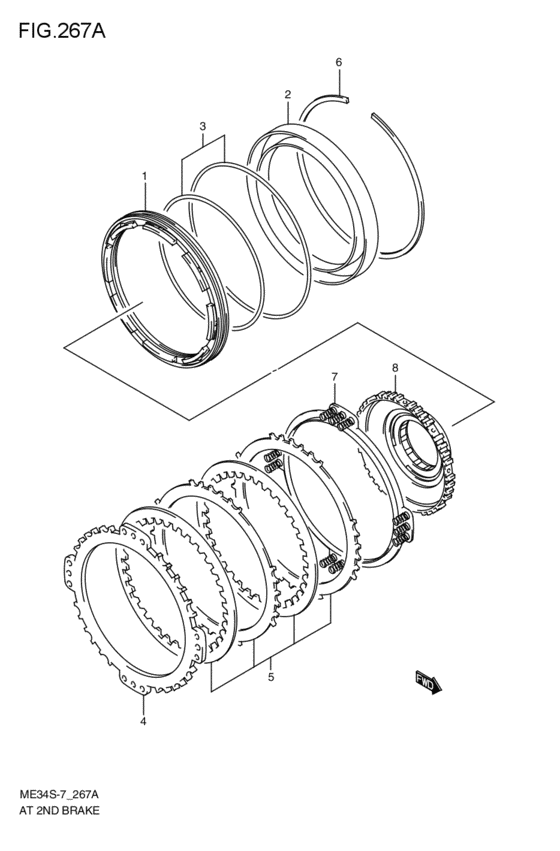

at - second brakes (2009-06-01~) Diagram Suzuki OTHER MODELS
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- XV
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26731-79C10-000 PISTON,2ND BRAKE2009-06-01~ |
26731-79C10-000 |
US $20.24 |
||
|
2
|
2
26732-79C10-000 CYLINDER,2ND BRAKE PISTON2009-06-01~ |
26732-79C10-000 |
US $20.79 |
||
|
3
|
3
26733-79CT0-000 O-RING SET,2ND BRAKE2009-06-01~ |
26733-79CT0-000 |
US $6.29 |
||
|
4
|
4
26741-79C10-000 PLATE,2ND BRAKE RETAINER2009-06-01~ |
26741-79C10-000 |
US $24.80 |
||
|
5
|
5
26742-79CT0-000
DISC SET,2ND BRAKE
2009-06-01~ |
26742-79CT0-000 |
— | ||
|
6
|
6
26744-79C10-000 RING,2ND BRAKE PLATE2009-06-01~ |
26744-79C10-000 |
US $4.64 |
||
|
7
|
7
26750-79C10-000 SPRING ASSY,2ND BRAKE2009-06-01~ |
26750-79C10-000 |
US $9.20 |
||
|
8
|
8
26760-68J10-000 CLUTCH ASSY,2ND BK2009-06-01~ |
26760-68J10-000 |
US $100 |
