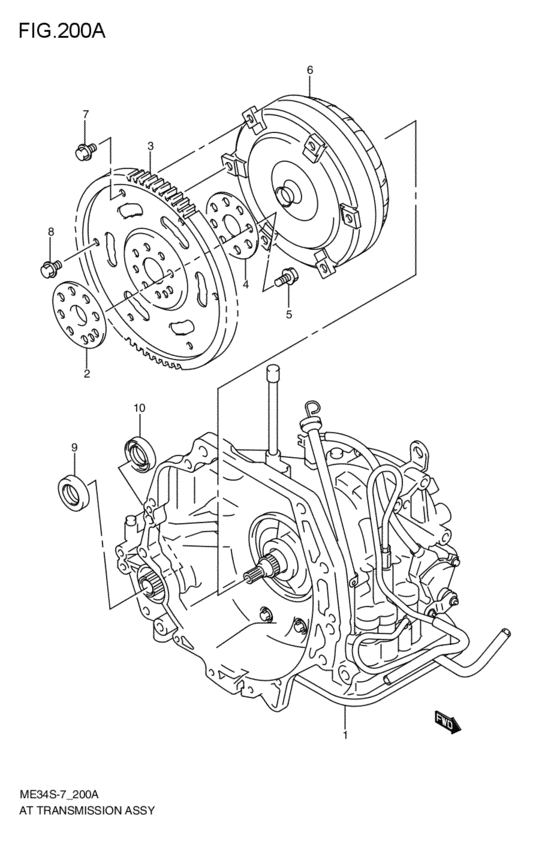

at - transmission assy (2009-06-01~) Diagram Suzuki OTHER MODELS
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- XV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
20002-79CM4-000
T/M ASSY,AUTOMATIC
2WD; 2009-06-01~ |
20002-79CM4-000 |
— | ||
|
1
|
1
20002-79CM4-111
トランスミッションアッシ,オートマチック(リビルド)
リビルト; 2WD; 2009-06-01~ |
20002-79CM4-111 |
— | ||
|
2
|
2
22611-69G10-000 FLANGE,T/C DRIVE PLATE FR2009-06-01~ |
22611-69G10-000 |
US $37.17 |
||
|
3
|
3
22620-69G10-000 PLATE,TC DRIVE2009-06-01~ |
22620-69G10-000 |
US $163.20 |
||
|
4
|
4
22631-69G10-000 PLATE,TC DRIVE REAR2009-06-01~ |
22631-69G10-000 |
US $7.95 |
||
|
5
|
5
09103-10305-000 BOLT(10X18.5)2009-06-01~ |
09103-10305-000 |
US $22.40 |
||
| replacement | |||||
|
5
|
5
09100-10275-000 BOLT(10X18.5)2009-06-01~ |
09100-10275-000 |
US $1.44 |
||
|
6
|
6
22710-79C10-000 CONVERTER,TORQUE2009-06-01~ |
22710-79C10-000 |
US $841.28 |
||
|
7
|
7
09103-08516-000 BOLT(8X9.5)2009-06-01~ |
09103-08516-000 |
from US $1.12 |
||
|
8
|
8
09103-08517-000 BOLT(8X9.5)2009-06-01~ |
09103-08517-000 |
from US $3.65 |
||
|
9
|
9
27611-79C10-000 SEAL,DIFF SIDE OIL,R2009-06-01~ |
27611-79C10-000 |
from US $6.93 |
||
|
10
|
10
27612-79C10-000 SEAL,DIFF SIDE OIL, LH2009-06-01~ |
27612-79C10-000 |
from US $8.35 |
||
