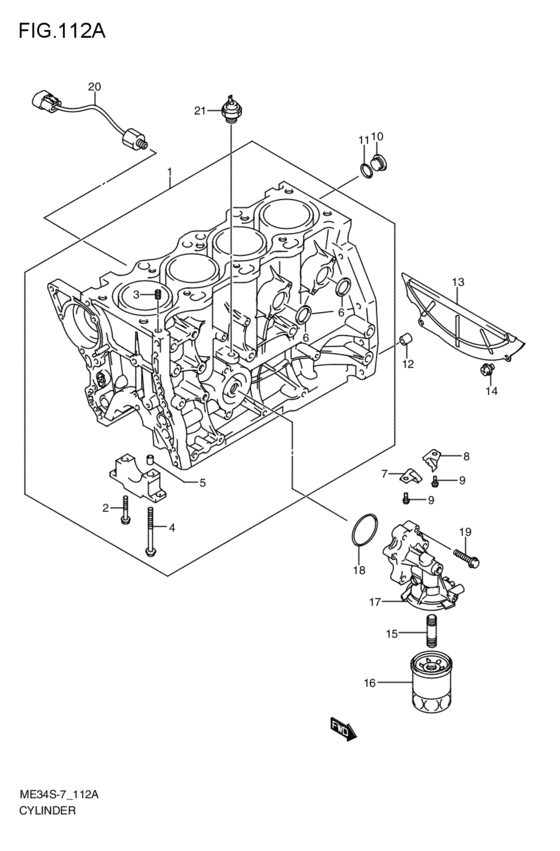

Cylinder (2009-06-01~) Diagram Suzuki OTHER MODELS
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- XV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11200-69G06-000
Block assy,cylinder
2009-06-01~ |
11200-69G06-000 |
— | ||
| replacements | |||||
|
1
|
1
11200-69G08-X12
BLOCK ASSY,CYLINDER M13A
2009-06-01~ |
11200-69G08-X12 |
— | ||
|
1
|
1
11200-69G09-X12 BLOCK ASSY,CYLINDER M13A2009-06-01~ |
11200-69G09-X12 |
US $1,575.52 |
||
|
2
|
2
01550-0840A-000 BOLT2009-06-01~ |
01550-0840A-000 |
from US $1.12 |
||
|
3
|
3
11112-73010-000 PLUG,OIL VENTURI2009-06-01~ |
11112-73010-000 |
US $1.60 |
||
|
4
|
4
11260-69G00-000
Bolt,crank bearing cap,10x97
2009-06-01~ |
11260-69G00-000 |
— | ||
| replacement | |||||
|
4
|
4
11260-69G01-000 BOLT,CRANK BEARING CAP2009-06-01~ |
11260-69G01-000 |
US $2.40 |
||
|
5
|
5
04211-13189-000 PIN2009-06-01~ |
04211-13189-000 |
from US $1.19 |
||
|
6
|
6
09241-30010-000 PLUG2009-06-01~ |
09241-30010-000 |
US $2.40 |
||
|
7
|
7
11213-69G00-000 PLATE,BREATHER FRONT2009-06-01~ |
11213-69G00-000 |
US $2.24 |
||
|
8
|
8
11214-69G00-000 PLATE,BREATHER REAR2009-06-01~ |
11214-69G00-000 |
US $2.24 |
||
|
9
|
9
01550-0612A-000 BOLT2009-06-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
10
|
10
09248-18011-000 PLUG(18X8)Plug, oil gallery 2009-06-01~ |
09248-18011-000 |
from US $2.88 |
||
|
11
|
11
11216-77E00-000 GASKET,M18 PLUG2009-06-01~ |
11216-77E00-000 |
from US $1.74 |
||
|
12
|
12
09202-08004-000 PIN(8X23)2009-06-01~ |
09202-08004-000 |
from US $1.53 |
||
|
13
|
13
11320-69G00-000 PLATE,CLUTCH HSG LWR2009-06-01~ |
11320-69G00-000 |
US $15.84 |
||
|
14
|
14
02162-0610A-000 SCREW2009-06-01~ |
02162-0610A-000 |
from US $0.64 |
||
|
15
|
15
11241-86FA0-000 STAND,OIL FILTER2009-06-01~ |
11241-86FA0-000 |
US $6.72 |
||
|
16
|
16
16510-61A30-000
Filter assy,oil
WAKO; 2009-06-01~ |
16510-61A30-000 |
— | ||
| replacement | |||||
|
16
|
16
16510-61A32-000 OIL FILTER, WAKOWAKO; 2009-06-01~ |
16510-61A32-000 |
from US $18.64 |
||
|
17
|
17
16531-69G10-000
Case,oil filter adapter
2009-06-01~ |
16531-69G10-000 |
— | ||
| replacements | |||||
|
17
|
17
16531-69G20-000 CASE,OIL FILTER ADAPTER2009-06-01~ |
16531-69G20-000 |
US $80.80 |
||
|
17
|
17
16539-69G00-000 GASKET,OIL ADAPTER CASE2009-06-01~ |
16539-69G00-000 |
from US $4.10 |
||
|
18
|
18
09280-62003-000 O RING(D:3.5,ID:60.7)2009-06-01~ |
09280-62003-000 |
from US $3.42 |
||
|
19
|
19
01550-0830A-000 BOLTBolt, mount oil seal cover 2009-06-01~ |
01550-0830A-000 |
from US $1.12 |
||
|
20
|
20
18640-78G00-000 SENSOR ASSY,KNOCK2009-06-01~ |
18640-78G00-000 |
from US $104.49 |
||
|
21
|
21
37820-80G01-000
Switch assy,oil press
2009-06-01~ |
37820-80G01-000 |
— | ||
| replacement | |||||
|
21
|
21
37820-80GP0-000 SWITCH ASSY,OIL PRESSURE2009-06-01~ |
37820-80GP0-000 |
from US $11.18 |
||
