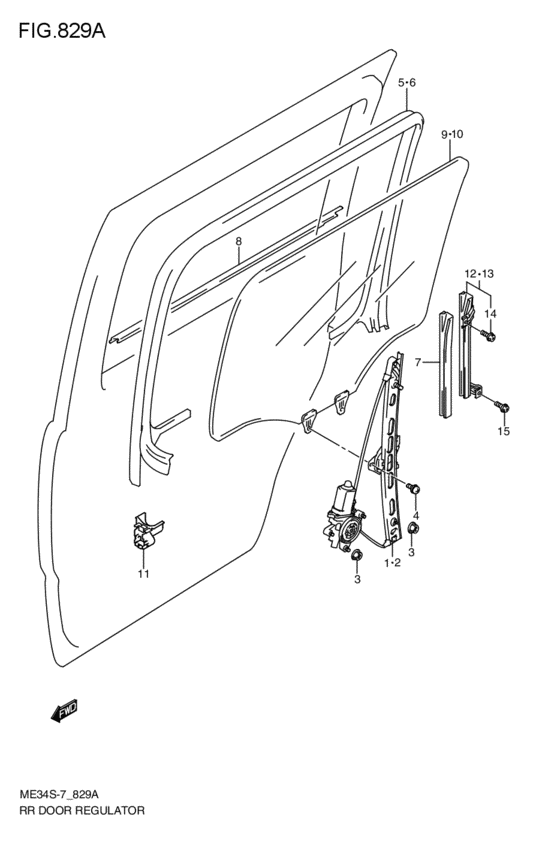

rear door regulator (2009-06-01~) Diagram Suzuki OTHER MODELS
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- XV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
83501-76F10-000 REGULATOR ASSY,RR WINDOW,R2009-06-01~ |
83501-76F10-000 |
US $298.08 |
||
|
2
|
2
83502-76F10-000 REGULATOR ASSY,RR WINDOW,L2009-06-01~ |
83502-76F10-000 |
US $298.08 |
||
|
3
|
3
08316-1006A-000 NUT2009-06-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
4
|
4
02112-7612A-000 SCREW2009-06-01~ |
02112-7612A-000 |
US $12.50 |
||
| replacement | |||||
|
4
|
4
02112-7612B-000 SCREW2009-06-01~ |
02112-7612B-000 |
from US $0.96 |
||
|
5
|
5
83671-78F00-000 RUN,RR DOOR GLASS,R2009-06-01~ |
83671-78F00-000 |
US $115.55 |
||
|
6
|
6
83675-78F00-000 RUN,RR DOOR GLASS,L2009-06-01~ |
83675-78F00-000 |
US $115.55 |
||
|
7
|
7
83662-76F00-000 RUN,RR DOOR GLASS RR2009-06-01~ |
83662-76F00-000 |
US $11.67 |
||
|
8
|
8
83831-76F01-000 WEATHERSTRIP,RR DR OUT2009-06-01~ |
83831-76F01-000 |
US $47.10 |
||
|
9
|
9
84541-76820-000 GLASS RR DR WINDOW,R(CENTRAL); 2009-06-01~ |
84541-76820-000 |
US $290.72 |
||
|
10
|
10
84546-76820-000
ガラス,ドアウィンド,レフト(ダークグレー)
(CENTRAL); 2009-06-01~ |
84546-76820-000 |
— | ||
|
11
|
11
81751-76F00-000 SASH,RR DOOR FRONT2009-06-01~ |
81751-76F00-000 |
US $8.02 |
||
|
12
|
12
81770-76F00-000 SASH,RR DOOR REAR,R2009-06-01~ |
81770-76F00-000 |
US $18.36 |
||
|
13
|
13
81780-76F00-000 SASH,RR DOOR REAR,L2009-06-01~ |
81780-76F00-000 |
US $18.36 |
||
|
14
|
14
02162-0612A-000 SCREWBolt, bracket 2009-06-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
15
|
15
02162-0612A-000 SCREWBolt, bracket 2009-06-01~ |
02162-0612A-000 |
from US $0.80 |
||
