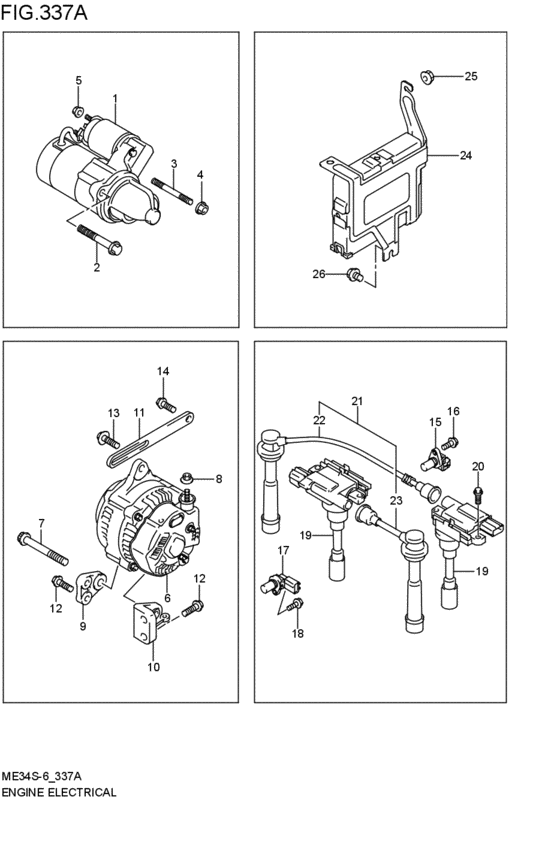

engine electrical (2007-06-01~) Diagram Suzuki OTHER MODELS
- Year
- 2007 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- XV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-63J00-000
MOTOR ASSY,STARTING
2007-06-01~ |
31100-63J00-000 |
— | ||
| replacement | |||||
|
1
|
1
31100-63J01-000 MOTOR ASSYSTARTING2007-06-01~ |
31100-63J01-000 |
from US $489.69 |
||
|
2
|
2
01550-1060A-000 Bolt2007-06-01~ |
01550-1060A-000 |
from US $1.60 |
||
|
3
|
3
01421-1060A-000 BOLT,STUD2007-06-01~ |
01421-1060A-000 |
from US $1.68 |
||
|
4
|
4
08316-1010A-000 NUTNut, kick starter 2007-06-01~ |
08316-1010A-000 |
from US $0.76 |
||
|
5
|
5
08316-1008A-000 NUTNut, idle gear shaft 2007-06-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
6
|
6
31400-80G10-000
Generator assy
2007-06-01~ |
31400-80G10-000 |
— | ||
| replacements | |||||
|
6
|
6
31400-80G11-000
GENERATOR ASSY
2007-06-01~ |
31400-80G11-000 |
— | ||
|
6
|
6
31400-80G12-000 Generator Assy2007-06-01~ |
31400-80G12-000 |
from US $593.30 |
||
|
7
|
7
07120-1085A-000 BOLT2007-06-01~ |
07120-1085A-000 |
US $24.70 |
||
|
8
|
8
08316-1006A-000 NUT2007-06-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
9
|
9
11550-64J01-000 BRACKET,GENERATOR2007-06-01~ |
11550-64J01-000 |
US $20.98 |
||
|
10
|
10
11550-54G10-000 BRACKET ASSY,GENERATOR NO.22007-06-01~ |
11550-54G10-000 |
US $31.20 |
||
|
11
|
11
11561-69G01-000 ARM,GENERATOR ADJUST2007-06-01~ |
11561-69G01-000 |
US $6.59 |
||
|
12
|
12
01550-0830A-000 BOLTBolt, mount oil seal cover 2007-06-01~ |
01550-0830A-000 |
from US $1.12 |
||
|
13
|
13
09118-08107-000 BOLT(8X25)2007-06-01~ |
09118-08107-000 |
US $1.12 |
||
|
14
|
14
01550-0820A-000 BOLTBolt, funnel bracket 2007-06-01~ |
01550-0820A-000 |
from US $0.96 |
||
|
15
|
15
33220-63J10-000 SENSOR ASSY,POSITION2007-06-01~ |
33220-63J10-000 |
US $79.12 |
||
| replacement | |||||
|
15
|
15
33220-50M30-000 SENSOR ASSY,CAM POSITION2007-06-01~ |
33220-50M30-000 |
from US $75.60 |
||
|
16
|
16
09103-06283-000 BOLT(6X16)2007-06-01~ |
09103-06283-000 |
from US $4.37 |
||
|
17
|
17
33220-63J00-000
SENSOR ASSY,POSITION
2007-06-01~ |
33220-63J00-000 |
— | ||
| replacement | |||||
|
17
|
17
33220-64L20-000 SENSOR ASSY, CRANK POSITION2007-06-01~ |
33220-64L20-000 |
from US $73.62 |
||
|
18
|
18
09103-06283-000 BOLT(6X16)2007-06-01~ |
09103-06283-000 |
from US $4.37 |
||
|
19
|
19
33400-65G01-000
Coil assy,ignition
2007-06-01~ |
33400-65G01-000 |
— | ||
| replacement | |||||
|
19
|
19
33400-65G02-000 COIL ASSY,IGNITION DENSO2007-06-01~ |
33400-65G02-000 |
from US $173.68 |
||
|
20
|
20
09135-06024-000 BOLT(6X23)2007-06-01~ |
09135-06024-000 |
US $12.50 |
||
|
21
|
21
33705-80G00-000 CORD SET,HIGH TENSION2007-06-01~ |
33705-80G00-000 |
from US $42.21 |
||
|
22
|
22
33730-80G00-000 CORD,HIGH TENSION NO.22007-06-01~ |
33730-80G00-000 |
from US $22.10 |
||
|
23
|
23
33740-80G00-000 CORD,HIGH TENSION NO.32007-06-01~ |
33740-80G00-000 |
from US $21.28 |
||
|
24
|
24
33920-78FS0-000
Controller assy,epi-a/c
2007-06-01~ |
33920-78FS0-000 |
— | ||
| replacement | |||||
|
24
|
24
33920-78FS2-000 CONTROLLER ASSY,EPI-A/C2007-06-01~ |
33920-78FS2-000 |
US $1,513.60 |
||
|
25
|
25
09159-06081-000 NUT2007-06-01~ |
09159-06081-000 |
US $12.50 |
||
|
26
|
26
02162-0612A-000 SCREWBolt, bracket 2007-06-01~ |
02162-0612A-000 |
from US $0.80 |
||
