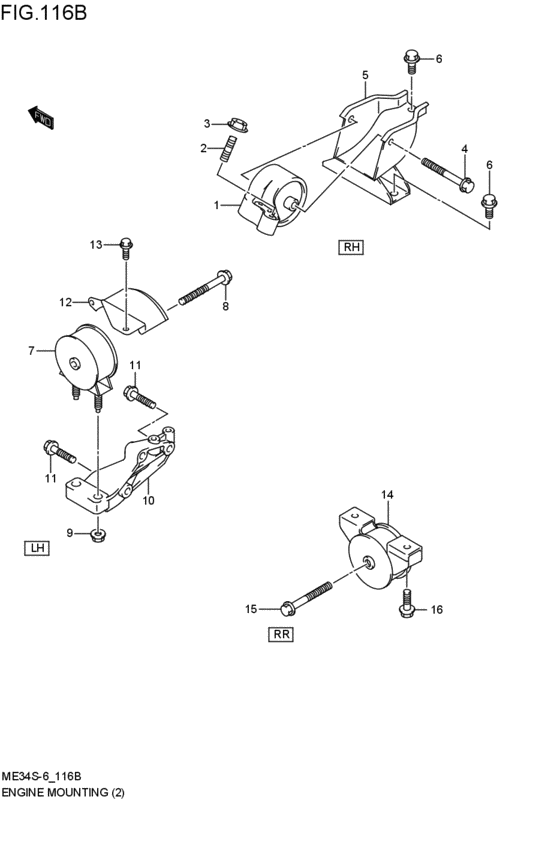

engine mounting (4WD; 2007-06-01~) Diagram Suzuki OTHER MODELS
- Year
- 2007 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- XV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-79C00-000 MOUNTING,ENG,R4WD; 2007-06-01~ |
11610-79C00-000 |
US $202.40 |
||
|
2
|
2
09108-10136-000 BOLT,STUD(10X50)4WD; 2007-06-01~ |
09108-10136-000 |
US $2.40 |
||
|
3
|
3
09159-10115-000 NUT4WD; 2007-06-01~ |
09159-10115-000 |
from US $2.58 |
||
|
4
|
4
09103-10110-000 BOLT(10X100)Bolt, lh outer (10x100) 4WD; 2007-06-01~ |
09103-10110-000 |
from US $3.95 |
||
|
5
|
5
11640-80GA0-000 BRACKET,ENG BODY SIDE,R4WD; 2007-06-01~ |
11640-80GA0-000 |
US $64.77 |
||
|
6
|
6
01551-1025A-000 Bolt4WD; 2007-06-01~ |
01551-1025A-000 |
US $1.12 |
||
|
7
|
7
11620-70H00-000 MOUNTING,ENG,L4WD; 2007-06-01~ |
11620-70H00-000 |
US $203.20 |
||
|
8
|
8
09113-10005-000 BOLT(10X90)4WD; 2007-06-01~ |
09113-10005-000 |
US $21.70 |
||
|
9
|
9
08316-1010A-000 NUTNut, kick starter 4WD; 2007-06-01~ |
08316-1010A-000 |
from US $0.76 |
||
|
10
|
10
11651-79C00-000 BRACKET,ENG MTG,L4WD; 2007-06-01~ |
11651-79C00-000 |
US $67.34 |
||
|
11
|
11
01550-1045A-000 Bolt4WD; 2007-06-01~ |
01550-1045A-000 |
US $19.50 |
||
|
12
|
12
11671-78F01-000 BRACKET,ENG MTG BODY,L4WD; 2007-06-01~ |
11671-78F01-000 |
US $23.37 |
||
|
13
|
13
01551-0820A-000 BOLT4WD; 2007-06-01~ |
01551-0820A-000 |
from US $0.96 |
||
|
14
|
14
11710-78F11-000 MOUNTING,ENG REAR4WD; 2007-06-01~ |
11710-78F11-000 |
from US $77.99 |
||
|
15
|
15
09103-10173-000 BOLT(10X80)4WD; 2007-06-01~ |
09103-10173-000 |
from US $9.35 |
||
|
16
|
16
01551-1035A-000 Bolt4WD; 2007-06-01~ |
01551-1035A-000 |
US $19.50 |
