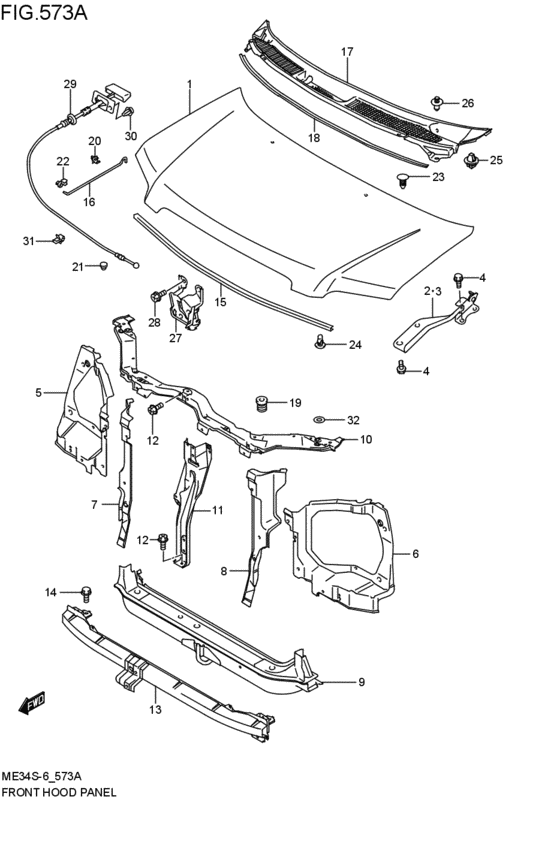

front hood (2007-06-01~) Diagram Suzuki OTHER MODELS
- Year
- 2007 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- XV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57300-78F50-000 PANEL,FRONT HOOD2007-06-01~ |
57300-78F50-000 |
US $404.80 |
||
|
2
|
2
57410-78F00-000 HINGE,FR HOOD,R2007-06-01~ |
57410-78F00-000 |
US $24.10 |
||
|
3
|
3
57420-78F00-000 HINGE,FR HOOD,L2007-06-01~ |
57420-78F00-000 |
US $24.10 |
||
|
4
|
4
01550-0612A-000 BOLT2007-06-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
5
|
5
58111-78F50-000 PANEL,LAMP SUPPORT,R2007-06-01~ |
58111-78F50-000 |
US $55.20 |
||
|
6
|
6
58131-78F50-000 PANEL,LAMP SUPPORT,L2007-06-01~ |
58131-78F50-000 |
US $55.20 |
||
|
7
|
7
58112-78F50-000 BRACE,LAMP SUPPORT PANEL,R2007-06-01~ |
58112-78F50-000 |
US $26.86 |
||
|
8
|
8
58132-78F50-000 BRACE,LAMP SUPPORT PANEL,L2007-06-01~ |
58132-78F50-000 |
US $26.86 |
||
|
9
|
9
58210-78811-000 CROSSMEMBER SET,FR LOWER2007-06-01~ |
58210-78811-000 |
US $250.24 |
||
|
10
|
10
58230-78F51-000 CROSSMEMBER,HOOD LOCK2007-06-01~ |
58230-78F51-000 |
US $105.62 |
||
|
11
|
11
58241-78F51-000 BRACE,HOOD LOCK MEMBER2007-06-01~ |
58241-78F51-000 |
US $37.17 |
||
|
12
|
12
02162-0612A-000 SCREWBolt, bracket 2007-06-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
13
|
13
58260-78F50-000 MEMBER,FR BUMPER2007-06-01~ |
58260-78F50-000 |
US $81.70 |
||
|
14
|
14
01551-0820A-000 BOLT2007-06-01~ |
01551-0820A-000 |
from US $0.96 |
||
|
15
|
15
72151-78F00-000 SEAL,HOOD FR2007-06-01~ |
72151-78F00-000 |
US $28.52 |
||
|
16
|
16
72311-78F00-000 PROP,FRONT HOOD2007-06-01~ |
72311-78F00-000 |
US $11.67 |
||
|
17
|
17
72331-78F01-5PK GARNISH,COWL TOP2007-06-01~ |
72331-78F01-5PK |
US $107.82 |
||
|
18
|
18
72341-78F00-000 SEAL,HOOD RR2007-06-01~ |
72341-78F00-000 |
US $35.33 |
||
|
19
|
19
72372-82000-000 CUSHION,BACK DR SIDECushion 2007-06-01~ |
72372-82000-000 |
from US $2.12 |
||
|
20
|
20
09209-09007-000 LINKAGEConnector 2007-06-01~ |
09209-09007-000 |
from US $1.42 |
||
|
21
|
21
09321-10023-000 CUSHION2007-06-01~ |
09321-10023-000 |
from US $1.82 |
||
|
22
|
22
09403-07311-000 CLAMP2007-06-01~ |
09403-07311-000 |
from US $0.95 |
||
|
23
|
23
09409-10304-5ES CLIP(BLACK)2007-06-01~ |
09409-10304-5ES |
US $1.28 |
||
|
24
|
24
09409-05308-5PK CLIP(BLACK)2007-06-01~ |
09409-05308-5PK |
from US $1.60 |
||
|
25
|
25
77553-65D00-000 CLIP,SPLASH GUARD2007-06-01~ |
77553-65D00-000 |
US $2.08 |
||
|
26
|
26
09409-07308-5PK CLIP(BLACK)2007-06-01~ |
09409-07308-5PK |
from US $0.95 |
||
|
27
|
27
82110-78F10-000 LATCH,HOOD2007-06-01~ |
82110-78F10-000 |
US $46 |
||
|
28
|
28
02162-0616A-000 SCREW2007-06-01~ |
02162-0616A-000 |
from US $1.04 |
||
| replacement | |||||
|
28
|
28
02162-0616B-000 SCREWBolt, adjust 2007-06-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
29
|
29
82160-82H00-000 CABLE,HOOD LATCH RELEASE2007-06-01~ |
82160-82H00-000 |
US $25.39 |
||
|
30
|
30
09409-07308-5PK CLIP(BLACK)2007-06-01~ |
09409-07308-5PK |
from US $0.95 |
||
|
31
|
31
09403-04401-000 CLAMP2007-06-01~ |
09403-04401-000 |
US $9.90 |
||
|
32
|
32
58235-84F00-000 SEAL,HOOD LOCK X MBR2007-06-01~ |
58235-84F00-000 |
US $3.24 |
||
