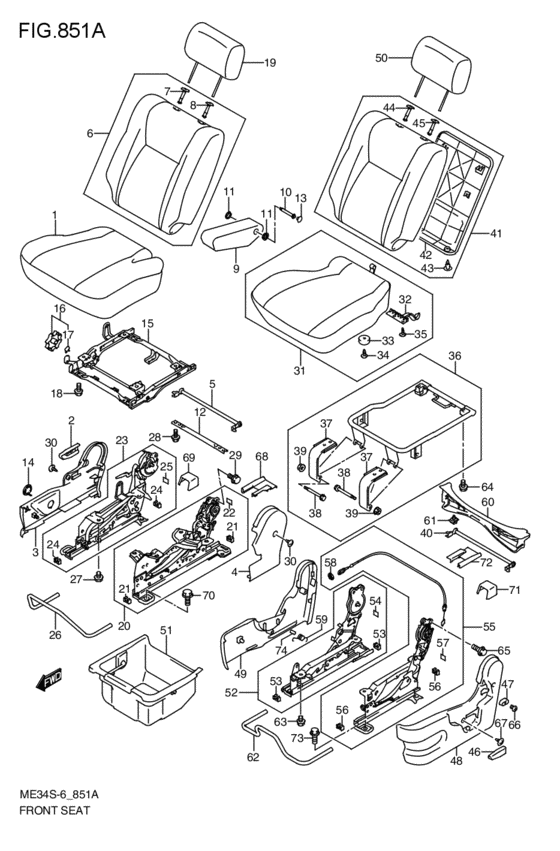

front seat (2007-06-01~) Diagram Suzuki OTHER MODELS
- Year
- 2007 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- XV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85101-82H50-FGY
クッションアッシ,フロント,ライト
XV:4WD; 2007-06-01~ |
85101-82H50-FGY |
— | ||
| replacement | |||||
|
1
|
1
85101-82H51-FGY
New Genuine Part
XV:4WD; 2007-06-01~ |
85101-82H51-FGY |
— | ||
|
2
|
2
85211-75H00-R8R
KNOB,RCLNG,R
2007-06-01~ |
85211-75H00-R8R |
— | ||
|
3
|
3
85221-76F02-R8R COVER,RECL OUTSIDE,R2007-06-01~ |
85221-76F02-R8R |
US $50.42 |
||
|
4
|
4
85241-78F32-R8R
COVER,RECL INSIDE,R
2007-06-01~ |
85241-78F32-R8R |
— | ||
|
5
|
5
85250-78F00-000 ROD,FR ADJUSTER2007-06-01~ |
85250-78F00-000 |
US $12.99 |
||
|
6
|
6
85301-82HD1-FGY
バックアッシ,フロント
XV; 2007-06-01~ |
85301-82HD1-FGY |
— | ||
| replacement | |||||
|
6
|
6
85301-82HD2-FGY
New Genuine Part
XV; 2007-06-01~ |
85301-82HD2-FGY |
— | ||
|
7
|
7
85341-65K10-P4Z
GUIDE,HEADRESTRAINT
2007-06-01~ |
85341-65K10-P4Z |
— | ||
| replacement | |||||
|
7
|
7
85341-65K11-P4Z GUIDE,HEADRESTRAINT2007-06-01~ |
85341-65K11-P4Z |
US $5.48 |
||
|
8
|
8
85840-65K10-P4Z
GUIDE,HEADRESTRAINT
2007-06-01~ |
85840-65K10-P4Z |
— | ||
| replacement | |||||
|
8
|
8
85840-65K11-P4Z GUIDE COMP,HEADRESTRAINT2007-06-01~ |
85840-65K11-P4Z |
US $6 |
||
|
9
|
9
85501-65KD0-V4K
アームレストアッシ,フロント,ライト(ブラック)
XV; 2007-06-01~ |
85501-65KD0-V4K |
— | ||
| replacement | |||||
|
9
|
9
85501-65KD2-V4K
New Genuine Part
XV; 2007-06-01~ |
85501-65KD2-V4K |
— | ||
|
10
|
10
85541-58J00-000
ボルト,アームレストヒンジ
2007-06-01~ |
85541-58J00-000 |
— | ||
| replacement | |||||
|
10
|
10
85541-58J01-000 BOLT,ARMREST HINGE2007-06-01~ |
85541-58J01-000 |
US $7.21 |
||
|
11
|
11
85544-58J00-000 BUSH,ARMREST2007-06-01~ |
85544-58J00-000 |
US $2.17 |
||
|
12
|
12
85771-78F00-000
MEMBER,FR SEAT
XM,XV; 2007-06-01~ |
85771-78F00-000 |
— | ||
|
13
|
13
85542-65KD0-P4Z CAP,ARMREST2007-06-01~ |
85542-65KD0-P4Z |
US $3.09 |
||
|
14
|
14
85223-58J00-R8R
キャップ,リクライニング,アウトサイド(ブラウン)
XV; 2007-06-01~ |
85223-58J00-R8R |
— | ||
|
19
|
19
86401-82H00-V4K
ヘッドレストレイントアッシ(ブラック)
XV; 2007-06-01~ |
86401-82H00-V4K |
— | ||
|
20
|
20
86601-82H11-000
アジャスタアッシ,フロントインサイド,ライト
XV; 2007-06-01~ |
86601-82H11-000 |
— | ||
|
21
|
21
86652-76F00-000 COVER,LOWER RAIL END2007-06-01~ |
86652-76F00-000 |
US $3.50 |
||
|
22
|
22
86654-76F00-000
COVER,UPPER RAIL END
2007-06-01~ |
86654-76F00-000 |
— | ||
|
23
|
23
86603-78F11-000 ADJUSTER ASSY,FR OUTSIDE,RXV; 2007-06-01~ |
86603-78F11-000 |
US $268.64 |
||
|
24
|
24
86652-76F00-000 COVER,LOWER RAIL END2007-06-01~ |
86652-76F00-000 |
US $3.50 |
||
|
25
|
25
86654-76F00-000
COVER,UPPER RAIL END
2007-06-01~ |
86654-76F00-000 |
— | ||
|
26
|
26
86691-78F00-000 HANDLE,FR ADJ,R2007-06-01~ |
86691-78F00-000 |
US $31.28 |
||
|
27
|
27
01550-0812A-000 BOLT2007-06-01~ |
01550-0812A-000 |
from US $0.91 |
||
|
28
|
28
01550-0816A-000 BOLTBolt, rear XM,XV; 2007-06-01~ |
01550-0816A-000 |
from US $0.91 |
||
|
29
|
29
01550-1020A-000 BOLTBolt, bal sprocket 2007-06-01~ |
01550-1020A-000 |
from US $0.96 |
||
|
30
|
30
03241-0512A-000 SCREW2007-06-01~ |
03241-0512A-000 |
from US $0.68 |
||
|
31
|
31
85102-82HA0-FGY
クッションアッシ,フロント,レフト
XV; 2007-06-01~ |
85102-82HA0-FGY |
— | ||
| replacement | |||||
|
31
|
31
85102-82HA1-FGY
New Genuine Part
XV; 2007-06-01~ |
85102-82HA1-FGY |
— | ||
|
32
|
32
85970-75F00-000 LOCK,FR CUSH2007-06-01~ |
85970-75F00-000 |
US $45.60 |
||
|
33
|
33
87196-83000-000 CUSHION2007-06-01~ |
87196-83000-000 |
US $3.09 |
||
|
34
|
34
03241-0512A-000 SCREW2007-06-01~ |
03241-0512A-000 |
from US $0.68 |
||
|
35
|
35
03241-0512A-000 SCREW2007-06-01~ |
03241-0512A-000 |
from US $0.68 |
||
|
36
|
36
85760-78FA0-000
MEMBER ASSY,FR CONV,L
2007-06-01~ |
85760-78FA0-000 |
— | ||
|
37
|
37
85762-76FA0-000 MAIL,MBR OUT2007-06-01~ |
85762-76FA0-000 |
US $14.83 |
||
|
38
|
38
85763-76FA0-000
Bolt,member hinge
2007-06-01~ |
85763-76FA0-000 |
— | ||
| replacement | |||||
|
38
|
38
85763-76FA1-000 BOLT,MEMBER HINGE2007-06-01~ |
85763-76FA1-000 |
US $3.42 |
||
|
39
|
39
08316-2006A-000 NUT2007-06-01~ |
08316-2006A-000 |
from US $0.76 |
||
|
40
|
40
85250-78FA0-000
ROD,FR ADJUSTER
2007-06-01~ |
85250-78FA0-000 |
— | ||
|
41
|
41
85302-82HK1-FGY
バックアッシ,フロント,レフト
XV; 2007-06-01~ |
85302-82HK1-FGY |
— | ||
| replacement | |||||
|
41
|
41
85302-82HK2-FGY
New Genuine Part
XV; 2007-06-01~ |
85302-82HK2-FGY |
— | ||
|
42
|
42
85890-76FA0-R8R BOARD,FR BACK2007-06-01~ |
85890-76FA0-R8R |
US $41.22 |
||
|
43
|
43
85891-76FA0-R8R CLIP,BOARD2007-06-01~ |
85891-76FA0-R8R |
US $2.94 |
||
|
44
|
44
85341-65K10-P4Z
GUIDE,HEADRESTRAINT
2007-06-01~ |
85341-65K10-P4Z |
— | ||
| replacement | |||||
|
44
|
44
85341-65K11-P4Z GUIDE,HEADRESTRAINT2007-06-01~ |
85341-65K11-P4Z |
US $5.48 |
||
|
45
|
45
85840-65K10-P4Z
GUIDE,HEADRESTRAINT
2007-06-01~ |
85840-65K10-P4Z |
— | ||
| replacement | |||||
|
45
|
45
85840-65K11-P4Z GUIDE COMP,HEADRESTRAINT2007-06-01~ |
85840-65K11-P4Z |
US $6 |
||
|
46
|
46
85711-75H00-R8R
KNOB,RECL,L
2007-06-01~ |
85711-75H00-R8R |
— | ||
|
47
|
47
85713-76FA0-R8R
KNOB,RECL STOPPER
2007-06-01~ |
85713-76FA0-R8R |
— | ||
|
48
|
48
85721-78FA2-R8R
COVER,RECL OUTSIDE,L
2007-06-01~ |
85721-78FA2-R8R |
— | ||
|
49
|
49
85741-78FA2-R8R
COVER,RECL INSIDE,L
2007-06-01~ |
85741-78FA2-R8R |
— | ||
|
50
|
50
86401-82H00-V4K
ヘッドレストレイントアッシ(ブラック)
XV; 2007-06-01~ |
86401-82H00-V4K |
— | ||
|
51
|
51
86510-78FA0-000 BOX ASSY,CONV2007-06-01~ |
86510-78FA0-000 |
US $75.81 |
||
|
52
|
52
86602-78FA1-000 ADJUSTER ASSY,FR INSIDE,L2007-06-01~ |
86602-78FA1-000 |
US $287.04 |
||
|
53
|
53
86652-76F00-000 COVER,LOWER RAIL END2007-06-01~ |
86652-76F00-000 |
US $3.50 |
||
|
54
|
54
86654-76F00-000
COVER,UPPER RAIL END
2007-06-01~ |
86654-76F00-000 |
— | ||
|
55
|
55
86604-78FA0-000 ADJUSTER ASSY,FR OUTSIDE,L2007-06-01~ |
86604-78FA0-000 |
US $351.44 |
||
|
56
|
56
86652-76F00-000 COVER,LOWER RAIL END2007-06-01~ |
86652-76F00-000 |
US $3.50 |
||
|
57
|
57
86654-76F00-000
COVER,UPPER RAIL END
2007-06-01~ |
86654-76F00-000 |
— | ||
|
58
|
58
85752-78FA0-000
NUT,ADJUSTER CABLE
2007-06-01~ |
85752-78FA0-000 |
— | ||
|
59
|
59
86856-76FA0-000 SPRING,FR BUCKLE2007-06-01~ |
86856-76FA0-000 |
US $4.20 |
||
|
60
|
60
85785-78FA0-R8R
COVER,RECL CABLE RR
2007-06-01~ |
85785-78FA0-R8R |
— | ||
|
61
|
61
75411-76G00-000 CLAMP,CABLE2007-06-01~ |
75411-76G00-000 |
US $2.39 |
||
|
62
|
62
86891-78FA0-000 HANDLE,FR ADJUSTER,L2007-06-01~ |
86891-78FA0-000 |
US $34.41 |
||
|
63
|
63
01550-0812A-000 BOLT2007-06-01~ |
01550-0812A-000 |
from US $0.91 |
||
|
64
|
64
01550-0816A-000 BOLTBolt, rear 2007-06-01~ |
01550-0816A-000 |
from US $0.91 |
||
|
65
|
65
01550-1020A-000 BOLTBolt, bal sprocket 2007-06-01~ |
01550-1020A-000 |
from US $0.96 |
||
|
66
|
66
03241-0512A-000 SCREW2007-06-01~ |
03241-0512A-000 |
from US $0.68 |
||
|
67
|
67
03241-0512A-000 SCREW2007-06-01~ |
03241-0512A-000 |
from US $0.68 |
||
|
68
|
68
85495-73H00-R8R
カバー,リヤインサイド,ライト(ブラウン)
2007-06-01~ |
85495-73H00-R8R |
— | ||
| replacement | |||||
|
68
|
68
85495-73H10-R8R COVER,RR INSIDE,R2007-06-01~ |
85495-73H10-R8R |
US $7.03 |
||
|
69
|
69
85496-76F00-R8R
COVER,RR OUTSIDE
2007-06-01~ |
85496-76F00-R8R |
— | ||
|
70
|
70
01551-1025A-000 Bolt2007-06-01~ |
01551-1025A-000 |
US $1.12 |
||
|
71
|
71
85496-76F00-R8R
COVER,RR OUTSIDE
2007-06-01~ |
85496-76F00-R8R |
— | ||
|
72
|
72
85995-73H00-R8R
カバー,リヤインサイド,レフト(ブラウン)
2007-06-01~ |
85995-73H00-R8R |
— | ||
| replacement | |||||
|
72
|
72
85995-73H10-R8R
COVER,RR INSIDE,L
2007-06-01~ |
85995-73H10-R8R |
— | ||
|
73
|
73
01551-1025A-000 Bolt2007-06-01~ |
01551-1025A-000 |
US $1.12 |
||
|
74
|
74
86857-76FA0-000 COLLAR,FR BUCKLE SPRING2007-06-01~ |
86857-76FA0-000 |
US $3.13 |
||
