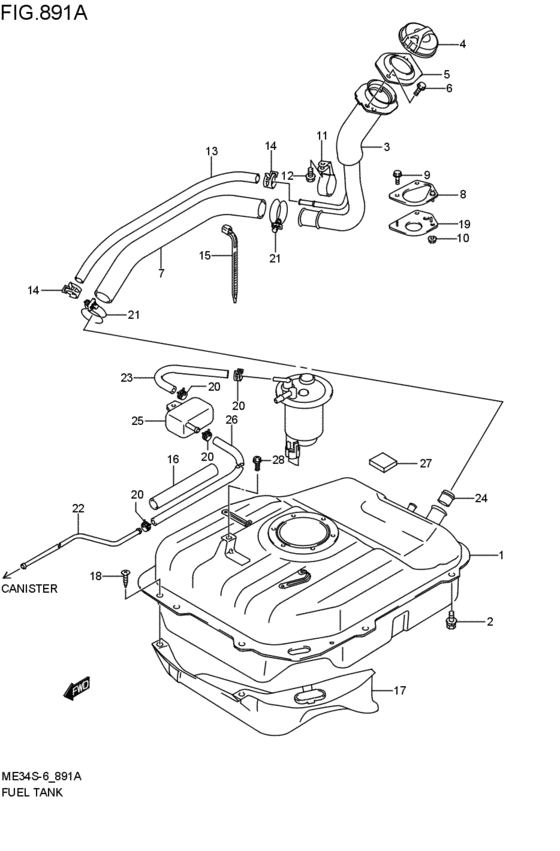

fuel tank (2007-06-01~) Diagram Suzuki OTHER MODELS
- Year
- 2007 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- XV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
89101-82H50-000
タンクアッシ,フューエル
2007-06-01~ |
89101-82H50-000 |
— | ||
| replacement | |||||
|
1
|
1
89101-82H51-000 TANK ASSY,FUEL2007-06-01~ |
89101-82H51-000 |
US $404.80 |
||
|
2
|
2
09118-08161-000 BOLT(8X25)2007-06-01~ |
09118-08161-000 |
US $1.76 |
||
|
3
|
3
89210-82H00-000
ネック,フューエルフィラ
2007-06-01~ |
89210-82H00-000 |
— | ||
| replacement | |||||
|
3
|
3
89210-82H30-000 NECK,FUEL FILLER2007-06-01~ |
89210-82H30-000 |
US $87.95 |
||
|
4
|
4
89260-73H00-000 CAP ASSY,FUEL FILLER2007-06-01~ |
89260-73H00-000 |
from US $19.82 |
||
|
5
|
5
89285-73H00-000 PACKING,FUEL FILLER2007-06-01~ |
89285-73H00-000 |
US $7.07 |
||
|
6
|
6
09116-05014-000 BOLT(5X20)2007-06-01~ |
09116-05014-000 |
US $1.82 |
||
|
7
|
7
89241-82H00-000 HOSE,FUEL TANK FILLER2007-06-01~ |
89241-82H00-000 |
US $41.58 |
||
|
8
|
8
89291-75F00-000 BRACKET,FUEL FILLER2007-06-01~ |
89291-75F00-000 |
US $25.60 |
||
|
9
|
9
02162-0616A-000 SCREW2007-06-01~ |
02162-0616A-000 |
from US $1.04 |
||
| replacement | |||||
|
9
|
9
02162-0616B-000 SCREWBolt, adjust 2007-06-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
10
|
10
08316-1006A-000 NUT2007-06-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
11
|
11
89280-82H00-000
Clamp comp,fuel filler neck
2007-06-01~ |
89280-82H00-000 |
— | ||
| replacement | |||||
|
11
|
11
89280-82H0V-000 CLAMP,FUEL FILLER NECK2007-06-01~ |
89280-82H0V-000 |
US $9.64 |
||
|
12
|
12
09116-06205-000 BOLT(6X16)2007-06-01~ |
09116-06205-000 |
from US $0.96 |
||
|
13
|
13
09355-11188-00B HOSE(11X17.8X2000)L:2000>520; 2007-06-01~ |
09355-11188-00B |
US $23 |
||
|
14
|
14
09401-16407-000 CLIP2007-06-01~ |
09401-16407-000 |
from US $1.60 |
||
|
15
|
15
09407-19401-000 CLAMP(L:190)2007-06-01~ |
09407-19401-000 |
from US $4.17 |
||
|
16
|
16
89489-76G10-000 PROTECTOR,VALVE OUTLET HOSE2007-06-01~ |
89489-76G10-000 |
US $4.67 |
||
|
17
|
17
89191-76G01-000 COVER,FUEL TANK,LOWER2007-06-01~ |
89191-76G01-000 |
US $27.42 |
||
|
18
|
18
03541-0616A-000 SCREW2007-06-01~ |
03541-0616A-000 |
from US $0.64 |
||
|
19
|
19
89282-75F10-000 SEAL,FUEL FILLER NECK2007-06-01~ |
89282-75F10-000 |
US $13.28 |
||
|
20
|
20
09401-11415-000 CLIP2007-06-01~ |
09401-11415-000 |
from US $1.06 |
||
|
21
|
21
09400-45311-000 CLAMP2007-06-01~ |
09400-45311-000 |
US $1.92 |
||
|
22
|
22
89483-82H00-000
パイプ,フューエルエバポ
2007-06-01~ |
89483-82H00-000 |
— | ||
| replacement | |||||
|
22
|
22
89483-82H01-000 PIPE,FUEL EVAP2007-06-01~ |
89483-82H01-000 |
US $28.70 |
||
|
23
|
23
89486-82H10-000 HOSE,FCV TO SEPARATOR2007-06-01~ |
89486-82H10-000 |
US $9.72 |
||
|
24
|
24
89280-77A00-000 VALVE,FUEL TANK INLET2007-06-01~ |
89280-77A00-000 |
US $8.32 |
||
|
25
|
25
89411-82H00-000 SEPARATOR,FUEL AND VAPOR2007-06-01~ |
89411-82H00-000 |
US $24.66 |
||
|
26
|
26
09355-54128-600
Hose,5.4x12.2x600
L:600>420; 2007-06-01~ |
09355-54128-600 |
— | ||
| replacement | |||||
|
26
|
26
09355-56128-600 HOSE(5.6X12.4X600)L:600>420; 2007-06-01~ |
09355-56128-600 |
US $8.64 |
||
|
27
|
27
89521-60B01-000 PAD,FUEL TANK2007-06-01~ |
89521-60B01-000 |
US $8.98 |
||
|
28
|
28
02162-0610A-000 SCREW2007-06-01~ |
02162-0610A-000 |
from US $0.64 |
||
