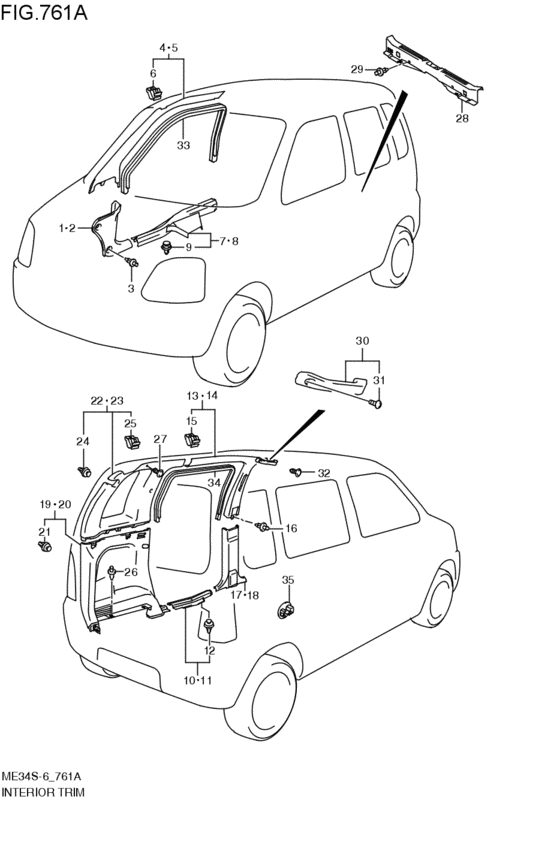

i trim interior (2007-06-01~) Diagram Suzuki OTHER MODELS
- Year
- 2007 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- XV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
76120-78F00-R8R TRIM,DASH SIDE,R2007-06-01~ |
76120-78F00-R8R |
US $21.16 |
||
|
2
|
2
76130-78F00-R8R
TRIM,DASH SIDE,L
2007-06-01~ |
76130-78F00-R8R |
— | ||
|
3
|
3
09409-07308-P4Z CLIP(GRAY)2007-06-01~ |
09409-07308-P4Z |
US $1.76 |
||
|
4
|
4
76140-78F00-6GS TRIM,FR PILLAR INNER,R2007-06-01~ |
76140-78F00-6GS |
US $42.69 |
||
|
5
|
5
76150-78F00-6GS TRIM,FR PILLAR INNER,L2007-06-01~ |
76150-78F00-6GS |
US $42.69 |
||
|
6
|
6
09409-10308-000 CLIPライト:4,レフト:3; 2007-06-01~ |
09409-10308-000 |
US $1.60 |
||
|
7
|
7
76161-78F00-R8R SCUFF,SIDE SILL FR,R2007-06-01~ |
76161-78F00-R8R |
US $23 |
||
|
8
|
8
76171-78F00-R8R SCUFF,SIDE SILL FR,L2007-06-01~ |
76171-78F00-R8R |
US $23 |
||
|
9
|
9
09409-08331-000 CLIP2007-06-01~ |
09409-08331-000 |
from US $1.24 |
||
|
10
|
10
76181-82H00-R8R SCUFF,SIDE SILL RR,R2007-06-01~ |
76181-82H00-R8R |
US $18.18 |
||
|
11
|
11
76191-82H00-R8R SCUFF,SIDE SILL RR,L2007-06-01~ |
76191-82H00-R8R |
US $18.18 |
||
|
12
|
12
09409-08331-000 CLIP2007-06-01~ |
09409-08331-000 |
from US $1.24 |
||
|
13
|
13
76232-76F10-6GS TRIM,CTR PLR INR UPR,R2007-06-01~ |
76232-76F10-6GS |
US $39.38 |
||
|
14
|
14
76242-76F10-6GS
TRIM,CTR PLR INR UPR,L
2007-06-01~ |
76242-76F10-6GS |
— | ||
|
15
|
15
09409-10308-000 CLIP2007-06-01~ |
09409-10308-000 |
US $1.60 |
||
|
16
|
16
09409-07308-P4Z CLIP(GRAY)2007-06-01~ |
09409-07308-P4Z |
US $1.76 |
||
|
17
|
17
76231-78F01-R8R
TRIM,CTR PLR INR LWR,R
2007-06-01~ |
76231-78F01-R8R |
— | ||
|
18
|
18
76241-78F01-R8R TRIM,CTR PLR INR LWR,L2007-06-01~ |
76241-78F01-R8R |
US $41.58 |
||
|
19
|
19
76211-82H00-R8R TRIM,QTR INNER,R2007-06-01~ |
76211-82H00-R8R |
US $88.69 |
||
|
20
|
20
76221-82H00-R8R TRIM,QTR INNER,L2007-06-01~ |
76221-82H00-R8R |
US $88.69 |
||
|
21
|
21
76216-76F20-000 CLIP,QTR TRIM2007-06-01~ |
76216-76F20-000 |
from US $1.91 |
||
|
22
|
22
76251-76F00-6GS TRIM,QTR WINDOW,R2007-06-01~ |
76251-76F00-6GS |
US $73.60 |
||
|
23
|
23
76261-76F00-6GS TRIM,QTR WINDOW,L2007-06-01~ |
76261-76F00-6GS |
US $73.60 |
||
|
24
|
24
76216-76F20-000 CLIP,QTR TRIM2007-06-01~ |
76216-76F20-000 |
from US $1.91 |
||
|
25
|
25
09409-10308-000 CLIP2007-06-01~ |
09409-10308-000 |
US $1.60 |
||
|
26
|
26
09409-07308-P4Z CLIP(GRAY)2007-06-01~ |
09409-07308-P4Z |
US $1.76 |
||
|
27
|
27
09409-05307-6GS CLIP(GRAY)2007-06-01~ |
09409-05307-6GS |
US $1.60 |
||
|
28
|
28
76271-82H00-R8R TRIM,TAIL END MEMBER2007-06-01~ |
76271-82H00-R8R |
US $36.80 |
||
|
29
|
29
09409-07308-P4Z CLIP(GRAY)2007-06-01~ |
09409-07308-P4Z |
US $1.76 |
||
|
30
|
30
76400-70820-6GS GRIP,ASST2007-06-01~ |
76400-70820-6GS |
US $12.32 |
||
|
31
|
31
09139-06104-000 SCREW(6X26)2007-06-01~ |
09139-06104-000 |
US $14 |
||
|
32
|
32
09409-05307-6GS CLIP(GRAY)2007-06-01~ |
09409-05307-6GS |
US $1.60 |
||
|
33
|
33
76291-78F01-000 TRIM,FR DOOR OPENING2007-06-01~ |
76291-78F01-000 |
US $39.01 |
||
|
34
|
34
76292-78F00-000
TRIM,RR DOOR OPENING
2007-06-01~ |
76292-78F00-000 |
— | ||
|
35
|
35
39238-76F00-R8R CAP,SOCKET HOLEライト; 2007-06-01~ |
39238-76F00-R8R |
US $2.80 |
