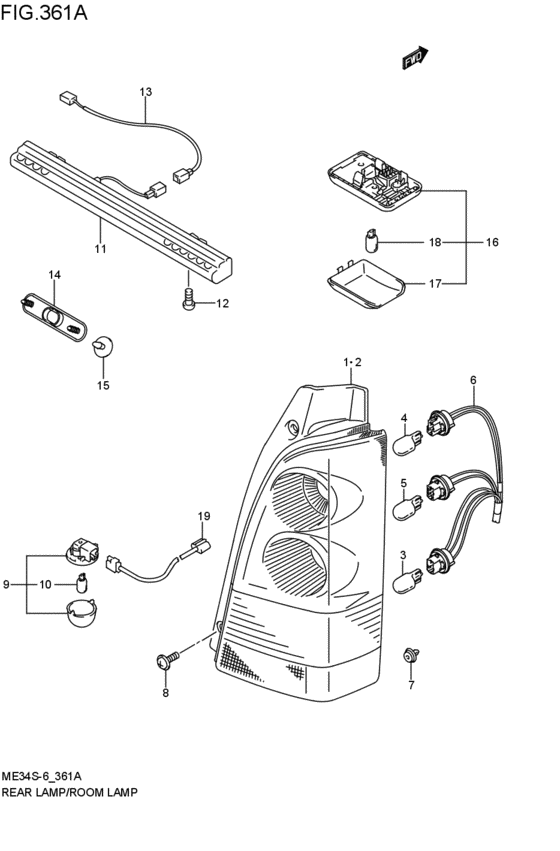

rear lamp / ル - ムランプ (2007-06-01~) Diagram Suzuki OTHER MODELS
- Year
- 2007 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- XV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35650-82H02-000 LAMP UNIT,RR COMB,R2007-06-01~ |
35650-82H02-000 |
US $185.84 |
||
|
2
|
2
35670-82H02-000 LAMP UNIT,RR COMB,L2007-06-01~ |
35670-82H02-000 |
US $185.84 |
||
|
3
|
3
09471-12192-000 BULB(12V21/5W)2007-06-01~ |
09471-12192-000 |
from US $3.19 |
||
|
4
|
4
09471-12202-000 BULB(12V21W/WY21W,AMBER)2007-06-01~ |
09471-12202-000 |
from US $5.76 |
||
|
5
|
5
09471-12191-000 BULB(12V21W)2007-06-01~ |
09471-12191-000 |
from US $3.87 |
||
|
6
|
6
35658-82H00-000 SOCKET&CORD,RR COMB2007-06-01~ |
35658-82H00-000 |
US $43.06 |
||
|
7
|
7
71812-78F00-000 CLIP2007-06-01~ |
71812-78F00-000 |
from US $1.53 |
||
|
8
|
8
02162-0616B-000 SCREWBolt, adjust 2007-06-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
9
|
9
35910-75F12-000 Lamp assy,license2007-06-01~ |
35910-75F12-000 |
from US $12.47 |
||
|
10
|
10
09471-12081-000
Bulb (12v,5w)
TOKAI DENSO; 2007-06-01~ |
09471-12081-000 |
— | ||
| replacement | |||||
|
10
|
10
09471-12216-000 BULB(12V5W)Bulb (12v5w) TOKAI DENSO; 2007-06-01~ |
09471-12216-000 |
from US $2.84 |
||
|
11
|
11
35810-75F40-000 LAMP ASSY,HIGH MT STOP2007-06-01~ |
35810-75F40-000 |
US $168.91 |
||
|
12
|
12
02112-7516A-000 SCREWScrew, gear shift 2007-06-01~ |
02112-7516A-000 |
from US $0.96 |
||
|
13
|
13
36842-75F00-000 WIRE,HIGH MOUNT STOP LAMP2007-06-01~ |
36842-75F00-000 |
US $10.78 |
||
|
14
|
14
35819-72J00-000 COVER,HIGH MT STOP LAMP HOLE2007-06-01~ |
35819-72J00-000 |
US $2.58 |
||
|
15
|
15
09250-05011-5PK CAP(OD:12)Plug 2007-06-01~ |
09250-05011-5PK |
from US $2.21 |
||
|
16
|
16
36210-74F02-6GS LAMP ASSY,RR ROOM2007-06-01~ |
36210-74F02-6GS |
from US $20.97 |
||
|
17
|
17
36212-74F00-000 LENS,ROOM LAMP2007-06-01~ |
36212-74F00-000 |
US $4.05 |
||
|
18
|
18
09471-12081-000
Bulb (12v,5w)
TOKAI DENSO; 2007-06-01~ |
09471-12081-000 |
— | ||
| replacement | |||||
|
18
|
18
09471-12216-000 BULB(12V5W)Bulb (12v5w) TOKAI DENSO; 2007-06-01~ |
09471-12216-000 |
from US $2.84 |
||
|
19
|
19
36843-78F00-000 WIRE,LICENSE LAMP2007-06-01~ |
36843-78F00-000 |
US $14.87 |
||
