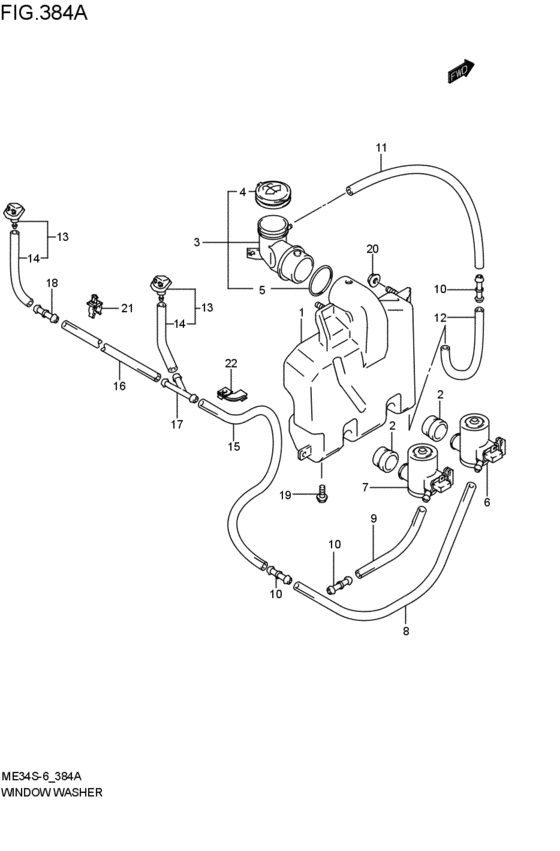

ウインドウオッシャ (2007-06-01~) Diagram Suzuki OTHER MODELS
- Year
- 2007 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- XV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38450-78F10-000 TANK ASSY,WASHER2007-06-01~ |
38450-78F10-000 |
US $69.55 |
||
|
2
|
2
38453-78F00-000 GROMMET,WASHER TANK2007-06-01~ |
38453-78F00-000 |
US $2.80 |
||
|
3
|
3
38402-78F00-000 PIPE ASSY,WASHER INLET2007-06-01~ |
38402-78F00-000 |
US $13.25 |
||
|
4
|
4
38452-70B00-000 CAP,WASHER TANK2007-06-01~ |
38452-70B00-000 |
from US $2.56 |
||
|
5
|
5
38454-78F00-000 O-RING,INLET PIPE2007-06-01~ |
38454-78F00-000 |
US $2.47 |
||
|
6
|
6
38410-70B10-000 PUMP ASSY,WASHER RRフロント; 2007-06-01~ |
38410-70B10-000 |
US $115.92 |
||
|
7
|
7
38410-70B10-000 PUMP ASSY,WASHER RRリヤ; 2007-06-01~ |
38410-70B10-000 |
US $115.92 |
||
|
8
|
8
38491-61A10-000 HOSE,WASHER L:2100L:2100>520; 2007-06-01~ |
38491-61A10-000 |
US $5.44 |
||
|
9
|
9
38491-61A10-000 HOSE,WASHER L:2100L:2100>190; 2007-06-01~ |
38491-61A10-000 |
US $5.44 |
||
|
10
|
10
38496-56B00-000 CONNECTOR2007-06-01~ |
38496-56B00-000 |
from US $1.60 |
||
|
11
|
11
38491-61A00-000 HOSE,WASHER L:1300Hose, washer (l:1300->80) L:1300>240; 2007-06-01~ |
38491-61A00-000 |
US $5.12 |
||
|
12
|
12
38459-50J00-000 HOSE,WASHER L:810L:810!>30; 2007-06-01~ |
38459-50J00-000 |
US $14.40 |
||
|
13
|
13
38480-78F10-000 NOZZLE,WASHER2007-06-01~ |
38480-78F10-000 |
from US $12.44 |
||
|
14
|
14
38491-61A00-000 HOSE,WASHER L:1300Hose, washer (l:1300->80) L:1300>115; 2007-06-01~ |
38491-61A00-000 |
US $5.12 |
||
|
15
|
15
38491-61A10-000 HOSE,WASHER L:2100L:2100>600; 2007-06-01~ |
38491-61A10-000 |
US $5.44 |
||
|
16
|
16
38491-61A10-000 HOSE,WASHER L:2100L:2100>560; 2007-06-01~ |
38491-61A10-000 |
US $5.44 |
||
|
17
|
17
38496-71311-000 CONNECTOR,THREE WAY2007-06-01~ |
38496-71311-000 |
US $4.16 |
||
|
18
|
18
38833-79501-000 VALVE,WASHER HOSE2007-06-01~ |
38833-79501-000 |
from US $3.17 |
||
|
19
|
19
02162-0612A-000 SCREWBolt, bracket 2007-06-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
20
|
20
08316-1006A-000 NUT2007-06-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
21
|
21
09403-07330-000 CLAMP2007-06-01~ |
09403-07330-000 |
US $14.40 |
||
|
22
|
22
09403-07306-000 CLAMPClamp 2007-06-01~ |
09403-07306-000 |
from US $2.56 |
