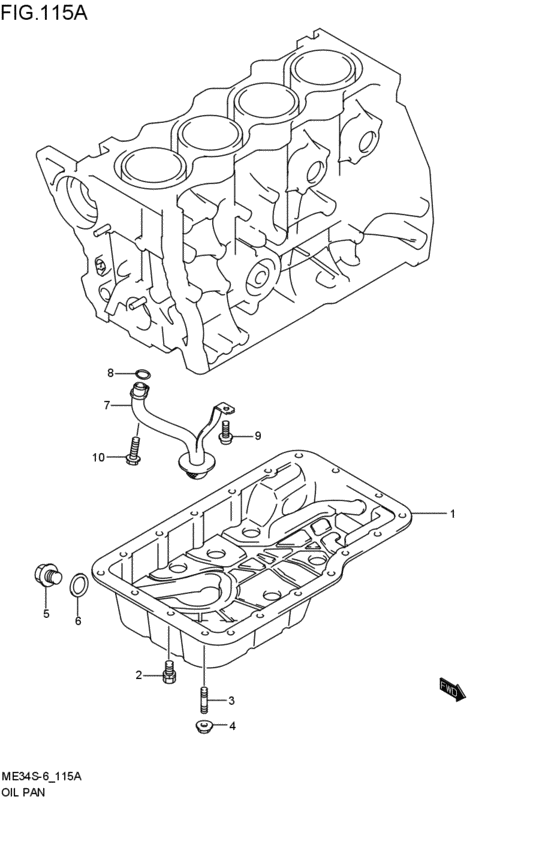

oil pan (2007-06-01~) Diagram Suzuki OTHER MODELS
- Year
- 2007 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- XV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11510-69G03-000 PAN,OIL2007-06-01~ |
11510-69G03-000 |
from US $133.13 |
||
|
2
|
2
09117-06061-000 BOLT(6X16)2007-06-01~ |
09117-06061-000 |
from US $1.13 |
||
|
3
|
3
01421-0612A-000 BOLT,STUD2007-06-01~ |
01421-0612A-000 |
from US $1.12 |
||
|
4
|
4
09159-06077-000 NUT2007-06-01~ |
09159-06077-000 |
US $1.28 |
||
|
5
|
5
09247-14044-000 DRAIN PLUG (M14x1.5)2007-06-01~ |
09247-14044-000 |
from US $1.33 |
||
|
6
|
6
09168-14015-000 GASKET(14X20X1.5)Gasket, oil hose union 2007-06-01~ |
09168-14015-000 |
from US $1.17 |
||
|
7
|
7
16520-69G03-000
Strainer,oil pump
2007-06-01~ |
16520-69G03-000 |
— | ||
| replacement | |||||
|
7
|
7
16520-69G04-000 STRAINER,OIL PUMP2007-06-01~ |
16520-69G04-000 |
US $32.20 |
||
|
8
|
8
09280-17002-000 O RING(D:2.4,ID:16.8)O ring (d:2.4,id:16.8) 2007-06-01~ |
09280-17002-000 |
from US $2.56 |
||
|
9
|
9
07120-0612A-000 BOLTBolt 2007-06-01~ |
07120-0612A-000 |
from US $1.78 |
||
|
10
|
10
07120-0616A-000 BOLT2007-06-01~ |
07120-0616A-000 |
from US $4 |
||
