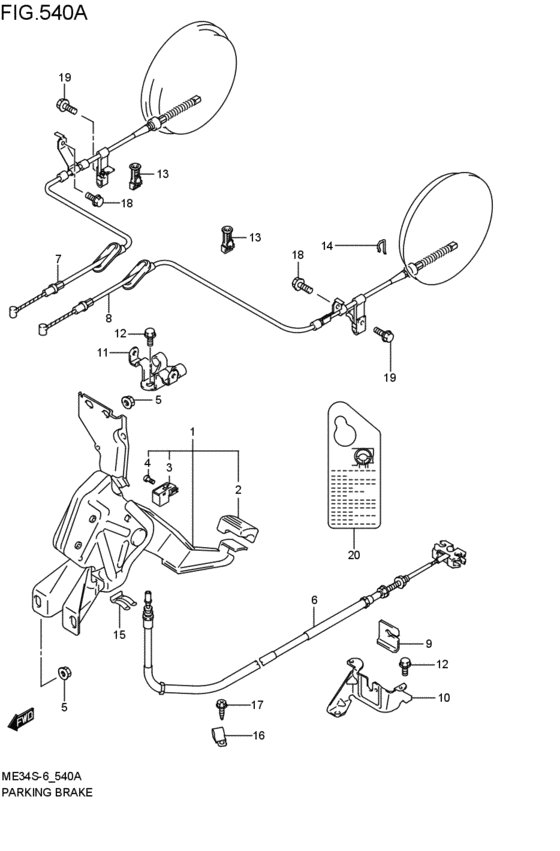

parking brakes (2007-06-01~) Diagram Suzuki OTHER MODELS
- Year
- 2007 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- XV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54100-76F50-000 PEDAL ASSY,PARKING BRAKE2007-06-01~ |
54100-76F50-000 |
US $189.52 |
||
|
2
|
2
54112-74F00-000 PAD,PARKING PEDAL2007-06-01~ |
54112-74F00-000 |
US $12.59 |
||
|
3
|
3
37940-76F50-000 SWITCH ASSY,PARKING BRAKE2007-06-01~ |
37940-76F50-000 |
US $14.87 |
||
|
4
|
4
54115-76F50-000 SCREW2007-06-01~ |
54115-76F50-000 |
US $5.04 |
||
|
5
|
5
09159-08127-000 NUT2007-06-01~ |
09159-08127-000 |
US $9.90 |
||
|
6
|
6
54410-76F51-000 CABLE,PARKING BK,FR2007-06-01~ |
54410-76F51-000 |
from US $56.67 |
||
|
7
|
7
54401-82H01-000
Cable,parking brake,r
2007-06-01~ |
54401-82H01-000 |
— | ||
| replacement | |||||
|
7
|
7
54401-82H02-000 CABLE,PARKING BRAKE,R2007-06-01~ |
54401-82H02-000 |
US $72.50 |
||
|
8
|
8
54402-82H01-000
Cable,parking brake,l
2007-06-01~ |
54402-82H01-000 |
— | ||
| replacement | |||||
|
8
|
8
54402-82H02-000 CABLE,PARKING BRAKE,L2007-06-01~ |
54402-82H02-000 |
US $72.50 |
||
|
9
|
9
54495-70B30-000 STRENGTH,PARKING CABLE2007-06-01~ |
54495-70B30-000 |
US $5.63 |
||
|
10
|
10
54495-76F50-000 BRACKET,PARKING BRAKE CABLE,FR2007-06-01~ |
54495-76F50-000 |
US $17.81 |
||
|
11
|
11
54495-76G10-000 BRACKET,PARKING CABLE2007-06-01~ |
54495-76G10-000 |
US $9.35 |
||
|
12
|
12
01551-0816C-000 Bolt2007-06-01~ |
01551-0816C-000 |
from US $0.96 |
||
|
13
|
13
54415-72J00-000 CLAMP,PARKING CABLE2007-06-01~ |
54415-72J00-000 |
US $2.69 |
||
|
14
|
14
53771-70G00-000 CLIP,PARKING CABLE2007-06-01~ |
53771-70G00-000 |
US $2.61 |
||
|
15
|
15
09383-08007-000 CLIP2007-06-01~ |
09383-08007-000 |
US $20.60 |
||
|
16
|
16
09403-12402-000 CLAMP(ID:12)Collier (id:12) 2007-06-01~ |
09403-12402-000 |
US $13.20 |
||
|
17
|
17
09132-06008-000 SCREW(6X12)2007-06-01~ |
09132-06008-000 |
US $12.90 |
||
|
18
|
18
01551-0816C-000 Bolt2007-06-01~ |
01551-0816C-000 |
from US $0.96 |
||
|
19
|
19
02162-0620C-000 SCREW2007-06-01~ |
02162-0620C-000 |
from US $0.80 |
||
|
20
|
20
54851-74F02-000 TAG,PARKING BRAKE WARNING2007-06-01~ |
54851-74F02-000 |
US $5.30 |
||
