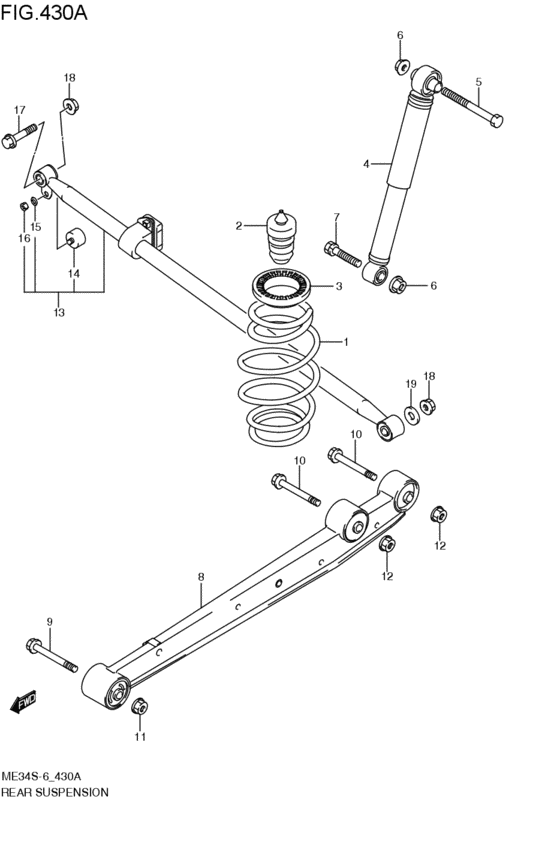

rear suspension (2007-06-01~) Diagram Suzuki OTHER MODELS
- Year
- 2007 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- XV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41311-82H00-000 SPRING,REAR COILXV,XG; 2007-06-01~ |
41311-82H00-000 |
US $105.62 |
||
|
2
|
2
42251-73H00-000 STOPPER,RR BUMP2007-06-01~ |
42251-73H00-000 |
US $18.18 |
||
|
3
|
3
41341-79A00-000 SEAT,REAR SPRING UPPER2007-06-01~ |
41341-79A00-000 |
US $19.01 |
||
|
4
|
4
41800-82H00-000 ABSORBER ASSY,RR SHOCKXV,XG; 2007-06-01~ |
41800-82H00-000 |
US $123.65 |
||
|
5
|
5
41981-83H00-000 BOLT,RR SHK ABSORBER UPR2007-06-01~ |
41981-83H00-000 |
US $6.81 |
||
|
6
|
6
09159-12068-000 NUT2007-06-01~ |
09159-12068-000 |
from US $1.76 |
||
|
7
|
7
41982-82H01-000 BOLT,RR SHK ABSORBER LWR2007-06-01~ |
41982-82H01-000 |
US $5.85 |
||
|
8
|
8
46200-70H00-000 ARM ASSY,RR TRAILING2007-06-01~ |
46200-70H00-000 |
US $171.86 |
||
|
9
|
9
09103-12044-000 BOLT(12X87)2007-06-01~ |
09103-12044-000 |
from US $2.48 |
||
|
10
|
10
09103-12044-000 BOLT(12X87)2007-06-01~ |
09103-12044-000 |
from US $2.48 |
||
|
11
|
11
09159-12068-000 NUT2007-06-01~ |
09159-12068-000 |
from US $1.76 |
||
|
12
|
12
09159-12068-000 NUT2007-06-01~ |
09159-12068-000 |
from US $1.76 |
||
|
13
|
13
46300-82HA0-000
ロッドアッシ,ラテラル
4WD; 2007-06-01~ |
46300-82HA0-000 |
— | ||
|
14
|
14
46315-80GA0-000 DAMPER,L MTG4WD; 2007-06-01~ |
46315-80GA0-000 |
US $47.47 |
||
|
15
|
15
08310-0008A-000 NUTNut, bead stopper 4WD; 2007-06-01~ |
08310-0008A-000 |
from US $0.76 |
||
|
16
|
16
08321-0108A-000 WASHER,LOCK4WD; 2007-06-01~ |
08321-0108A-000 |
from US $0.80 |
||
|
17
|
17
09103-12051-000 BOLT(12X50)2007-06-01~ |
09103-12051-000 |
from US $2.40 |
||
|
18
|
18
08316-1012A-000 NUT2007-06-01~ |
08316-1012A-000 |
from US $0.96 |
||
|
19
|
19
09164-12017-000 WASHER2007-06-01~ |
09164-12017-000 |
US $1.28 |
