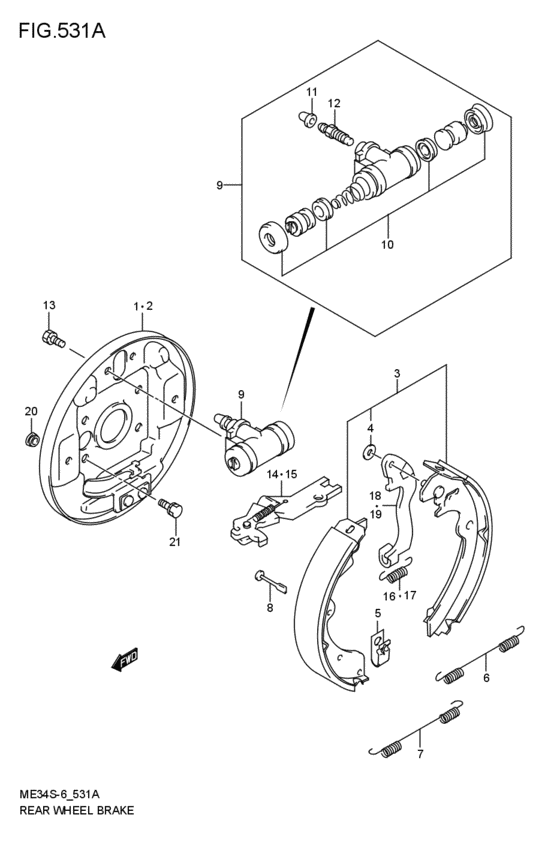

rear wheel brakes (2007-06-01~) Diagram Suzuki OTHER MODELS
- Year
- 2007 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- XV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53101-78F00-000
Plate,rr brake backing,r
2007-06-01~ |
53101-78F00-000 |
— | ||
| replacement | |||||
|
1
|
1
53101-78F01-000 PLATE,BRAKE BACKING,R2007-06-01~ |
53101-78F01-000 |
US $71.76 |
||
|
2
|
2
53102-78F00-000
Plate,rr brake backing,l
2007-06-01~ |
53102-78F00-000 |
— | ||
| replacement | |||||
|
2
|
2
53102-78F01-000 PLATE,BRAKE BACKING,L2007-06-01~ |
53102-78F01-000 |
US $71.76 |
||
|
3
|
3
53200-76G51-000 SHOE SET,BRAKE2007-06-01~ |
53200-76G51-000 |
from US $52.80 |
||
|
4
|
4
09148-06008-000 NUTNut, adjuster knob 2007-06-01~ |
09148-06008-000 |
from US $0.83 |
||
|
5
|
5
52243-84010-000 SPRING,SHOE HOLD DOWN2007-06-01~ |
52243-84010-000 |
US $2.74 |
||
|
6
|
6
53231-76G00-000 SPRING,SHOE RETURN UPPER2007-06-01~ |
53231-76G00-000 |
US $5.02 |
||
|
7
|
7
53232-70G00-000 SPRING,SHOE RETURN LOWER2007-06-01~ |
53232-70G00-000 |
US $5.47 |
||
|
8
|
8
52241-84010-000 PIN,SHOE HOLD DOWN2007-06-01~ |
52241-84010-000 |
from US $2.28 |
||
|
9
|
9
53401-76G02-000 CYLINDER ASSY,REAR WHEEL2007-06-01~ |
53401-76G02-000 |
US $85.01 |
||
|
10
|
10
53810-76G00-000 PISTON CUP/BOOT SET2007-06-01~ |
53810-76G00-000 |
US $14.40 |
||
|
11
|
11
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug 2007-06-01~ |
55156-66310-000 |
from US $1.98 |
||
|
12
|
12
55151-76G00-000 PLUG,BLEEDER2007-06-01~ |
55151-76G00-000 |
US $5.85 |
||
|
13
|
13
01570-0610A-000 Bolt2007-06-01~ |
01570-0610A-000 |
from US $2.48 |
||
|
14
|
14
53701-76G00-000 STRUT ASSY,PARKING SHOE,R2007-06-01~ |
53701-76G00-000 |
US $48 |
||
|
15
|
15
53702-76G00-000 STRUT ASSY,PARKING SHOE,L2007-06-01~ |
53702-76G00-000 |
US $48 |
||
|
16
|
16
53715-76G00-000 SPRING,STRUT SHOE RETURN,R2007-06-01~ |
53715-76G00-000 |
US $3.80 |
||
|
17
|
17
53716-76G00-000 SPRING,STRUT SHOE RETURN,L2007-06-01~ |
53716-76G00-000 |
US $3.80 |
||
|
18
|
18
53751-76G00-000 LEVER,OPERATING,R2007-06-01~ |
53751-76G00-000 |
from US $14.09 |
||
|
19
|
19
53761-76G00-000 LEVER,OPERATING,L2007-06-01~ |
53761-76G00-000 |
from US $14.09 |
||
|
20
|
20
53141-70F00-000 PLUG,BACKING PLATE2007-06-01~ |
53141-70F00-000 |
US $4.05 |
||
|
21
|
21
09117-08100-000 BOLT(8X21)2007-06-01~ |
09117-08100-000 |
US $14.40 |
||
|
21
|
21
53118-82J00-000 BOLT,RR BRAKE2008-01-01~ |
53118-82J00-000 |
US $2.13 |
||
