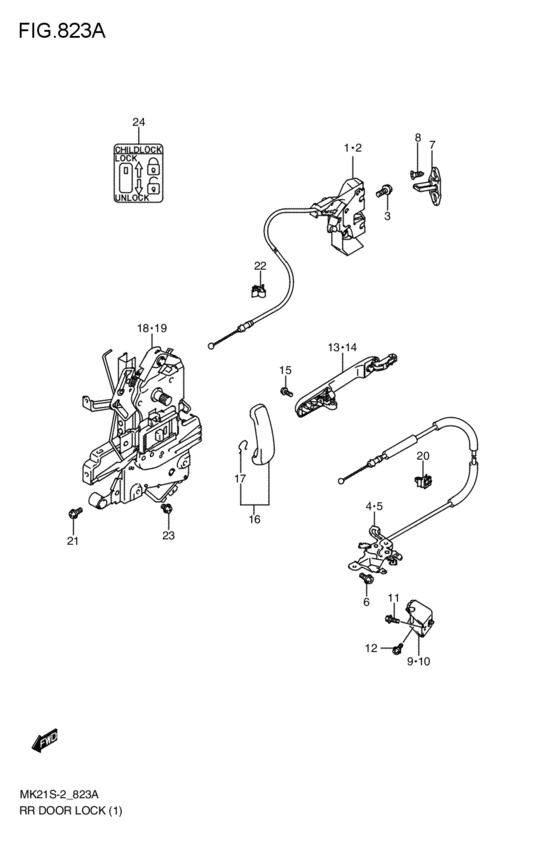

rear door lock (スライドドアナシ; AUTO-N:BG; 2009-06-01~) Diagram Suzuki PALETTE
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- 4V
- drive
- 2WD
- transmission
- AT
- grade
- BG
- side air bag
- SAB-N
- ディスチャージ
- DISCH-N
- start/stop button
- PUSHST-N
- オートスライド
- AUTO-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82301-82K00-000
ラッチアッシ,リヤドア,ライト
AUTO-N:BG; 2009-06-01~ |
82301-82K00-000 |
— | ||
|
2
|
2
82302-82K00-000
ラッチアッシ,リヤドア,レフト
AUTO-N:BG; 2009-06-01~ |
82302-82K00-000 |
— | ||
|
3
|
3
09137-06028-000 SCREW(6X18)AUTO-N:BG; 2009-06-01~ |
09137-06028-000 |
US $14.40 |
||
|
4
|
4
82410-82K00-000
ラッチアッシ,リヤドアオープン,ライト
AUTO-N:BG; 2009-06-01~ |
82410-82K00-000 |
— | ||
| replacement | |||||
|
4
|
4
82410-82810-000 LATCH SET,RR DR,RAUTO-N:BG; 2009-06-01~ |
82410-82810-000 |
US $51.15 |
||
|
5
|
5
82420-82K00-000
ラッチアッシ,リヤドアオープン,レフト
AUTO-N:BG; 2009-06-01~ |
82420-82K00-000 |
— | ||
| replacement | |||||
|
5
|
5
82420-82810-000 LATCH SET,RR DR,LAUTO-N:BG; 2009-06-01~ |
82420-82810-000 |
US $51.15 |
||
|
6
|
6
09128-06091-000 SCREW(6X12)AUTO-N:BG; 2009-06-01~ |
09128-06091-000 |
US $11.80 |
||
|
7
|
7
82630-82K01-000 STRIKER,RR DOOR LATCHAUTO-N:BG; 2009-06-01~ |
82630-82K01-000 |
US $7.65 |
||
|
8
|
8
09137-08013-000 SCREW(8X18)AUTO-N:BG; 2009-06-01~ |
09137-08013-000 |
US $17.30 |
||
|
9
|
9
82670-82K00-000 STRIKER,OPEN LATCH,RAUTO-N:BG; 2009-06-01~ |
82670-82K00-000 |
US $35.14 |
||
|
10
|
10
82680-82K00-000 STRIKER,OPEN LATCH,LAUTO-N:BG; 2009-06-01~ |
82680-82K00-000 |
US $35.14 |
||
|
11
|
11
01551-0816C-000 BoltAUTO-N:BG; 2009-06-01~ |
01551-0816C-000 |
from US $0.96 |
||
|
12
|
12
09116-08140-000 BOLT(8X16)AUTO-N:BG; 2009-06-01~ |
09116-08140-000 |
US $38.60 |
||
|
13
|
13
82830-82K00-ZDK
ハンドル,リヤドアアウト,ライト(ベージュ)
AUTO-N:BG; 2009-06-01~ |
82830-82K00-ZDK |
— | ||
| replacement | |||||
|
13
|
13
82830-81M00-ZDK
New Genuine Part
AUTO-N:BG; 2009-06-01~ |
82830-81M00-ZDK |
— | ||
|
13
|
13
82830-82K00-ZJ3
ハンドル,リヤドアアウト,ライト(ブラック)
AUTO-N:BG; 2009-06-01~ |
82830-82K00-ZJ3 |
— | ||
| replacement | |||||
|
13
|
13
82830-81M00-ZJ3 HANDLE,RR DR OUT,RAUTO-N:BG; 2009-06-01~ |
82830-81M00-ZJ3 |
US $37.90 |
||
|
13
|
13
82830-82K00-ZLV
ハンドル,リヤドアアウト,ライト(ピンク)
AUTO-N:BG; 2009-06-01~ |
82830-82K00-ZLV |
— | ||
| replacement | |||||
|
13
|
13
82830-81M00-ZLV
New Genuine Part
AUTO-N:BG; 2009-06-01~ |
82830-81M00-ZLV |
— | ||
|
13
|
13
82830-82K00-ZPS
ハンドル,リヤドアアウト,ライト(ピンク)
AUTO-N:BG; 2009-06-01~ |
82830-82K00-ZPS |
— | ||
| replacement | |||||
|
13
|
13
82830-81M00-ZPS
New Genuine Part
AUTO-N:BG; 2009-06-01~ |
82830-81M00-ZPS |
— | ||
|
13
|
13
82830-82K00-Z2S
ハンドル,リヤドアアウト,ライト(シルバー)
AUTO-N:BG; 2009-06-01~ |
82830-82K00-Z2S |
— | ||
| replacement | |||||
|
13
|
13
82830-81M00-Z2S HANDLE,RR DR OUT,RAUTO-N:BG; 2009-06-01~ |
82830-81M00-Z2S |
US $37.90 |
||
|
13
|
13
82830-82K00-Z7T
ハンドル,リヤドアアウト,ライト(ホワイト)
AUTO-N:BG; 2009-06-01~ |
82830-82K00-Z7T |
— | ||
| replacement | |||||
|
13
|
13
82830-81M00-Z7T HANDLE,RR DR OUT,RAUTO-N:BG; 2009-06-01~ |
82830-81M00-Z7T |
US $59.98 |
||
|
14
|
14
82840-82K00-ZDK
ハンドル,リヤドアアウト,レフト(ベージュ)
AUTO-N:BG; 2009-06-01~ |
82840-82K00-ZDK |
— | ||
| replacement | |||||
|
14
|
14
82840-81M00-ZDK
New Genuine Part
AUTO-N:BG; 2009-06-01~ |
82840-81M00-ZDK |
— | ||
|
14
|
14
82840-82K00-ZJ3
ハンドル,リヤドアアウト,レフト(ブラック)
AUTO-N:BG; 2009-06-01~ |
82840-82K00-ZJ3 |
— | ||
| replacement | |||||
|
14
|
14
82840-81M00-ZJ3 HANDLE,RR DR OUT,LAUTO-N:BG; 2009-06-01~ |
82840-81M00-ZJ3 |
US $37.90 |
||
|
14
|
14
82840-82K00-ZLV
ハンドル,リヤドアアウト,レフト(ピンク)
AUTO-N:BG; 2009-06-01~ |
82840-82K00-ZLV |
— | ||
| replacement | |||||
|
14
|
14
82840-81M00-ZLV
New Genuine Part
AUTO-N:BG; 2009-06-01~ |
82840-81M00-ZLV |
— | ||
|
14
|
14
82840-82K00-ZPS
ハンドル,リヤドアアウト,レフト(ピンク)
AUTO-N:BG; 2009-06-01~ |
82840-82K00-ZPS |
— | ||
| replacement | |||||
|
14
|
14
82840-81M00-ZPS
New Genuine Part
AUTO-N:BG; 2009-06-01~ |
82840-81M00-ZPS |
— | ||
|
14
|
14
82840-82K00-Z2S
ハンドル,リヤドアアウト,レフト(シルバー)
AUTO-N:BG; 2009-06-01~ |
82840-82K00-Z2S |
— | ||
| replacement | |||||
|
14
|
14
82840-81M00-Z2S HANDLE,RR DR OUT,LAUTO-N:BG; 2009-06-01~ |
82840-81M00-Z2S |
US $37.90 |
||
|
14
|
14
82840-82K00-Z7T
ハンドル,リヤドアアウト,レフト(ホワイト)
AUTO-N:BG; 2009-06-01~ |
82840-82K00-Z7T |
— | ||
| replacement | |||||
|
14
|
14
82840-81M00-Z7T HANDLE,RR DR OUT,LAUTO-N:BG; 2009-06-01~ |
82840-81M00-Z7T |
US $59.98 |
||
|
15
|
15
02162-0612A-000 SCREWBolt, bracket AUTO-N:BG; 2009-06-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
16
|
16
82930-77A00-R8H HANDLE,REAR DOOR INRAUTO-N:BG; 2009-06-01~ |
82930-77A00-R8H |
US $15.68 |
||
|
17
|
17
78463-78000-000 SNAPAUTO-N:BG; 2009-06-01~ |
78463-78000-000 |
US $1.60 |
||
|
18
|
18
83105-82K00-000
リンクアッシ,リヤドア,ライト
AUTO-N:BG; 2009-06-01~ |
83105-82K00-000 |
— | ||
|
19
|
19
83106-82K00-000
リンクアッシ,リヤドア,レフト
AUTO-N:BG; 2009-06-01~ |
83106-82K00-000 |
— | ||
|
20
|
20
83271-63D10-000 CLIP,DR R/CON RODAUTO-N:BG; 2009-06-01~ |
83271-63D10-000 |
US $1.60 |
||
|
21
|
21
09122-76007-000 SCREW(6X16)AUTO-N:BG; 2009-06-01~ |
09122-76007-000 |
US $11.80 |
||
|
22
|
22
09403-04401-000 CLAMPAUTO-N:BG; 2009-06-01~ |
09403-04401-000 |
US $9.90 |
||
|
23
|
23
02162-0612A-000 SCREWBolt, bracket AUTO-N:BG; 2009-06-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
24
|
24
86951-54G00-000 PLATE,CHILD LOCK CAUTIONAUTO-N:BG; 2009-06-01~ |
86951-54G00-000 |
from US $0.52 |
||
