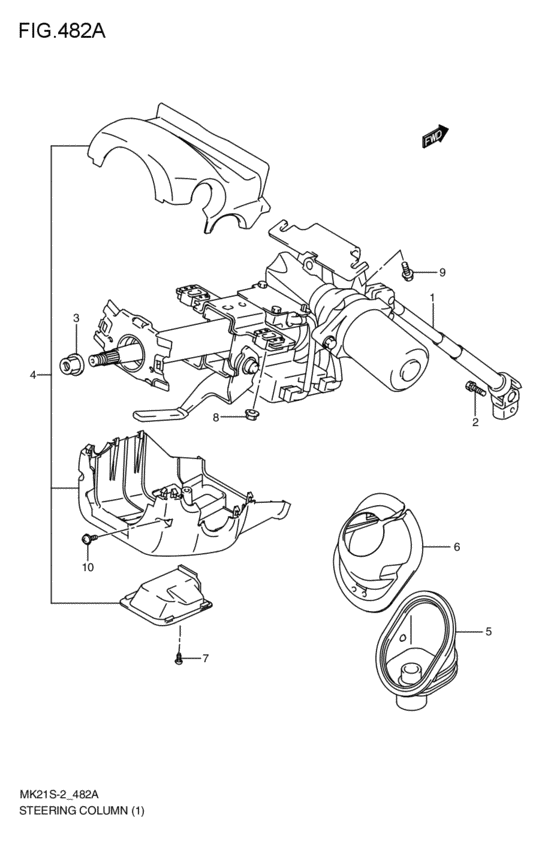

steering column (BG; 2009-06-01~) Diagram Suzuki PALETTE
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- 4V
- drive
- 2WD
- transmission
- AT
- grade
- BG
- side air bag
- SAB-N
- ディスチャージ
- DISCH-N
- start/stop button
- PUSHST-N
- オートスライド
- AUTO-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48200-82K20-000
コラムアッシ,コラプシブルステアリング
BG; 2009-06-01~ |
48200-82K20-000 |
— | ||
| replacement | |||||
|
1
|
1
48200-82K24-000
New Genuine Part
BG; 2009-06-01~ |
48200-82K24-000 |
— | ||
|
2
|
2
09117-08053-000 BOLT(8X30)BG; 2009-06-01~ |
09117-08053-000 |
US $20.20 |
||
|
3
|
3
08316-1012A-000 NUTBG; 2009-06-01~ |
08316-1012A-000 |
from US $0.96 |
||
|
4
|
4
48400-82K00-AYY
カバー,ステアリングコラム(ベージュ/グレー)
BG; 2009-06-01~ |
48400-82K00-AYY |
— | ||
|
5
|
5
48480-58J00-000
カバーアッシ,ステアリングジョイント
BG; 2009-06-01~ |
48480-58J00-000 |
— | ||
| replacement | |||||
|
5
|
5
48480-58J10-000 COVER ASSY,STRG JOINTBG; 2009-06-01~ |
48480-58J10-000 |
US $45.63 |
||
|
6
|
6
48481-72J00-000 COVER,STRG JOINT,UPPERBG; 2009-06-01~ |
48481-72J00-000 |
US $7.62 |
||
|
7
|
7
09136-05030-000 SCREW(5X12)BG; 2009-06-01~ |
09136-05030-000 |
US $0.96 |
||
|
8
|
8
09159-08135-000 NUTBG; 2009-06-01~ |
09159-08135-000 |
from US $0.77 |
||
|
9
|
9
01551-0825A-000 BOLTBG; 2009-06-01~ |
01551-0825A-000 |
from US $1.12 |
||
|
10
|
10
03211-0512B-000 SCREWBG; 2009-06-01~ |
03211-0512B-000 |
US $7.70 |
||
