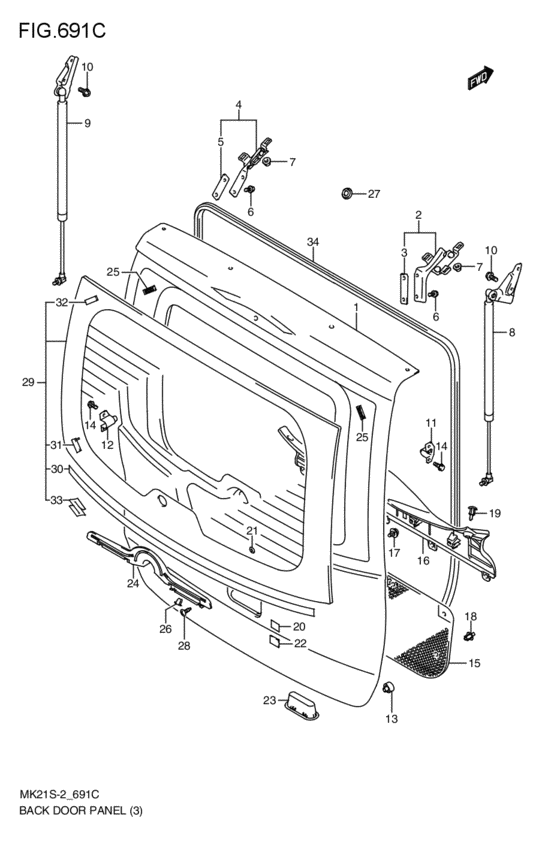

back door panel (BXM; 2009-06-01~) Diagram Suzuki PALETTE
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- 4V
- drive
- 4WD
- transmission
- CVT
- grade
- BXM
- side air bag
- SAB
- ディスチャージ
- DISCH-N
- start/stop button
- PUSHST
- オートスライド
- AUTO-L
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69100-82K02-000
パネルアッシ,バックドア
BXM; 2009-06-01~ |
69100-82K02-000 |
— | ||
|
2
|
2
69510-82K00-000
ヒンジ,バックドア,ライト
BXM; 2009-06-01~ |
69510-82K00-000 |
— | ||
|
3
|
3
69571-82K00-000
パッキング,バックドアヒンジヒーメイル
BXM; 2009-06-01~ |
69571-82K00-000 |
— | ||
|
4
|
4
69520-82K00-000
ヒンジ,バックドア,レフト
BXM; 2009-06-01~ |
69520-82K00-000 |
— | ||
|
5
|
5
69571-82K00-000
パッキング,バックドアヒンジヒーメイル
BXM; 2009-06-01~ |
69571-82K00-000 |
— | ||
|
6
|
6
09111-06086-000 BOLT(6X12)BXM; 2009-06-01~ |
09111-06086-000 |
US $12.50 |
||
|
7
|
7
08361-2508A-000 NUTBXM; 2009-06-01~ |
08361-2508A-000 |
from US $0.80 |
||
|
8
|
8
81850-82822-000
バランサ,バックドア,ライト
BXM; 2009-06-01~ |
81850-82822-000 |
— | ||
| replacement | |||||
|
8
|
8
81850-82823-000
New Genuine Part
BXM; 2009-06-01~ |
81850-82823-000 |
— | ||
|
9
|
9
81860-82822-000
バランサ,バックドア,レフト
BXM; 2009-06-01~ |
81860-82822-000 |
— | ||
| replacement | |||||
|
9
|
9
81860-82823-000
New Genuine Part
BXM; 2009-06-01~ |
81860-82823-000 |
— | ||
|
10
|
10
09128-06091-000 SCREW(6X12)BXM; 2009-06-01~ |
09128-06091-000 |
US $11.80 |
||
|
11
|
11
82760-82K00-000
クッション,バックドアサイド,ライト
BXM; 2009-06-01~ |
82760-82K00-000 |
— | ||
|
12
|
12
82770-82K00-000
クッション,バックドアサイド,レフト
BXM; 2009-06-01~ |
82770-82K00-000 |
— | ||
|
13
|
13
09321-10041-000 CUSHIONBXM; 2009-06-01~ |
09321-10041-000 |
from US $1.42 |
||
|
14
|
14
02162-0616B-000 SCREWBolt, adjust BXM; 2009-06-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
15
|
15
83771-82K00-P9S
トリム,バックドア(グレー)
BXM; 2009-06-01~ |
83771-82K00-P9S |
— | ||
|
16
|
16
83781-82K00-P4Z
カバー,リヤワイパ(グレー)
BXM; 2009-06-01~ |
83781-82K00-P4Z |
— | ||
|
17
|
17
09409-10312-000 CLIPBXM; 2009-06-01~ |
09409-10312-000 |
from US $1.13 |
||
|
18
|
18
09409-07332-000 CLIPBXM; 2009-06-01~ |
09409-07332-000 |
from US $1.26 |
||
|
19
|
19
09409-08308-P4Z CLIP(GRAY)BXM; 2009-06-01~ |
09409-08308-P4Z |
US $1.76 |
||
|
20
|
20
63191-25C00-000 CUSHIONCushion, guard BXM; 2009-06-01~ |
63191-25C00-000 |
from US $1.92 |
||
|
21
|
21
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole BXM; 2009-06-01~ |
84761-50X50-000 |
US $6.72 |
||
|
22
|
22
77151-82000-000
FILM
BXM; 2009-06-01~ |
77151-82000-000 |
— | ||
| replacements | |||||
|
22
|
22
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole BXM; 2009-06-01~ |
84761-50X50-000 |
US $6.72 |
||
|
22
|
22
77151-82010-000 SealBXM; 2009-06-01~ |
77151-82010-000 |
US $1.44 |
||
|
23
|
23
82841-82G01-P4Z
Handle,back door inner
BXM; 2009-06-01~ |
82841-82G01-P4Z |
— | ||
| replacement | |||||
|
23
|
23
82841-82G02-000 HANDLE,BACK DOOR INNERBXM; 2009-06-01~ |
82841-82G02-000 |
US $7.62 |
||
|
24
|
24
83961-82K10-000
ガーニッシュ,バックドアライセンス
BXM; 2009-06-01~ |
83961-82K10-000 |
— | ||
|
25
|
25
84515-65D00-000 FEMALE,GLASS FASTENER NO.2BXM; 2009-06-01~ |
84515-65D00-000 |
from US $3.67 |
||
|
26
|
26
09148-05044-000 NUTBXM; 2009-06-01~ |
09148-05044-000 |
US $1.28 |
||
|
27
|
27
09250-20023-000 CAP(OD:25.8)BXM; 2009-06-01~ |
09250-20023-000 |
US $10.30 |
||
|
28
|
28
03541-0512A-000 SCREWBXM; 2009-06-01~ |
03541-0512A-000 |
from US $0.65 |
||
|
29
|
29
84570-82K00-0PG
ガラス,バックドアウィンド(クローム)
ASAHI; BXM; 2009-06-01~ |
84570-82K00-0PG |
— | ||
|
30
|
30
84572-82K00-000
モールディング,バックドアウィンド
BXM; 2009-06-01~ |
84572-82K00-000 |
— | ||
|
31
|
31
84575-82K00-000 CLIP,GLASS FASTENERBXM; 2009-06-01~ |
84575-82K00-000 |
US $2.58 |
||
|
32
|
32
84513-76F00-000 MALE,GLASS FASTENER NO.2BXM; 2009-06-01~ |
84513-76F00-000 |
US $1.60 |
||
|
33
|
33
77811-55GA0-0PG EMBLEM,RR MARK SBXM; 2009-06-01~ |
77811-55GA0-0PG |
US $11.92 |
||
|
34
|
34
84681-82K00-000
ウェザストリップ,バックドアオープニング
BXM; 2009-06-01~ |
84681-82K00-000 |
— | ||
| replacement | |||||
|
34
|
34
84681-82K01-000
New Genuine Part
BXM; 2009-06-01~ |
84681-82K01-000 |
— | ||
