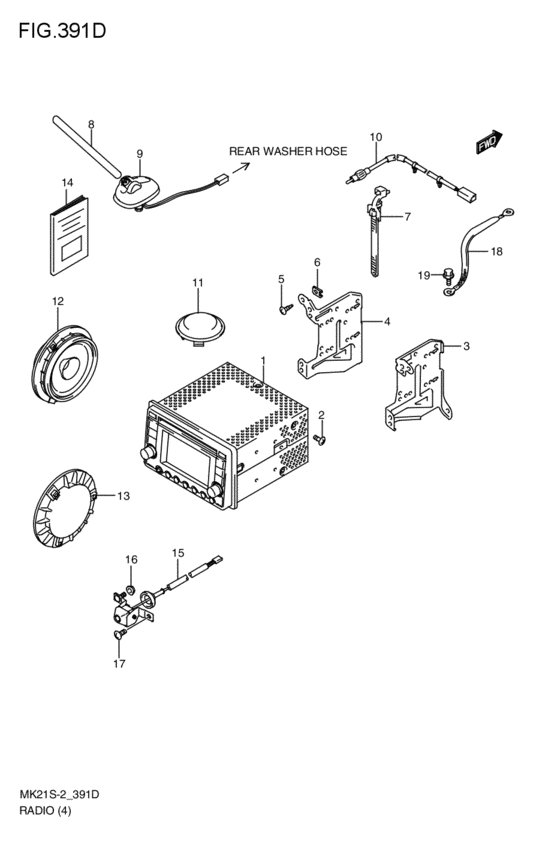

radio (BXM,SGM; 2009-06-01~) Diagram Suzuki PALETTE
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- 4V
- drive
- 4WD
- transmission
- CVT
- grade
- BXM
- side air bag
- SAB
- ディスチャージ
- DISCH-N
- start/stop button
- PUSHST
- オートスライド
- AUTO-L
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39101-82KD0-5PK
チューナアッシ(ブラック)
ブラツク; BXM,SGM; 2009-06-01~ |
39101-82KD0-5PK |
— | ||
| replacement | |||||
|
1
|
1
39101-82KD1-5PK
New Genuine Part
ブラツク; BXM,SGM; 2009-06-01~ |
39101-82KD1-5PK |
— | ||
|
2
|
2
02142-0508A-000 SCREWScrew, cap BXM,SGM; 2009-06-01~ |
02142-0508A-000 |
from US $0.76 |
||
|
3
|
3
39321-82K00-000
ブラケット,チューナ,ライト
ライト; BXM,SGM; 2009-06-01~ |
39321-82K00-000 |
— | ||
| replacement | |||||
|
3
|
3
39321-82K01-000
New Genuine Part
ライト; BXM,SGM; 2009-06-01~ |
39321-82K01-000 |
— | ||
|
4
|
4
39321-82K10-000
ブラケット,チューナ,レフト
レフト; BXM,SGM; 2009-06-01~ |
39321-82K10-000 |
— | ||
| replacement | |||||
|
4
|
4
39321-82K11-000
New Genuine Part
レフト; BXM,SGM; 2009-06-01~ |
39321-82K11-000 |
— | ||
|
5
|
5
03541-0516A-000 SCREWBXM,SGM; 2009-06-01~ |
03541-0516A-000 |
from US $0.68 |
||
|
6
|
6
09148-05045-000 NUTBXM,SGM; 2009-06-01~ |
09148-05045-000 |
from US $0.81 |
||
|
7
|
7
09407-12404-000 CLAMP(L:140)BXM,SGM; 2009-06-01~ |
09407-12404-000 |
US $2.08 |
||
|
8
|
8
39251-81J00-000 ROD,ANTENNABXM,SGM; 2009-06-01~ |
39251-81J00-000 |
US $101.84 |
||
|
9
|
9
39253-85K00-000
ベース,アンテナ
BXM,SGM; 2009-06-01~ |
39253-85K00-000 |
— | ||
| replacement | |||||
|
9
|
9
39253-85K01-000 BASE,ANTENNABXM,SGM; 2009-06-01~ |
39253-85K01-000 |
US $83.54 |
||
|
10
|
10
39270-82K00-000
フィーダ,アンテナインストゥルメントパネル
BXM,SGM; 2009-06-01~ |
39270-82K00-000 |
— | ||
|
11
|
11
39231-73H10-P4Z COVER,TWEETER HOLEグレ-; BXM,SGM; 2009-06-01~ |
39231-73H10-P4Z |
US $4.38 |
||
|
12
|
12
39102-58J40-000 SPEAKER ASSYフロント; BXM,SGM; 2009-06-01~ |
39102-58J40-000 |
US $32.57 |
||
|
13
|
13
39350-82K00-000
カバー,スピーカホール
リヤ; BXM,SGM; 2009-06-01~ |
39350-82K00-000 |
— | ||
|
14
|
14
39103-82KD0-000
マニュアル,オーディオ
BXM,SGM; 2009-06-01~ |
39103-82KD0-000 |
— | ||
|
15
|
15
39970-82K00-000
カメラアッシ
BXM,SGM; 2009-06-01~ |
39970-82K00-000 |
— | ||
| replacement | |||||
|
15
|
15
39970-82K02-000
New Genuine Part
BXM,SGM; 2009-06-01~ |
39970-82K02-000 |
— | ||
|
16
|
16
08316-1006A-000 NUTBXM,SGM; 2009-06-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
17
|
17
03541-0512A-000 SCREWBXM,SGM; 2009-06-01~ |
03541-0512A-000 |
from US $0.65 |
||
|
18
|
18
39312-82021-000 WIRE,NOISE SUPPRBXM,SGM; 2009-06-01~ |
39312-82021-000 |
US $5.92 |
||
|
19
|
19
09115-06005-000 BOLT(6X16)BXM,SGM; 2009-06-01~ |
09115-06005-000 |
US $1.28 |
||
