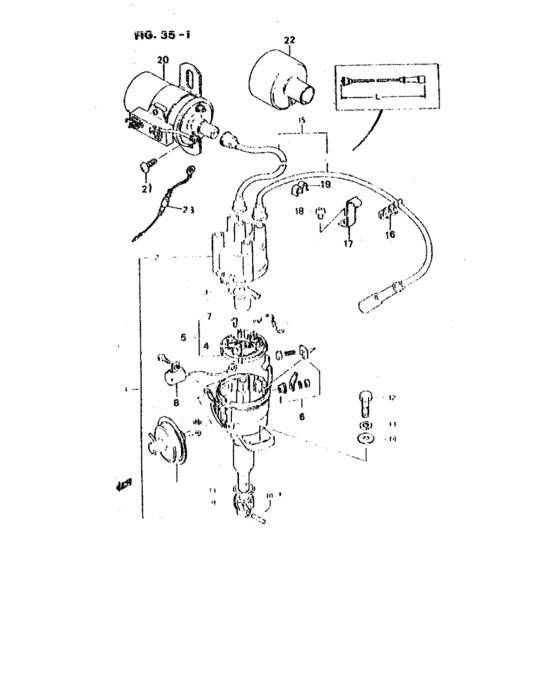

Allumeur nippon (ALLUMEUR NIPPON) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-80081-000
Allumeur complet
|
33100-80081-000 |
— | ||
| replacement | |||||
|
1
|
1
33100-80031-000 DISTRIBUTOR ASSY |
33100-80031-000 |
US $379.04 |
||
|
2
|
2
33321-75110-000
Couvercle distributeur
|
33321-75110-000 |
— | ||
|
3
|
3
33310-73010-000
ロータアッシ(DENSO)
|
33310-73010-000 |
— | ||
| replacement | |||||
|
3
|
3
33310-82010-000 ROTOR ASSY |
33310-82010-000 |
from US $8.21 |
||
|
4
|
4
33140-74010-000 POINT ASSY |
33140-74010-000 |
US $11.36 |
||
|
5
|
5
33102-73010-000
BREAKER ASSY,DISTRIBUTOR
|
33102-73010-000 |
— | ||
|
6
|
6
33210-80030-000
Ens terminal.
|
33210-80030-000 |
— | ||
|
7
|
7
33151-52011-000 SCREW,POINT |
33151-52011-000 |
from US $0.63 |
||
|
8
|
8
33261-73010-000 CONDENSER |
33261-73010-000 |
from US $5.11 |
||
|
9
|
9
33267-73011-000 GEAR,DISTRIBUTOR |
33267-73011-000 |
US $42.69 |
||
|
10
|
10
33268-72010-000 PIN,DISTRIBUTOR GEAR |
33268-72010-000 |
US $0.77 |
||
|
11
|
11
33278-52010-000
Oリング
|
33278-52010-000 |
— | ||
| replacement | |||||
|
11
|
11
33278-85310-000 O-RING |
33278-85310-000 |
from US $2.74 |
||
|
12
|
12
09100-08158-000
ボルト,8X30
|
09100-08158-000 |
— | ||
| replacement | |||||
|
12
|
12
01500-0830B-000 Bolt |
01500-0830B-000 |
from US $0.96 |
||
|
13
|
13
09160-08030-000
Washer
|
09160-08030-000 |
— | ||
| replacement | |||||
|
13
|
13
09160-08128-000 WASHER(8.5X22X3.2) |
09160-08128-000 |
from US $3.83 |
||
|
14
|
14
08321-A3108-800
Rondelle
|
08321-A3108-800 |
— | ||
|
15
|
15
33760-80010-000
Cable 4
|
33760-80010-000 |
— | ||
| replacement | |||||
|
15
|
15
33750-80C00-000 CORD,HT NO.4 |
33750-80C00-000 |
US $19.01 |
||
|
16
|
16
33883-63200-000
CLAMP,HIGH TENSION CORD
|
33883-63200-000 |
— | ||
|
17
|
17
33881-80000-000
Arretier
|
33881-80000-000 |
— | ||
| replacement | |||||
|
17
|
17
33881-75100-000 CLAMP,HIGH TENSION CORD |
33881-75100-000 |
US $2.88 |
||
|
18
|
18
02112-06086-000
New Genuine Part
|
02112-06086-000 |
— | ||
| replacement | |||||
|
18
|
18
02112-0608A-000 SCREW |
02112-0608A-000 |
from US $0.91 |
||
|
19
|
19
09408-00033-000 CLAMPClamp |
09408-00033-000 |
from US $1.60 |
||
|
20
|
20
33410-77020-000
Coil assy, ignition
|
33410-77020-000 |
— | ||
| replacement | |||||
|
20
|
20
33410-770V0-000 COIL ASSY,IGNITION |
33410-770V0-000 |
from US $130.40 |
||
|
21
|
21
02142-06106-000
Screw
|
02142-06106-000 |
— | ||
| replacements | |||||
|
21
|
21
02142-0610B-000 SCREWStopper, cl rlse cam shaft |
02142-0610B-000 |
from US $0.76 |
||
|
21
|
21
02142-0610A-000 SCREW |
02142-0610A-000 |
from US $0.96 |
||
|
22
|
22
33471-77011-000
CAP,IGNITION COIL
|
33471-77011-000 |
— | ||
|
23
|
23
33459-A7813-000
Cable c / diode
|
33459-A7813-000 |
— | ||
