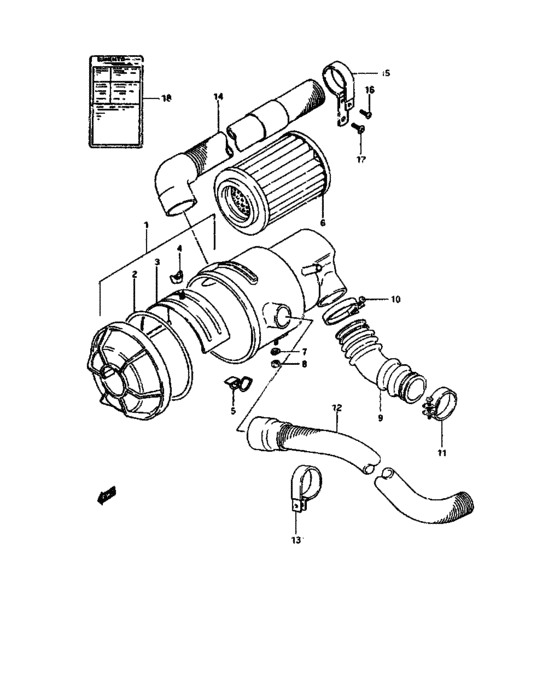

Air cleaner (AIR CLEANER) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13701-80020-000
Case assy, air cleaner
WARM AIR TYPE |
13701-80020-000 |
— | ||
| replacement | |||||
|
1
|
1
13701-80X50-000 CLEANER ASSY,AIRWARM AIR TYPE |
13701-80X50-000 |
US $151.98 |
||
|
1
|
1
13701-80011-000
Case assy, air cleaner
,East-South Asia,Philippines,Saudi Arabia,6,NON WARM AIR TYPE |
13701-80011-000 |
— | ||
| replacement | |||||
|
1
|
1
13701-80X50-000 CLEANER ASSY,AIR,East-South Asia,Philippines,Saudi Arabia,6,NON WARM AIR TYPE |
13701-80X50-000 |
US $151.98 |
||
|
2
|
2
13773-80000-000 GASKET |
13773-80000-000 |
US $3.24 |
||
|
3
|
3
13740-80001-000 VALVE,AIR CLEANER |
13740-80001-000 |
US $7.43 |
||
|
4
|
4
08317-12066-000
Nut
|
08317-12066-000 |
— | ||
| replacement | |||||
|
4
|
4
08317-1206A-000 NUT |
08317-1206A-000 |
from US $1.06 |
||
|
5
|
5
13750-79500-000 CLIP |
13750-79500-000 |
US $1.98 |
||
|
6
|
6
13780-79210-000 ELEMENT,AIR CLEANER |
13780-79210-000 |
US $22.80 |
||
|
7
|
7
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
7
|
7
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
7
|
7
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
8
|
8
08310-12086-000
ナット
|
08310-12086-000 |
— | ||
| replacements | |||||
|
8
|
8
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
8
|
8
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
9
|
9
13881-80010-000 HOSE,AIR CLEANER OUTLETFROM 13881-80001 |
13881-80010-000 |
US $47.89 |
||
|
10
|
10
09402-68306-000 CLAMPAir inlet hose clamp |
09402-68306-000 |
from US $7.51 |
||
|
11
|
11
09402-58306-000 CLAMPBand |
09402-58306-000 |
from US $1.98 |
||
|
12
|
12
13840-80002-000
Hose, warm air
|
13840-80002-000 |
— | ||
| replacement | |||||
|
12
|
12
13840-79141-000
HOSE,WARM AIR
|
13840-79141-000 |
— | ||
|
13
|
13
09403-48401-000 CLAMP |
09403-48401-000 |
US $2.13 |
||
|
14
|
14
13870-80020-000
Hose, cool air
|
13870-80020-000 |
— | ||
| replacement | |||||
|
14
|
14
13870-80X50-000 HOSE,COOL AIR |
13870-80X50-000 |
US $88.16 |
||
|
15
|
15
13896-79100-000
Clamp, hose & extension case
|
13896-79100-000 |
— | ||
| replacement | |||||
|
15
|
15
13896-72100-000 CLAMP |
13896-72100-000 |
US $2.24 |
||
|
16
|
16
03141-05106-000
New Genuine Part
|
03141-05106-000 |
— | ||
| replacement | |||||
|
16
|
16
03142-0510B-000 SCREW |
03142-0510B-000 |
US $0.80 |
||
|
17
|
17
02142-06126-000
Screw, front fender rear
|
02142-06126-000 |
— | ||
| replacements | |||||
|
17
|
17
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
17
|
17
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
18
|
18
11954-79200-000
Indicater, air cleaner
|
11954-79200-000 |
— | ||
