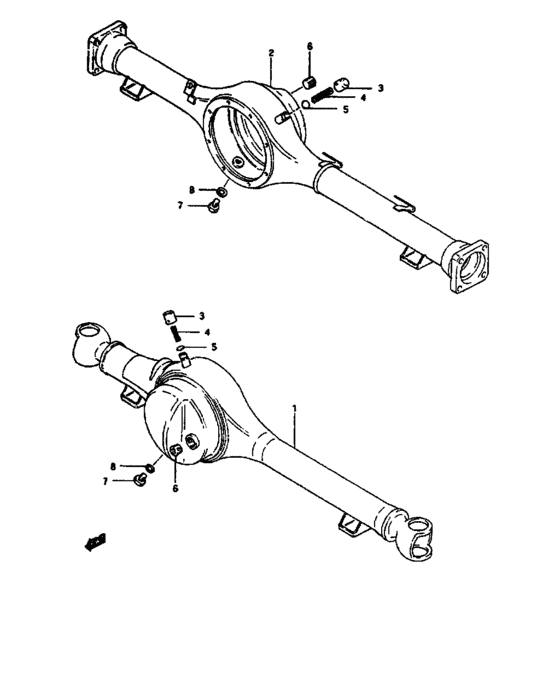

Axle housing (AXLE HOUSING) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46480-80300-000
Housing, front axle
|
46480-80300-000 |
— | ||
| replacements | |||||
|
1
|
1
09168-20003-000 GASKET(20X27X2)Gasket (20x27x2) |
09168-20003-000 |
from US $2.28 |
||
|
1
|
1
09248-20003-000 PLUG |
09248-20003-000 |
from US $2.59 |
||
|
1
|
1
46480-80703-000
Housing,front axle
|
46480-80703-000 |
— | ||
|
1
|
1
09168-20001-000
Gasket
|
09168-20001-000 |
— | ||
|
1
|
1
09247-20001-000
プラグ
|
09247-20001-000 |
— | ||
|
2
|
2
46510-80380-000
Housing, rear axle
Germany,Austria |
46510-80380-000 |
— | ||
| replacements | |||||
|
2
|
2
09168-20003-000 GASKET(20X27X2)Gasket (20x27x2) Germany,Austria |
09168-20003-000 |
from US $2.28 |
||
|
2
|
2
09248-20003-000 PLUGGermany,Austria |
09248-20003-000 |
from US $2.59 |
||
|
2
|
2
09247-20001-000
プラグ
Germany,Austria |
09247-20001-000 |
— | ||
|
2
|
2
09168-20001-000
Gasket
Germany,Austria |
09168-20001-000 |
— | ||
|
3
|
3
46541-52002-000 CAP,BREATHER |
46541-52002-000 |
US $1.60 |
||
|
4
|
4
09440-12004-000 SPRING |
09440-12004-000 |
from US $1.15 |
||
|
5
|
5
46542-52000-000
VALVE,BREATHER
|
46542-52000-000 |
— | ||
| replacement | |||||
|
5
|
5
46542-52001-000 VALVE,RR AXLE HSG BREATHER |
46542-52001-000 |
US $1.60 |
||
|
6
|
6
09246-16004-000
プラグ(マグネットナシ)
|
09246-16004-000 |
— | ||
| replacements | |||||
|
6
|
6
09246-16010-000 PLUG |
09246-16010-000 |
US $4.46 |
||
|
6
|
6
09246-16021-000 Plug,t/m Oil Drain |
09246-16021-000 |
from US $4.01 |
||
|
7
|
7
09247-12003-000 PLUGPlug (12x13) |
09247-12003-000 |
US $0.96 |
||
|
8
|
8
09168-12002-000 GASKET(12.1X16.2X3.7)Gasket |
09168-12002-000 |
from US $0.76 |
||
