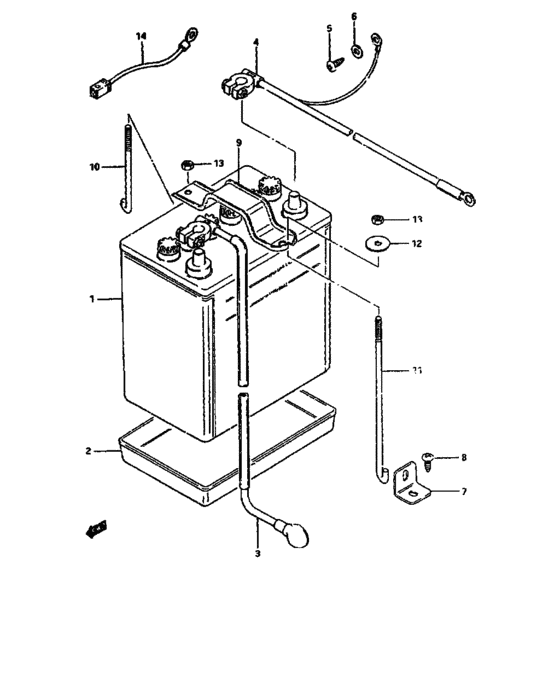

Battery (BATTERY) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33610-79721-000
Battery
|
33610-79721-000 |
— | ||
| replacement | |||||
|
1
|
1
33610-750V1-000
BATTERY ASSY,38B19R (Cannot supply)
|
33610-750V1-000 |
— | ||
|
1
|
1
33610-80011-000
Battery
Finland |
33610-80011-000 |
— | ||
| replacement | |||||
|
1
|
1
33610-60A11-000
バッテリ,55B24R(S)ーMF,12V36AH,YB
Finland |
33610-60A11-000 |
— | ||
|
2
|
2
33661-51020-000 TRAY,BATTERY |
33661-51020-000 |
from US $4.96 |
||
|
2
|
2
33660-73010-000
Tray, battery
Finland |
33660-73010-000 |
— | ||
| replacement | |||||
|
2
|
2
33660-71L10-000 TRAY,BATTERYFinland |
33660-71L10-000 |
US $10.88 |
||
|
2
|
2
33660-67000-000 TRAY,BATTERYPhilippines |
33660-67000-000 |
US $9.44 |
||
|
3
|
3
33810-80010-000
ケーブル,スターティングモータ
|
33810-80010-000 |
— | ||
| replacement | |||||
|
3
|
3
33800-70A00-000 CABLE ASSY,STARTING MOTOR |
33800-70A00-000 |
US $82.40 |
||
|
3
|
3
33810-80020-000
Cable, starting motor
Finland |
33810-80020-000 |
— | ||
| replacement | |||||
|
3
|
3
33810-85040-000
CABLE,STARTING MOTOR
Finland |
33810-85040-000 |
— | ||
|
4
|
4
33850-80010-000
Cable, battery ground
|
33850-80010-000 |
— | ||
| replacement | |||||
|
4
|
4
33850-70B10-000 CABLE,BTRY GND |
33850-70B10-000 |
US $41.60 |
||
|
4
|
4
33850-80020-000
Cable, battery ground
Finland |
33850-80020-000 |
— | ||
| replacement | |||||
|
4
|
4
33850-80030-000
CABLE,BTRY GND
Finland |
33850-80030-000 |
— | ||
|
5
|
5
03111-05128-000
Screw
|
03111-05128-000 |
— | ||
| replacement | |||||
|
5
|
5
03111-0512A-000 SCREW |
03111-0512A-000 |
from US $0.80 |
||
|
6
|
6
08322-21058-000
Washer
|
08322-21058-000 |
— | ||
| replacement | |||||
|
6
|
6
08322-01057-000 WASHERWasher, front hook holder |
08322-01057-000 |
from US $0.80 |
||
|
7
|
7
72525-80001-000 STAY,BATTERY BOLT |
72525-80001-000 |
US $3.36 |
||
|
8
|
8
02142-06106-000
Screw
|
02142-06106-000 |
— | ||
| replacements | |||||
|
8
|
8
02142-0610B-000 SCREWStopper, cl rlse cam shaft |
02142-0610B-000 |
from US $0.76 |
||
|
8
|
8
02142-0610A-000 SCREW |
02142-0610A-000 |
from US $0.80 |
||
|
9
|
9
72728-64005-000
BAND,BATTERY
|
72728-64005-000 |
— | ||
|
10
|
10
72521-80000-000
Vis batterie
|
72521-80000-000 |
— | ||
| replacement | |||||
|
10
|
10
72521-80001-000 BOLT,BATTERY |
72521-80001-000 |
US $1.60 |
||
|
11
|
11
63461-70400-000
Bolt, battery
|
63461-70400-000 |
— | ||
| replacement | |||||
|
11
|
11
63461-80000-000 BOLT,BATTERY |
63461-80000-000 |
from US $2.72 |
||
|
12
|
12
09160-05013-000 WASHER(5.2X16X1)Washer |
09160-05013-000 |
from US $0.76 |
||
|
13
|
13
08310-11056-000
Nut
|
08310-11056-000 |
— | ||
| replacement | |||||
|
13
|
13
08310-0005A-000 NUT |
08310-0005A-000 |
from US $0.80 |
||
|
14
|
14
36740-80000-000 FUSIBLE LINK |
36740-80000-000 |
US $21.60 |
||
