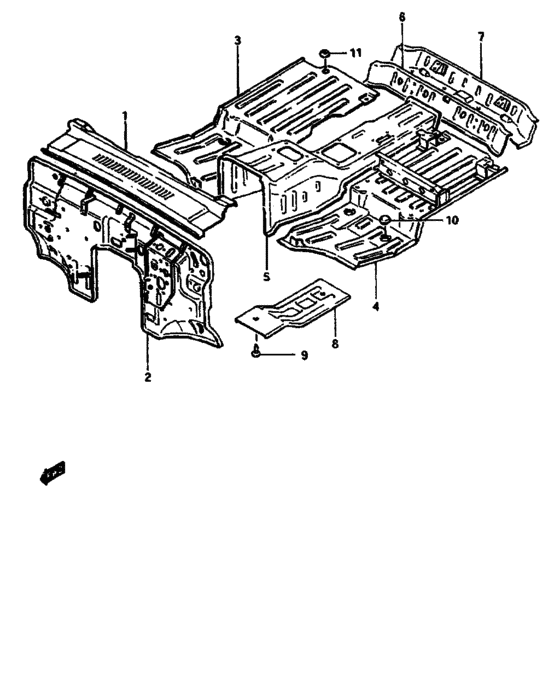

Center panel (CENTER PANEL) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
59300-80001-000
Panel assy, cowl upper
|
59300-80001-000 |
— | ||
| replacement | |||||
|
1
|
1
59300-80002-000
Panel assy, cowl upper
|
59300-80002-000 |
— | ||
|
1
|
1
59300-80071-000
Panel assy, cowl upper
Finland |
59300-80071-000 |
— | ||
|
2
|
2
61100-80043-000
Panel, dash
LHD |
61100-80043-000 |
— | ||
|
2
|
2
61100-80003-000
Panel, dash
RHD |
61100-80003-000 |
— | ||
|
2
|
2
61100-80081-000
Panel, dash
Finland |
61100-80081-000 |
— | ||
|
2
|
2
61100-80073-000
Panel, dash
Australia |
61100-80073-000 |
— | ||
|
3
|
3
61400-80041-000
Panel, floor rh
LHD |
61400-80041-000 |
— | ||
|
3
|
3
61400-80001-000
Panel, floor rh
RHD |
61400-80001-000 |
— | ||
|
4
|
4
61500-80041-000
Panel, floor lh
TYPE 1:LHD |
61500-80041-000 |
— | ||
|
4
|
4
61500-80001-000
Panel, floor lh
TYPE 1:RHD |
61500-80001-000 |
— | ||
|
4
|
4
61500-80030-000
Panel, floor lh
TYPE 2:LHD |
61500-80030-000 |
— | ||
|
4
|
4
61500-80010-000
Panel, floor lh
TYPE 2:RHD |
61500-80010-000 |
— | ||
|
5
|
5
61600-80010-000
Panel, tunnel
TYPE 1:LHD |
61600-80010-000 |
— | ||
|
5
|
5
61600-80000-000
Panel, tunnel
TYPE 1:RHD |
61600-80000-000 |
— | ||
|
5
|
5
61600-80030-000
Panel, tunnel
TYPE 2:LHD |
61600-80030-000 |
— | ||
|
5
|
5
61600-80020-000
Panel, tunnel
TYPE 2:RHD |
61600-80020-000 |
— | ||
|
5
|
5
61600-80080-000
Panel, tunnel
Finland,Germany,Austria |
61600-80080-000 |
— | ||
|
6
|
6
61810-80020-000
Member, floor no.1
|
61810-80020-000 |
— | ||
| replacement | |||||
|
6
|
6
61810-83030-000 MEMBER,CTR FL NO.1 |
61810-83030-000 |
US $64 |
||
|
7
|
7
61820-80000-000
Member, floor no.2
|
61820-80000-000 |
— | ||
|
8
|
8
14231-80001-000
Panel, heat protector
|
14231-80001-000 |
— | ||
|
9
|
9
03141-06126-000
スクリュ
|
03141-06126-000 |
— | ||
| replacement | |||||
|
9
|
9
03141-0612A-000 SCREW |
03141-0612A-000 |
US $0.76 |
||
|
10
|
10
09250-40002-000 CAP(OD:52) |
09250-40002-000 |
from US $1.82 |
||
|
11
|
11
09250-30002-000
キャップ,OD:30
|
09250-30002-000 |
— | ||
| replacement | |||||
|
11
|
11
72999-67H00-000 CAP,OD:40 |
72999-67H00-000 |
from US $4.32 |
||
