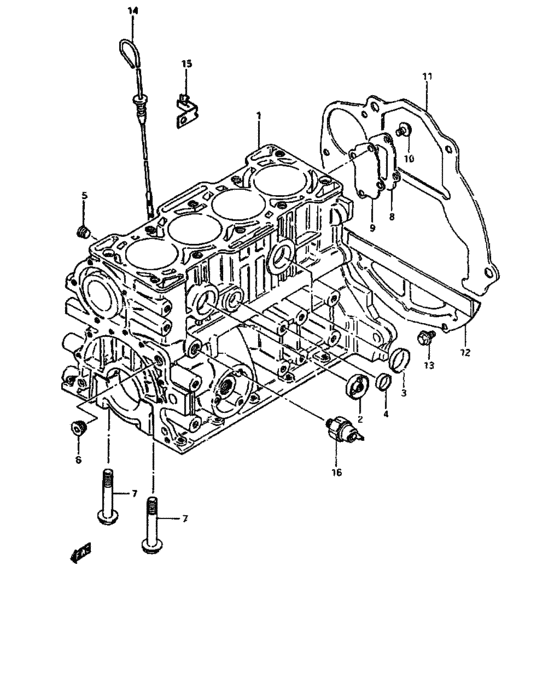

Cylinder (CYLINDER) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11200-80000-000
Cylinder assy
|
11200-80000-000 |
— | ||
| replacements | |||||
|
1
|
1
11200-80001-000 BLOCK ASSY,CYLINDER |
11200-80001-000 |
US $1,812.88 |
||
|
1
|
1
01550-1045B-000 Bolt |
01550-1045B-000 |
from US $1.28 |
||
|
1
|
1
04211-13149-000 PIN |
04211-13149-000 |
from US $1.28 |
||
|
1
|
1
09206-13011-000
ノックピン,10.4X13X14
|
09206-13011-000 |
— | ||
|
1
|
1
01517-10458-000
Bolt
|
01517-10458-000 |
— | ||
|
2
|
2
11250-80000-000
Bouchon de dessablag
|
11250-80000-000 |
— | ||
| replacements | |||||
|
2
|
2
09241-30010-000 PLUG |
09241-30010-000 |
from US $1.64 |
||
|
2
|
2
09241-30009-000
Plug
|
09241-30009-000 |
— | ||
|
3
|
3
09241-30002-000
プラグ,OD:30
|
09241-30002-000 |
— | ||
| replacement | |||||
|
3
|
3
09241-30010-000 PLUG |
09241-30010-000 |
from US $1.64 |
||
|
4
|
4
09241-20002-000
プラグ
|
09241-20002-000 |
— | ||
| replacement | |||||
|
4
|
4
09241-20006-000 PLUGPlug, crank pin oil |
09241-20006-000 |
from US $1.44 |
||
|
5
|
5
09246-05001-000
Plug, oil gallery
|
09246-05001-000 |
— | ||
| replacement | |||||
|
5
|
5
09246-05006-000 PLUG(1/8PT,H:5.5) |
09246-05006-000 |
from US $1.42 |
||
|
6
|
6
09246-06001-000 PLUG(1/4PT,H:7.5) |
09246-06001-000 |
US $12.50 |
||
|
7
|
7
01537-10606-000
Bolt
|
01537-10606-000 |
— | ||
| replacement | |||||
|
7
|
7
01550-10607-000 Bolt |
01550-10607-000 |
from US $4.88 |
||
|
8
|
8
11221-73000-000 PLATE,CYLINDER BLOCK |
11221-73000-000 |
US $2.72 |
||
|
9
|
9
11229-73000-000 GASKET,CYL BLOCK PLATE |
11229-73000-000 |
US $1.76 |
||
|
10
|
10
01537-06106-000
Bolt
|
01537-06106-000 |
— | ||
| replacement | |||||
|
10
|
10
01550-06107-000 BOLT |
01550-06107-000 |
from US $0.80 |
||
|
11
|
11
11311-73001-000
プレート,クラッチハウジング,アッパ
|
11311-73001-000 |
— | ||
|
12
|
12
11320-73000-000
プレート,クラッチハウジング,ロア
|
11320-73000-000 |
— | ||
| replacement | |||||
|
12
|
12
11320-73001-000 PLATE,CLUTCH HSG LOWER |
11320-73001-000 |
US $6.77 |
||
|
13
|
13
01517-06126-000
Bolt m6x1x12
|
01517-06126-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
13
|
13
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
14
|
14
16910-80000-000
Gauge, oil level
|
16910-80000-000 |
— | ||
| replacement | |||||
|
14
|
14
16910-80011-000 GAUGE,OIL LEVEL |
16910-80011-000 |
US $22.80 |
||
|
15
|
15
16915-80000-000 SUPPORTER,OIL LEVEL GAUGE |
16915-80000-000 |
US $12.77 |
||
|
16
|
16
37820-82000-000
Switch, oil pressure
|
37820-82000-000 |
— | ||
| replacement | |||||
|
16
|
16
37820-820P0-000 SWITCH ASSY,OIL PRESSURE |
37820-820P0-000 |
from US $12.02 |
||
