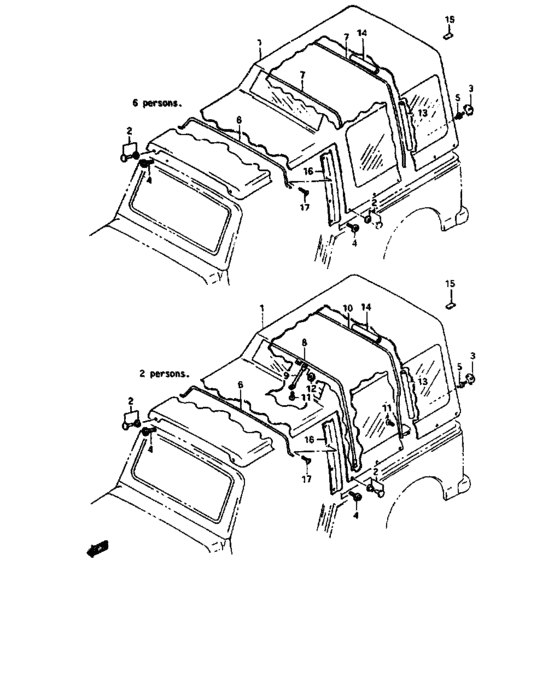

Deck top (SJ410WF) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78310-80302-45R
Deck assy, top
FROM 78310-80301-45R |
78310-80302-45R |
— | ||
|
1
|
1
78310-80312-40S
Deck assy, top
FROM 78310-80311-40S |
78310-80312-40S |
— | ||
| replacement | |||||
|
1
|
1
78310-83303-6EP
DECK ASSY,TOP
FROM 78310-80311-40S |
78310-83303-6EP |
— | ||
|
1
|
1
78310-80312-40U
Deck assy, top
FROM 78310-80311-40U |
78310-80312-40U |
— | ||
| replacement | |||||
|
1
|
1
78310-83303-40U
TOP ASSY,DECK
FROM 78310-80311-40U |
78310-83303-40U |
— | ||
|
2
|
2
79100-63850-000 HOOK SET |
79100-63850-000 |
US $4.45 |
||
| replacement | |||||
|
2
|
2
79100-63861-000 HOOK SET |
79100-63861-000 |
US $13.60 |
||
|
3
|
3
79133-63040-000
Snap
|
79133-63040-000 |
— | ||
| replacement | |||||
|
3
|
3
79133-63041-000 FEMALE,RR HOOK |
79133-63041-000 |
US $8.64 |
||
|
4
|
4
78491-80001-000
Hook nale
FROM 78491-80000 |
78491-80001-000 |
— | ||
| replacement | |||||
|
4
|
4
78490-82CA2-000 MALE,TOP DECK FR HOOKFROM 78491-80000 |
78490-82CA2-000 |
US $1.52 |
||
|
5
|
5
79134-73001-000
Crochet avant
|
79134-73001-000 |
— | ||
| replacement | |||||
|
5
|
5
79134-73002-000 HOOK,MALE TOP DECK |
79134-73002-000 |
US $1.52 |
||
|
6
|
6
78510-80300-000
RAIL,ROOF SIDE FR
FROM 78511-80000 |
78510-80300-000 |
— | ||
|
7
|
7
78471-80300-000
FRAME,TOP BOW
6 PERSONS. |
78471-80300-000 |
— | ||
|
8
|
8
78460-80330-000
Frame, top bow front
2 PERSONS. |
78460-80330-000 |
— | ||
|
9
|
9
78463-80330-000
Frame, top bow front cross
2 PERSONS. |
78463-80330-000 |
— | ||
|
10
|
10
78470-80330-000
Frame, top bow center
2 PERSONS. |
78470-80330-000 |
— | ||
|
11
|
11
02142-06128-000
Bolt
2 PERSONS. |
02142-06128-000 |
— | ||
| replacement | |||||
|
11
|
11
02142-06127-000 SCREW2 PERSONS. |
02142-06127-000 |
from US $0.76 |
||
|
12
|
12
08313-11068-000
Nut
2 PERSONS. |
08313-11068-000 |
— | ||
| replacement | |||||
|
12
|
12
08313-10067-000 NUT2 PERSONS. |
08313-10067-000 |
from US $1.03 |
||
|
13
|
13
78482-80300-000
Cushion, top bow side
|
78482-80300-000 |
— | ||
| replacement | |||||
|
13
|
13
78483-80301-000
CUSHION,TOP BOW,UPPER
|
78483-80301-000 |
— | ||
|
14
|
14
78483-80300-000
Cushion, top bow upper
|
78483-80300-000 |
— | ||
| replacement | |||||
|
14
|
14
78483-80301-000
CUSHION,TOP BOW,UPPER
|
78483-80301-000 |
— | ||
|
15
|
15
78476-80001-000
Appui
|
78476-80001-000 |
— | ||
| replacement | |||||
|
15
|
15
78476-80002-000
PAT,RR TOPBOW
|
78476-80002-000 |
— | ||
|
16
|
16
78411-80100-000
Rail, deck top side
|
78411-80100-000 |
— | ||
| replacement | |||||
|
16
|
16
78411-80101-000 RAIL,DECK TOP SIDE |
78411-80101-000 |
US $27.36 |
||
|
17
|
17
02142-06126-000
Screw, front fender rear
|
02142-06126-000 |
— | ||
| replacements | |||||
|
17
|
17
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
17
|
17
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
