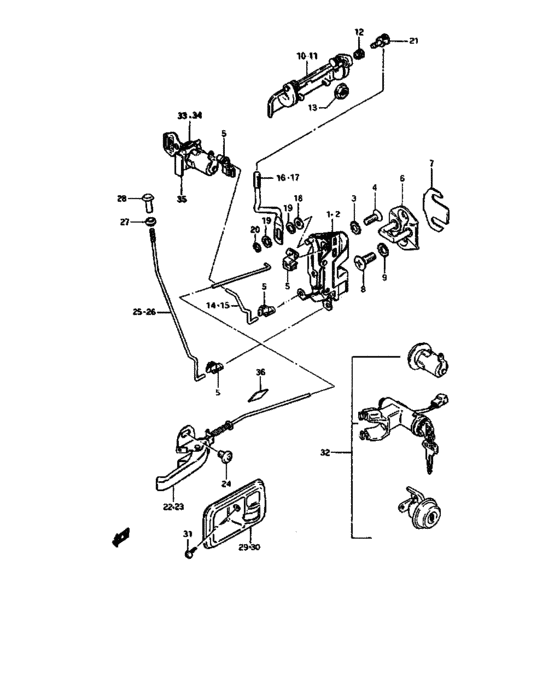

Front door lock (FRONT DOOR LOCK) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82201-80101-000
Fermeture porte cd
|
82201-80101-000 |
— | ||
| replacement | |||||
|
1
|
1
82201-70A01-000 LATCH ASSY,FR DR,R |
82201-70A01-000 |
US $140 |
||
|
2
|
2
82202-80101-000
Fermutere porte cg
|
82202-80101-000 |
— | ||
| replacement | |||||
|
2
|
2
82202-70A01-000 LATCH ASSY,FR DR,L |
82202-70A01-000 |
US $133.01 |
||
|
3
|
3
08323-31068-000
Lock washer
|
08323-31068-000 |
— | ||
| replacement | |||||
|
3
|
3
08323-3106A-000 WASHER,LOCK |
08323-3106A-000 |
US $0.88 |
||
|
4
|
4
02122-06168-000
Screw
|
02122-06168-000 |
— | ||
| replacement | |||||
|
4
|
4
02122-06167-000 SCREW |
02122-06167-000 |
from US $0.76 |
||
|
5
|
5
09209-05016-000 PIN |
09209-05016-000 |
US $1.67 |
||
|
6
|
6
82610-80101-000
Striker, lock
|
82610-80101-000 |
— | ||
| replacement | |||||
|
6
|
6
82610-85002-000 STRIKER,FR DOOR LATCH |
82610-85002-000 |
US $39.20 |
||
|
7
|
7
82681-80100-000 SPACER,STRIKER |
82681-80100-000 |
US $1.60 |
||
|
8
|
8
02122-08188-000
Screw
|
02122-08188-000 |
— | ||
| replacement | |||||
|
8
|
8
09126-08004-XC0 SCREW(8X18) |
09126-08004-XC0 |
US $13.20 |
||
|
9
|
9
08323-31088-000
Washer,lock
|
08323-31088-000 |
— | ||
| replacement | |||||
|
9
|
9
09163-08002-000 WASHER,LOCKRondelle |
09163-08002-000 |
US $7 |
||
|
10
|
10
82810-80102-000
Handle, out side rh
|
82810-80102-000 |
— | ||
| replacement | |||||
|
10
|
10
82810-83000-000 HANDLE,DOOR OUTSIDE,R |
82810-83000-000 |
US $79.20 |
||
|
11
|
11
82820-80102-000
Handle, out side lh
|
82820-80102-000 |
— | ||
| replacement | |||||
|
11
|
11
82820-83000-000 HANDLE,DOOR OUTSIDE,L |
82820-83000-000 |
US $79.04 |
||
|
12
|
12
82891-80100-000 SNAP,JOINT |
82891-80100-000 |
US $2.40 |
||
|
13
|
13
08316-26066-000
Nut 6mm
|
08316-26066-000 |
— | ||
| replacements | |||||
|
13
|
13
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
13
|
13
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
14
|
14
82291-80100-000 ROD,KEY CYLINDER CONTROL,R |
82291-80100-000 |
US $5.74 |
||
|
15
|
15
82292-80100-000 ROD,KEY CYLINDER CONTROL,L |
82292-80100-000 |
US $5.74 |
||
|
16
|
16
83211-80100-000 ROD,DOOR LOCK OUTSIDE HNDLE,R |
83211-80100-000 |
US $4.38 |
||
|
17
|
17
83212-80100-000 ROD,DOOR LOCK OUTSIDE HNDLE,L |
83212-80100-000 |
US $4.38 |
||
|
18
|
18
09161-04008-000 WASHER(4X12X2) |
09161-04008-000 |
US $16.20 |
||
|
19
|
19
09161-06008-000 WASHER(6.5X13X1) |
09161-06008-000 |
US $10.70 |
||
|
20
|
20
08332-11058-000
E ring
|
08332-11058-000 |
— | ||
| replacement | |||||
|
20
|
20
08332-1105A-000 E RING |
08332-1105A-000 |
from US $0.91 |
||
|
21
|
21
77716-79000-000 JOINT,ROD |
77716-79000-000 |
US $1.92 |
||
|
22
|
22
83110-80100-281
Handle, inside rh
|
83110-80100-281 |
— | ||
| replacement | |||||
|
22
|
22
83110-80102-5ES HANDLE,DOOR INSIDE,R |
83110-80102-5ES |
US $38.77 |
||
|
23
|
23
83130-80100-281
Handle, inside lh
|
83130-80100-281 |
— | ||
| replacement | |||||
|
23
|
23
83130-80102-5ES HANDLE,DOOR INSIDE,L |
83130-80102-5ES |
US $38.77 |
||
|
24
|
24
02142-06108-000
6 x 10 screw
|
02142-06108-000 |
— | ||
| replacement | |||||
|
24
|
24
02142-06107-000 SCREW |
02142-06107-000 |
from US $0.80 |
||
|
25
|
25
83241-80100-000 ROD,DOOR SAFETY LOCK,R |
83241-80100-000 |
US $4.38 |
||
|
26
|
26
83242-80100-000 ROD,DOOR SAFETY LOCK,L |
83242-80100-000 |
US $4.38 |
||
|
27
|
27
78242-61000-000 CAP,LOCK KNOB |
78242-61000-000 |
US $1.52 |
||
|
28
|
28
78241-60002-000 KNOB |
78241-60002-000 |
US $1.52 |
||
|
29
|
29
78471-79000-281
Case, inside handle rh
|
78471-79000-281 |
— | ||
| replacement | |||||
|
29
|
29
78471-79001-5ES BEZEL,DR INSIDE HDL,R |
78471-79001-5ES |
US $16.80 |
||
|
30
|
30
78481-79000-281
Case, inside handle lh
|
78481-79000-281 |
— | ||
| replacement | |||||
|
30
|
30
78481-79001-5ES BEZEL,DR INSIDE HDL,L |
78481-79001-5ES |
US $16.80 |
||
|
31
|
31
03141-04085-000
New Genuine Part
|
03141-04085-000 |
— | ||
| replacement | |||||
|
31
|
31
03141-0408A-000 SCREW |
03141-0408A-000 |
US $0.80 |
||
|
32
|
32
77400-80831-000
Key cylinder set
TYPE 1:LHD |
77400-80831-000 |
— | ||
|
32
|
32
77400-80861-000
Key cylinder set
TYPE 1:RHD |
77400-80861-000 |
— | ||
|
32
|
32
77401-80840-000
Key cylinder set
TYPE 2:LHD |
77401-80840-000 |
— | ||
|
32
|
32
77400-80821-000
Key cylinder set
TYPE 2:RHD |
77400-80821-000 |
— | ||
| replacement | |||||
|
32
|
32
77400-80822-000
ロックセット
TYPE 2:RHD |
77400-80822-000 |
— | ||
|
32
|
32
77401-80850-000
Key cylinder set
TYPE 2:,,Finland,Switzerland,Belgium,,2,4,5,Italy,Austria,Iceland |
77401-80850-000 |
— | ||
| replacement | |||||
|
32
|
32
77401-80812-000 LOCK SETTYPE 2:,,Finland,Switzerland,Belgium,,2,4,5,Italy,Austria,Iceland |
77401-80812-000 |
US $310.96 |
||
|
33
|
33
77400-80881-000
Door lock key set, rh
|
77400-80881-000 |
— | ||
| replacement | |||||
|
33
|
33
77400-70812-000 CYLINDER,FR DR LATCH LOCK,R |
77400-70812-000 |
US $36.80 |
||
|
34
|
34
77400-80891-000
Door lock key set, lh
|
77400-80891-000 |
— | ||
| replacement | |||||
|
34
|
34
77400-70812-000 CYLINDER,FR DR LATCH LOCK,R |
77400-70812-000 |
US $36.80 |
||
|
35
|
35
77461-78000-000 CLIP |
77461-78000-000 |
US $6.88 |
||
|
36
|
36
77591-75000-000 PAD |
77591-75000-000 |
US $2.28 |
||
