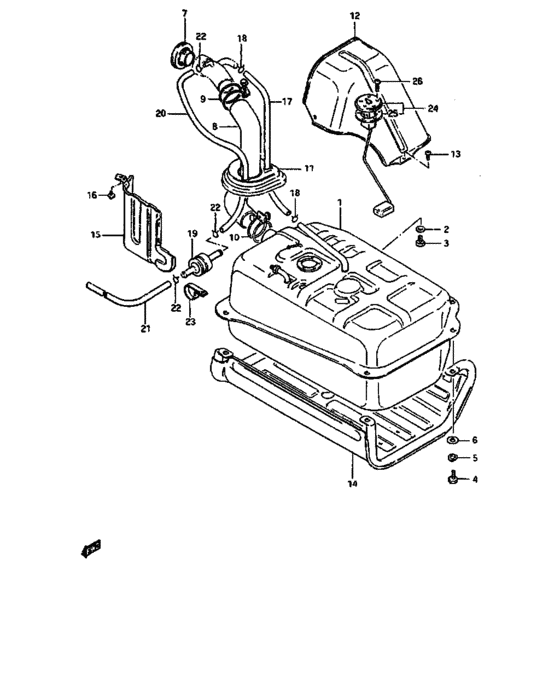

Fuel tank (,Finland,Switzerland,Belgium,2,5,Italy,Austria) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
89101-80021-000
Tank assy, fuel
|
89101-80021-000 |
— | ||
| replacement | |||||
|
1
|
1
89101-80027-000
TANK ASSY,FUEL
|
89101-80027-000 |
— | ||
|
2
|
2
09168-12005-000
ガスケット,12X21X1.5
|
09168-12005-000 |
— | ||
| replacement | |||||
|
2
|
2
09168-12018-000 GASKET(12X21X2) |
09168-12018-000 |
from US $1.60 |
||
|
3
|
3
09247-12101-000 BOLT |
09247-12101-000 |
US $2.24 |
||
|
4
|
4
01107-10306-000
ボルト
|
01107-10306-000 |
— | ||
| replacement | |||||
|
4
|
4
01500-1030A-000 BOLT |
01500-1030A-000 |
from US $0.96 |
||
|
5
|
5
08321-31106-000
Washer lock
|
08321-31106-000 |
— | ||
| replacements | |||||
|
5
|
5
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
5
|
5
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
6
|
6
09160-10001-000
Washer
|
09160-10001-000 |
— | ||
| replacement | |||||
|
6
|
6
09160-10093-000 WASHER(10.5X24X2.3) |
09160-10093-000 |
from US $1.35 |
||
|
7
|
7
85410-79202-000
キャップアッシ,フューエルタンクフィラ
|
85410-79202-000 |
— | ||
| replacement | |||||
|
7
|
7
89260-50C00-000 CAP ASSY,FUEL FILLER |
89260-50C00-000 |
from US $35.24 |
||
|
8
|
8
89241-80000-000
パイプ,インレットジョイント
|
89241-80000-000 |
— | ||
| replacements | |||||
|
8
|
8
89241-83020-000 HOSE,FUEL TANK FILLER |
89241-83020-000 |
US $99.20 |
||
|
8
|
8
89312-83030-000 PROTECTOR,INLET PIPE LOWER |
89312-83030-000 |
US $29.60 |
||
|
9
|
9
09400-60301-000 CLAMP |
09400-60301-000 |
US $1.73 |
||
|
10
|
10
09400-53301-000 CLAMP |
09400-53301-000 |
US $2.08 |
||
|
11
|
11
89281-80000-000 DUST SEAT,FUEL TANK INLET |
89281-80000-000 |
US $32 |
||
|
12
|
12
89311-80300-000 PROTECTOR,FUEL INLET UPPER |
89311-80300-000 |
US $44.16 |
||
|
13
|
13
02142-06108-000
6 x 10 screw
|
02142-06108-000 |
— | ||
| replacement | |||||
|
13
|
13
02142-06107-000 SCREW |
02142-06107-000 |
from US $0.80 |
||
|
14
|
14
89320-80000-000
Protecteur reservoir
|
89320-80000-000 |
— | ||
| replacement | |||||
|
14
|
14
89320-83002-000
PROTECTOR,FUEL TANK
|
89320-83002-000 |
— | ||
|
15
|
15
89312-80010-000
Protector, pipe lower
|
89312-80010-000 |
— | ||
| replacements | |||||
|
15
|
15
89312-83030-000 PROTECTOR,INLET PIPE LOWER |
89312-83030-000 |
US $29.60 |
||
|
15
|
15
09305-07003-000 BUSH |
09305-07003-000 |
US $16.20 |
||
|
16
|
16
01514-06106-000
Boulon
|
01514-06106-000 |
— | ||
| replacement | |||||
|
16
|
16
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
17
|
17
09343-11016-000
Hose, breather
|
09343-11016-000 |
— | ||
| replacement | |||||
|
17
|
17
09352-11163-600 HOSE(11X16X600) |
09352-11163-600 |
US $26.40 |
||
|
18
|
18
09401-16301-000 CLAMP |
09401-16301-000 |
US $12.90 |
||
|
19
|
19
85451-75100-000 VALVE,2WAY CHECKValve, check |
85451-75100-000 |
from US $30.40 |
||
|
20
|
20
09344-05040-000 Hose, valve inlet |
09344-05040-000 |
US $1.98 |
||
| replacements | |||||
|
20
|
20
09351-50803-00B HOSE(5X8X2000)Hose, overflow |
09351-50803-00B |
from US $8.66 |
||
|
20
|
20
09351-50803-00A HOSE(5X8X1000) |
09351-50803-00A |
US $10.29 |
||
|
21
|
21
09344-05040-000 Hose, valve inlet |
09344-05040-000 |
US $1.98 |
||
| replacements | |||||
|
21
|
21
09351-50803-00B HOSE(5X8X2000)Hose, overflow |
09351-50803-00B |
from US $8.66 |
||
|
21
|
21
09351-50803-00A HOSE(5X8X1000) |
09351-50803-00A |
US $10.29 |
||
|
22
|
22
09401-08402-000 CLIP |
09401-08402-000 |
US $2.18 |
||
|
23
|
23
09403-23401-000 CLAMP |
09403-23401-000 |
US $13.20 |
||
|
24
|
24
34810-80001-000
Gauge assy, fuel level
|
34810-80001-000 |
— | ||
| replacement | |||||
|
24
|
24
34810-80700-000 GAUGE ASSY,FUEL LEVEL |
34810-80700-000 |
US $66.88 |
||
|
25
|
25
34825-67012-000 GASKET |
34825-67012-000 |
US $1.60 |
||
|
26
|
26
02112-05088-000
Screw
|
02112-05088-000 |
— | ||
| replacement | |||||
|
26
|
26
02112-05087-000 SCREW |
02112-05087-000 |
from US $0.80 |
||
