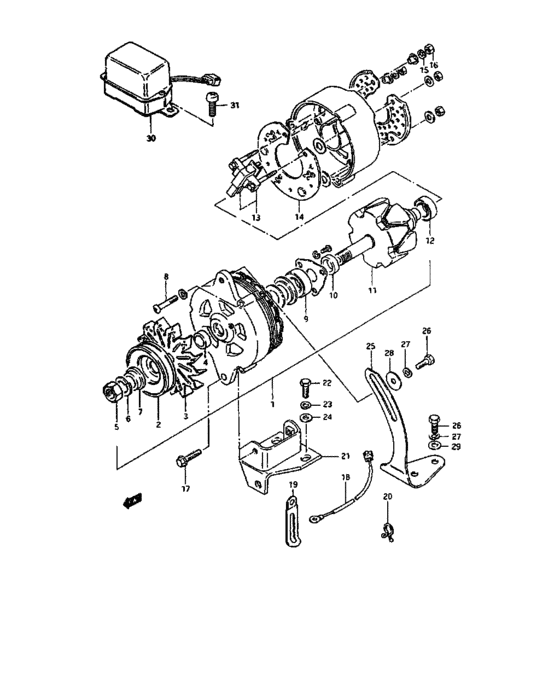

Generator (GENERATOR) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31400-72011-000
Generator assy
|
31400-72011-000 |
— | ||
| replacements | |||||
|
1
|
1
31400-72012-REM
New Genuine Part
|
31400-72012-REM |
— | ||
|
1
|
1
31400-72012-000
GENERATOR ASSY
|
31400-72012-000 |
— | ||
|
2
|
2
31171-71310-000 PULLEY |
31171-71310-000 |
US $14.45 |
||
|
3
|
3
31761-70010-000
Fan
|
31761-70010-000 |
— | ||
|
4
|
4
31791-71310-000
Spacer
|
31791-71310-000 |
— | ||
|
5
|
5
31775-55011-000
Nut
|
31775-55011-000 |
— | ||
|
6
|
6
08321-21148-000
Lock washer
|
08321-21148-000 |
— | ||
| replacement | |||||
|
6
|
6
08321-0114A-000 WASHER,LOCK |
08321-0114A-000 |
from US $0.80 |
||
|
7
|
7
31791-66010-000
Spacer
|
31791-66010-000 |
— | ||
|
8
|
8
31651-55012-000
Screw
|
31651-55012-000 |
— | ||
|
9
|
9
08140-62020-000
B1 15x35x11 bea
|
08140-62020-000 |
— | ||
| replacements | |||||
|
9
|
9
31582-60F12-000 BEARING |
31582-60F12-000 |
US $22.40 |
||
|
9
|
9
31582-82610-000
ベアリング
|
31582-82610-000 |
— | ||
|
10
|
10
31791-51010-000
Spacer
|
31791-51010-000 |
— | ||
|
11
|
11
31710-70010-000
Rotor
|
31710-70010-000 |
— | ||
| replacement | |||||
|
11
|
11
31710-72012-000
New Genuine Part
|
31710-72012-000 |
— | ||
|
12
|
12
08140-62010-000
New Genuine Part
|
08140-62010-000 |
— | ||
| replacement | |||||
|
12
|
12
31612-75110-000 BEARING |
31612-75110-000 |
US $23.18 |
||
|
13
|
13
31600-65840-000
HOLDER SET,BRUSH
|
31600-65840-000 |
— | ||
|
14
|
14
31621-65011-000
Rectifier
|
31621-65011-000 |
— | ||
|
15
|
15
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
15
|
15
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
16
|
16
08310-11066-000
Nut
|
08310-11066-000 |
— | ||
| replacements | |||||
|
16
|
16
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
16
|
16
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
17
|
17
01517-08306-000
Bolt
|
01517-08306-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0830B-000 Bolt |
01550-0830B-000 |
from US $1.06 |
||
|
17
|
17
01550-0830A-000 BOLTBolt, mount oil seal cover |
01550-0830A-000 |
from US $1.12 |
||
|
18
|
18
36748-75100-000
Wire, generator
|
36748-75100-000 |
— | ||
| replacement | |||||
|
18
|
18
36748-80000-000 WIRE,GENERATOR |
36748-80000-000 |
US $5.81 |
||
|
19
|
19
09404-08405-000
Clamp, drain tube
|
09404-08405-000 |
— | ||
| replacement | |||||
|
19
|
19
09404-08420-000 CLAMP(L:120 T:1.0) |
09404-08420-000 |
from US $2.08 |
||
|
20
|
20
09408-00012-000 CLIP(ID:11.5)Clamp, stop switch lead (id:11.5) |
09408-00012-000 |
from US $3.37 |
||
|
21
|
21
11550-79100-000 BRACKET |
11550-79100-000 |
US $14.56 |
||
|
22
|
22
01107-08208-000
Bolt
|
01107-08208-000 |
— | ||
| replacement | |||||
|
22
|
22
01500-08207-000 Bolt |
01500-08207-000 |
from US $0.76 |
||
|
23
|
23
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
23
|
23
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
24
|
24
08322-11088-000
Washer
|
08322-11088-000 |
— | ||
| replacement | |||||
|
24
|
24
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
|
25
|
25
11561-80000-000
Arm, adjuster
|
11561-80000-000 |
— | ||
| replacement | |||||
|
25
|
25
11561-85200-000 ARM,ADJUSTER |
11561-85200-000 |
US $14.08 |
||
|
26
|
26
01107-08208-000
Bolt
|
01107-08208-000 |
— | ||
| replacement | |||||
|
26
|
26
01500-08207-000 Bolt |
01500-08207-000 |
from US $0.76 |
||
|
27
|
27
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
27
|
27
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
28
|
28
09160-08030-000
Washer
|
09160-08030-000 |
— | ||
| replacement | |||||
|
28
|
28
09160-08128-000 WASHER(8.5X22X3.2) |
09160-08128-000 |
from US $3.83 |
||
|
29
|
29
09160-08050-000
Washer rr torqu
|
09160-08050-000 |
— | ||
| replacements | |||||
|
29
|
29
09160-08144-000 WASHER(8.5X16X2.6) |
09160-08144-000 |
from US $3.71 |
||
|
29
|
29
09160-08092-000 Washer |
09160-08092-000 |
from US $2.10 |
||
|
30
|
30
32500-56011-000
REGULATOR ASSY,VOLTAGE
|
32500-56011-000 |
— | ||
|
31
|
31
03141-06108-000
New Genuine Part
|
03141-06108-000 |
— | ||
| replacement | |||||
|
31
|
31
03141-0610A-000 SCREW |
03141-0610A-000 |
US $0.80 |
||
