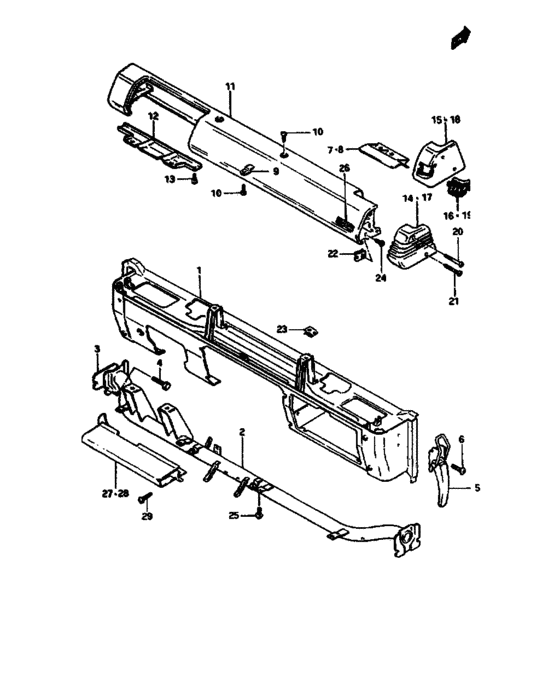

Instrument panel (INSTRUMENT PANEL) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
59600-80022-000
Panel assy, instrument
LHD |
59600-80022-000 |
— | ||
|
1
|
1
59600-80002-000
Panel assy, instrument
RHD |
59600-80002-000 |
— | ||
|
1
|
1
59600-80210-000
Panel assy, instrument
,,4 |
59600-80210-000 |
— | ||
|
1
|
1
59600-80230-000
Panel assy, instrument
Finland |
59600-80230-000 |
— | ||
|
1
|
1
59600-80220-000
Panel assy, instrument
Switzerland,Belgium,Germany,Holland,Italy,,Austria,Saudi Arabia |
59600-80220-000 |
— | ||
|
2
|
2
72310-80020-000
Holder, steering column
LHD |
72310-80020-000 |
— | ||
|
2
|
2
72310-80000-000
Holder, steering column
RHD |
72310-80000-000 |
— | ||
|
3
|
3
72321-80001-000
Bracket, steering plate
|
72321-80001-000 |
— | ||
| replacement | |||||
|
3
|
3
72321-80002-000
PLATE,STEERING COLUMN HOLDER
|
72321-80002-000 |
— | ||
|
4
|
4
01517-08166-000
Bolt 8x16
|
01517-08166-000 |
— | ||
| replacement | |||||
|
4
|
4
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
5
|
5
72430-80002-000 HANDLE,WINDOW LOCKFROM 72430-80001 |
72430-80002-000 |
US $20.42 |
||
|
6
|
6
02142-06125-000
Screw
|
02142-06125-000 |
— | ||
| replacements | |||||
|
6
|
6
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
6
|
6
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
7
|
7
73272-80021-000
Cover, wiper motor rh
LHD |
73272-80021-000 |
— | ||
|
8
|
8
73272-80001-000
Cover, wiper motor lh
RHD |
73272-80001-000 |
— | ||
|
9
|
9
73273-80001-000
Stay, instrument cover
|
73273-80001-000 |
— | ||
|
10
|
10
03241-05165-000
Screw
|
03241-05165-000 |
— | ||
| replacement | |||||
|
10
|
10
03241-0516A-000 SCREW |
03241-0516A-000 |
from US $0.76 |
||
|
11
|
11
73110-80033-000
Panel, instrument cover
LHD |
73110-80033-000 |
— | ||
|
11
|
11
73110-80002-000
Panel, instrument cover
RHD |
73110-80002-000 |
— | ||
|
11
|
11
73100-80002-45T
Panel, instrument cover
, |
73100-80002-45T |
— | ||
|
11
|
11
73100-80022-45T
Panel, instrument cover
Finland,Switzerland,Belgium,Germany,Holland,,Italy,Austria |
73100-80022-45T |
— | ||
| replacement | |||||
|
11
|
11
73100-80023-45T
Panel, instrument cover
Finland,Switzerland,Belgium,Germany,Holland,,Italy,Austria |
73100-80023-45T |
— | ||
|
12
|
12
73113-80000-000
Stay, meter hood lower
|
73113-80000-000 |
— | ||
|
13
|
13
02142-05085-000
Screw
|
02142-05085-000 |
— | ||
| replacement | |||||
|
13
|
13
02142-0508A-000 SCREWScrew, cap |
02142-0508A-000 |
from US $0.76 |
||
|
14
|
14
73250-80021-281
Garnish, side rh
LHD |
73250-80021-281 |
— | ||
|
14
|
14
73250-80001-281
Garnish, cover rh
RHD |
73250-80001-281 |
— | ||
|
15
|
15
73251-80081-281
Garnish, cover rh
, |
73251-80081-281 |
— | ||
|
15
|
15
73251-80071-281
Garnish, cover rh
Finland,Switzerland,Belgium,Germany,Holland,,Italy,Austria,Iceland |
73251-80071-281 |
— | ||
|
16
|
16
73252-80070-281
Cover, rh
,,Finland,Switzerland,Belgium,2,,5,Italy,Austria,Iceland |
73252-80070-281 |
— | ||
|
17
|
17
73260-80021-281
Garnish, side lh
LHD |
73260-80021-281 |
— | ||
|
17
|
17
73260-80001-281
Garnish, cover lh
RHD |
73260-80001-281 |
— | ||
|
18
|
18
73261-80081-281
Garnish, cover lh
, |
73261-80081-281 |
— | ||
|
18
|
18
73261-80071-281
Garnish, cover lh
Finland,Switzerland,Belgium,Germany,Holland,,Italy,Austria,Iceland |
73261-80071-281 |
— | ||
|
19
|
19
73262-80070-281
Cover, lh
,,Finland,Switzerland,Belgium,2,,5,Italy,Austria,Iceland |
73262-80070-281 |
— | ||
|
20
|
20
09139-05018-000
Screw, garnish
|
09139-05018-000 |
— | ||
|
21
|
21
73271-80000-000
Screw, garnish
|
73271-80000-000 |
— | ||
|
22
|
22
09148-05013-000 NUT |
09148-05013-000 |
from US $0.91 |
||
|
23
|
23
09148-05003-000 NUT |
09148-05003-000 |
US $1.28 |
||
|
24
|
24
03242-05163-000
Screw
|
03242-05163-000 |
— | ||
| replacement | |||||
|
24
|
24
03241-0516A-000 SCREW |
03241-0516A-000 |
from US $0.76 |
||
|
25
|
25
01517-06126-000
Bolt m6x1x12
|
01517-06126-000 |
— | ||
| replacements | |||||
|
25
|
25
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
25
|
25
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
26
|
26
77811-80001-000
Emblem, cover
|
77811-80001-000 |
— | ||
|
27
|
27
73510-80001-42A
Pad, instrument rh
, |
73510-80001-42A |
— | ||
|
28
|
28
73560-80001-42A
Pad, instrument lh
Finland,Switzerland,Belgium,Germany,Holland,Italy,Austria |
73560-80001-42A |
— | ||
|
29
|
29
03111-06125-000
New Genuine Part
,,Finland,Switzerland,Belgium,2,,5,Italy,Austria |
03111-06125-000 |
— | ||
| replacement | |||||
|
29
|
29
03111-0612A-000 SCREW,,Finland,Switzerland,Belgium,2,,5,Italy,Austria |
03111-0612A-000 |
US $0.80 |
||
