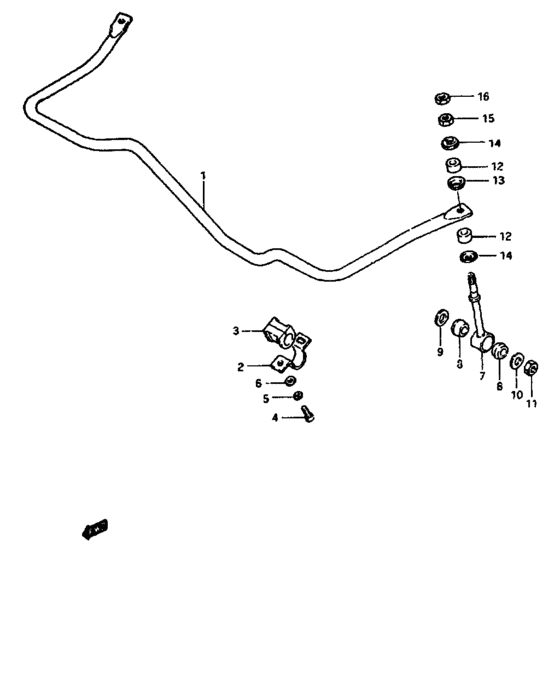

Rear stabilizer (REAR STABILIZER) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46611-80000-000
Stabilizer, rear
|
46611-80000-000 |
— | ||
|
2
|
2
46621-80000-000
Bracket, mounting
|
46621-80000-000 |
— | ||
|
3
|
3
46625-80000-000 BUSH,FR STABILIZER MOUNT |
46625-80000-000 |
US $13.28 |
||
|
4
|
4
01107-10256-000
Bolt 10x25 upper
|
01107-10256-000 |
— | ||
| replacement | |||||
|
4
|
4
01500-1025A-000 Bolt |
01500-1025A-000 |
US $0.91 |
||
|
5
|
5
08321-21106-000
Lock washer
|
08321-21106-000 |
— | ||
| replacements | |||||
|
5
|
5
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
5
|
5
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
6
|
6
08322-11106-000
Washer 10.5x18x1.6
|
08322-11106-000 |
— | ||
| replacements | |||||
|
6
|
6
08322-0110B-000 WASHERWasher, knuckle end |
08322-0110B-000 |
from US $0.76 |
||
|
6
|
6
08322-0110A-000 WASHERWasher, knuckle end |
08322-0110A-000 |
from US $0.80 |
||
|
7
|
7
46630-80000-000
Rod, stabilizer
|
46630-80000-000 |
— | ||
|
8
|
8
09320-16006-000
ブッシュ
|
09320-16006-000 |
— | ||
| replacement | |||||
|
8
|
8
41781-52010-000 BUSHING,SHOCK ABSORBER NO.1 |
41781-52010-000 |
US $2.24 |
||
|
9
|
9
08322-21156-000
Washer, inner
|
08322-21156-000 |
— | ||
|
10
|
10
09160-12055-000
New Genuine Part
|
09160-12055-000 |
— | ||
| replacement | |||||
|
10
|
10
09160-12073-000 WASHER(12.5X32X2.3)Washer (12.5x32x2.3) |
09160-12073-000 |
from US $0.96 |
||
|
11
|
11
08310-12126-000
Nut
|
08310-12126-000 |
— | ||
| replacement | |||||
|
11
|
11
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
|
12
|
12
09320-10024-000 CUSHION |
09320-10024-000 |
from US $3.04 |
||
|
13
|
13
09169-15001-000
Washer, center
|
09169-15001-000 |
— | ||
| replacement | |||||
|
13
|
13
09169-15002-000 WASHER |
09169-15002-000 |
US $7.68 |
||
|
14
|
14
09165-10001-000
Retainer, cushion
|
09165-10001-000 |
— | ||
| replacement | |||||
|
14
|
14
09165-10002-000 WASHER |
09165-10002-000 |
from US $2.08 |
||
|
15
|
15
08310-12106-000
Nut
|
08310-12106-000 |
— | ||
| replacements | |||||
|
15
|
15
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
15
|
15
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
16
|
16
08310-22106-000
Nut
|
08310-22106-000 |
— | ||
| replacements | |||||
|
16
|
16
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
16
|
16
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
