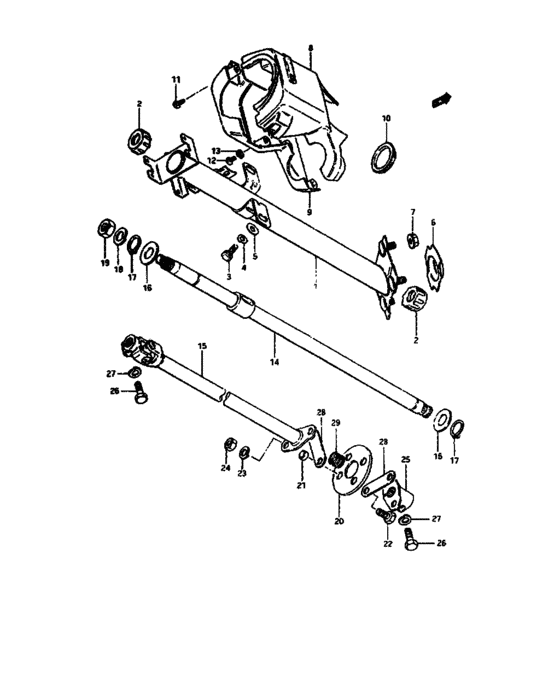

Steering shaft (STEERING SHAFT) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
48381-51040-000
ブッシュ
|
48381-51040-000 |
— | ||
| replacement | |||||
|
2
|
2
48381-51041-000 BUSHING,STRG COLUMN |
48381-51041-000 |
US $5.93 |
||
|
3
|
3
01107-08206-000
Bolt
|
01107-08206-000 |
— | ||
| replacement | |||||
|
3
|
3
01500-0820A-000 Bolt |
01500-0820A-000 |
from US $0.80 |
||
|
4
|
4
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
4
|
4
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
4
|
4
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
5
|
5
08322-11086-000
Washer
|
08322-11086-000 |
— | ||
| replacements | |||||
|
5
|
5
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
5
|
5
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
6
|
6
48491-80000-000 SEAL,STEERING COLUMN |
48491-80000-000 |
US $2.13 |
||
|
7
|
7
08316-16086-000
Nut, reverse lever pivot
|
08316-16086-000 |
— | ||
| replacement | |||||
|
7
|
7
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
8
|
8
48411-80150-000
Cover, steering upper
LHD |
48411-80150-000 |
— | ||
|
8
|
8
48411-80050-000
Cover, steering upper
RHD |
48411-80050-000 |
— | ||
|
9
|
9
48421-80100-000
Cover, steering lower
LHD |
48421-80100-000 |
— | ||
|
9
|
9
48420-75080-000
Cover, steering lower
RHD |
48420-75080-000 |
— | ||
|
10
|
10
48419-75000-000 SEAL,STEERING COVER |
48419-75000-000 |
US $1.60 |
||
|
11
|
11
03211-05166-000
Screw, l:16
|
03211-05166-000 |
— | ||
| replacement | |||||
|
11
|
11
03211-0516A-000 SCREW |
03211-0516A-000 |
US $0.80 |
||
|
12
|
12
02112-05126-000
Screw m5x.08x12
|
02112-05126-000 |
— | ||
| replacement | |||||
|
12
|
12
02112-0512A-000 SCREW |
02112-0512A-000 |
from US $0.80 |
||
|
13
|
13
08321-21056-000
Lock washer
|
08321-21056-000 |
— | ||
| replacements | |||||
|
13
|
13
08321-0105B-000 WASHER,LOCK |
08321-0105B-000 |
from US $0.77 |
||
|
13
|
13
08321-0105A-000 WASHER,LOCK |
08321-0105A-000 |
from US $0.76 |
||
|
14
|
14
48210-80010-000
Shaft, steering upper
|
48210-80010-000 |
— | ||
|
15
|
15
48220-80000-000
Shaft, steering lower
|
48220-80000-000 |
— | ||
|
16
|
16
09160-17021-000
Washer
|
09160-17021-000 |
— | ||
| replacement | |||||
|
16
|
16
09160-17501-XC0 WASHER(17.5X34X2) |
09160-17501-XC0 |
from US $1.92 |
||
|
17
|
17
08331-31176-000
Circlip
|
08331-31176-000 |
— | ||
| replacement | |||||
|
17
|
17
08331-31179-000 CIRCLIP |
08331-31179-000 |
from US $0.96 |
||
|
18
|
18
09162-12004-000
Lock washer
|
09162-12004-000 |
— | ||
| replacement | |||||
|
18
|
18
08321-0112A-000 WASHER,LOCK |
08321-0112A-000 |
from US $0.76 |
||
|
19
|
19
09140-12022-000
ナット
|
09140-12022-000 |
— | ||
| replacement | |||||
|
19
|
19
09159-12025-000 NUT |
09159-12025-000 |
US $1.82 |
||
|
20
|
20
48251-52000-000 JOINT,RUBBER |
48251-52000-000 |
from US $4 |
||
|
21
|
21
09180-08007-000 SPACER(8.1X11X9) |
09180-08007-000 |
from US $1.12 |
||
|
22
|
22
01107-08256-000
Bolt
|
01107-08256-000 |
— | ||
| replacement | |||||
|
22
|
22
01500-0825A-000 Bolt |
01500-0825A-000 |
from US $0.91 |
||
|
23
|
23
08321-31086-000
Lock washer
|
08321-31086-000 |
— | ||
| replacements | |||||
|
23
|
23
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
23
|
23
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
24
|
24
08310-12086-000
ナット
|
08310-12086-000 |
— | ||
| replacements | |||||
|
24
|
24
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
24
|
24
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
25
|
25
48270-80000-000
Bride
|
48270-80000-000 |
— | ||
| replacement | |||||
|
25
|
25
48270-80011-000 FLANGE,STRG RUBBER JOINT |
48270-80011-000 |
US $20 |
||
|
26
|
26
09111-08052-000
ボルト
|
09111-08052-000 |
— | ||
| replacement | |||||
|
26
|
26
09111-08066-000 BOLT(8X30) |
09111-08066-000 |
US $1.92 |
||
|
27
|
27
08321-31086-000
Lock washer
|
08321-31086-000 |
— | ||
| replacements | |||||
|
27
|
27
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
27
|
27
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
28
|
28
48262-58000-000
Plaque
|
48262-58000-000 |
— | ||
| replacement | |||||
|
28
|
28
48262-58001-000 PLATE,STRG RUBBER JOINT |
48262-58001-000 |
US $1.60 |
||
|
29
|
29
09440-18002-000 SPRING |
09440-18002-000 |
from US $1.06 |
||
