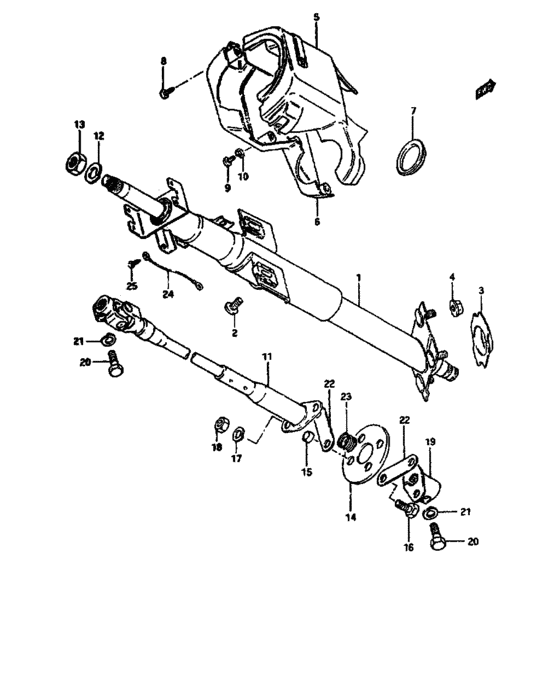

Steering shaft (,Finland,Switzerland,Belgium,2,5,Italy,Austria,Saudi Arabia) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48200-80010-000
Column assy, steering
KOYO |
48200-80010-000 |
— | ||
|
1
|
1
48200-80020-000
Column assy, steering
NSK |
48200-80020-000 |
— | ||
|
2
|
2
09125-08005-000
スクリュ,8X25
|
09125-08005-000 |
— | ||
| replacement | |||||
|
2
|
2
09139-08015-000 SCREW(8X30) |
09139-08015-000 |
US $1.92 |
||
|
3
|
3
48491-80000-000 SEAL,STEERING COLUMN |
48491-80000-000 |
US $2.13 |
||
|
4
|
4
08316-16086-000
Nut, reverse lever pivot
|
08316-16086-000 |
— | ||
| replacement | |||||
|
4
|
4
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
5
|
5
48411-80050-000
Cover, steering upper
, |
48411-80050-000 |
— | ||
|
5
|
5
48411-80150-000
Cover, steering upper
Finland,Switzerland,Belgium,Germany,Holland,Italy,Austria |
48411-80150-000 |
— | ||
|
6
|
6
48420-75080-000
Cover, steering lower
, |
48420-75080-000 |
— | ||
|
6
|
6
48421-80100-000
Cover, steering lower
Finland,Switzerland,Belgium,Germany,Holland,Italy,Austria |
48421-80100-000 |
— | ||
|
7
|
7
48419-75000-000 SEAL,STEERING COVER |
48419-75000-000 |
US $1.60 |
||
|
8
|
8
03211-05166-000
Screw, l:16
|
03211-05166-000 |
— | ||
| replacement | |||||
|
8
|
8
03211-0516A-000 SCREW |
03211-0516A-000 |
US $0.80 |
||
|
9
|
9
02112-05126-000
Screw m5x.08x12
|
02112-05126-000 |
— | ||
| replacement | |||||
|
9
|
9
02112-0512A-000 SCREW |
02112-0512A-000 |
from US $0.80 |
||
|
10
|
10
08321-21056-000
Lock washer
|
08321-21056-000 |
— | ||
| replacements | |||||
|
10
|
10
08321-0105B-000 WASHER,LOCK |
08321-0105B-000 |
from US $0.77 |
||
|
10
|
10
08321-0105A-000 WASHER,LOCK |
08321-0105A-000 |
from US $0.76 |
||
|
11
|
11
48220-80010-000
Shaft, steering lower
KOYO |
48220-80010-000 |
— | ||
| replacement | |||||
|
11
|
11
48220-80011-000
Shaft, steering lower
KOYO |
48220-80011-000 |
— | ||
|
11
|
11
48220-80030-000
Shaft, steering lower
NSK |
48220-80030-000 |
— | ||
|
12
|
12
09162-12004-000
Lock washer
|
09162-12004-000 |
— | ||
| replacement | |||||
|
12
|
12
08321-0112A-000 WASHER,LOCK |
08321-0112A-000 |
from US $0.76 |
||
|
13
|
13
09140-12022-000
ナット
|
09140-12022-000 |
— | ||
| replacement | |||||
|
13
|
13
09159-12025-000 NUT |
09159-12025-000 |
US $1.82 |
||
|
14
|
14
48251-52000-000 JOINT,RUBBER |
48251-52000-000 |
from US $4 |
||
|
15
|
15
09180-08007-000 SPACER(8.1X11X9) |
09180-08007-000 |
from US $1.12 |
||
|
16
|
16
01107-08256-000
Bolt
|
01107-08256-000 |
— | ||
| replacement | |||||
|
16
|
16
01500-0825A-000 Bolt |
01500-0825A-000 |
from US $0.91 |
||
|
17
|
17
08321-31086-000
Lock washer
|
08321-31086-000 |
— | ||
| replacements | |||||
|
17
|
17
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
17
|
17
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
18
|
18
08310-12086-000
ナット
|
08310-12086-000 |
— | ||
| replacements | |||||
|
18
|
18
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
18
|
18
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
19
|
19
48270-80000-000
Bride
|
48270-80000-000 |
— | ||
| replacement | |||||
|
19
|
19
48270-80011-000 FLANGE,STRG RUBBER JOINT |
48270-80011-000 |
US $20 |
||
|
20
|
20
09111-08052-000
ボルト
|
09111-08052-000 |
— | ||
| replacement | |||||
|
20
|
20
09111-08066-000 BOLT(8X30) |
09111-08066-000 |
US $1.92 |
||
|
21
|
21
08321-31086-000
Lock washer
|
08321-31086-000 |
— | ||
| replacements | |||||
|
21
|
21
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
21
|
21
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
22
|
22
48262-58000-000
Plaque
|
48262-58000-000 |
— | ||
| replacement | |||||
|
22
|
22
48262-58001-000 PLATE,STRG RUBBER JOINT |
48262-58001-000 |
US $1.60 |
||
|
23
|
23
09440-18002-000 SPRING |
09440-18002-000 |
from US $1.06 |
||
|
24
|
24
48528-80000-000
Lead wire,horn earth
|
48528-80000-000 |
— | ||
|
25
|
25
03141-04086-000
New Genuine Part
|
03141-04086-000 |
— | ||
| replacement | |||||
|
25
|
25
03141-0408A-000 SCREW |
03141-0408A-000 |
US $0.80 |
||
