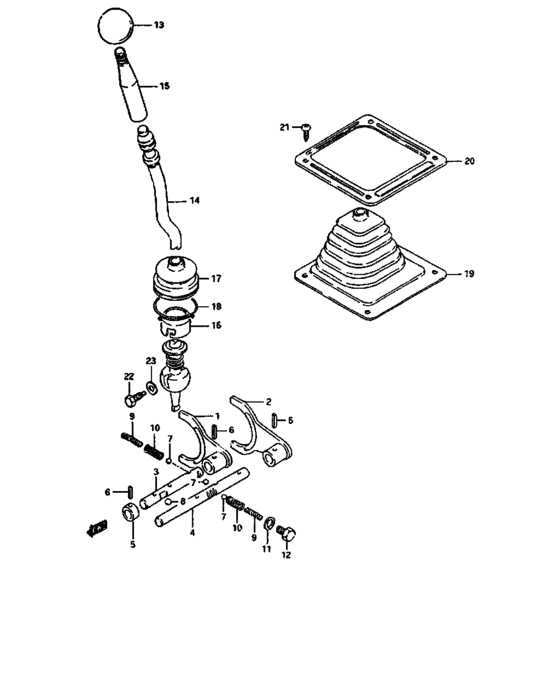

Transfer gear shifting (~SJ41-102927, ~SJ41000501000) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29310-80000-000
Fork, front drive shifting
|
29310-80000-000 |
— | ||
|
2
|
2
29320-80000-000
Fork, reduction shifting
|
29320-80000-000 |
— | ||
|
3
|
3
29332-80001-000
Shaft, front drive shifting
TYPE 1 |
29332-80001-000 |
— | ||
|
3
|
3
29332-80100-000
Shaft, front drive shifting
TYPE 2 |
29332-80100-000 |
— | ||
|
4
|
4
29331-80001-000
Shaft, reduction shifting
TYPE 1 |
29331-80001-000 |
— | ||
|
4
|
4
29331-80100-000
Shaft, reduction shifting
TYPE 2 |
29331-80100-000 |
— | ||
|
5
|
5
29314-80000-000
Pipe, lever stop
|
29314-80000-000 |
— | ||
|
6
|
6
09205-04003-000 PIN,SPRING(4.5X18) |
09205-04003-000 |
US $1.60 |
||
|
7
|
7
06112-10004-000 BALL |
06112-10004-000 |
from US $0.68 |
||
| replacement | |||||
|
7
|
7
06111-10003-000 BALL |
06111-10003-000 |
from US $0.80 |
||
|
8
|
8
06112-12004-000
Ball
TYPE 2 |
06112-12004-000 |
— | ||
| replacement | |||||
|
8
|
8
06111-12004-000 BALLTYPE 2 |
06111-12004-000 |
from US $1.12 |
||
|
9
|
9
09440-04011-000
SPRING
|
09440-04011-000 |
— | ||
|
10
|
10
09440-07005-000 SPRING |
09440-07005-000 |
US $10.30 |
||
|
11
|
11
09168-10007-000 GASKET(10.1X16X1)Gasket, parking pawl |
09168-10007-000 |
from US $1.60 |
||
|
12
|
12
09100-10004-000
Muffler drain p
|
09100-10004-000 |
— | ||
| replacement | |||||
|
12
|
12
09128-10002-000 BOLT(10X9) |
09128-10002-000 |
from US $1.28 |
||
|
13
|
13
29344-80000-000
Boule levier
|
29344-80000-000 |
— | ||
| replacement | |||||
|
13
|
13
29344-80050-000 KNOB,T/F GEAR SHIFT CONT |
29344-80050-000 |
US $15.96 |
||
|
14
|
14
29340-80100-000
Lever, control lower
|
29340-80100-000 |
— | ||
|
15
|
15
29343-80100-000
Lever, control upper
|
29343-80100-000 |
— | ||
|
16
|
16
28121-60000-000
SEAT,LEVER GUIDE
|
28121-60000-000 |
— | ||
|
17
|
17
29345-80000-000
BOOT,LEVER NO.1
|
29345-80000-000 |
— | ||
|
18
|
18
09401-50402-000 CLIP |
09401-50402-000 |
US $2.88 |
||
|
19
|
19
29346-80100-000
Boot, lever no.2
|
29346-80100-000 |
— | ||
|
20
|
20
29347-80001-000
カバー,ブーツ
|
29347-80001-000 |
— | ||
| replacement | |||||
|
20
|
20
29347-80010-000 COVER,T/F CONT LEVER BOOT |
29347-80010-000 |
US $12 |
||
|
21
|
21
03141-06166-000
New Genuine Part
|
03141-06166-000 |
— | ||
| replacement | |||||
|
21
|
21
03141-0616A-000 SCREW |
03141-0616A-000 |
from US $0.76 |
||
|
22
|
22
09135-08001-000
Boulon
|
09135-08001-000 |
— | ||
| replacement | |||||
|
22
|
22
09135-08006-000 BOLT(8X20) |
09135-08006-000 |
US $2.24 |
||
|
23
|
23
08322-11088-000
Washer
|
08322-11088-000 |
— | ||
| replacement | |||||
|
23
|
23
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
