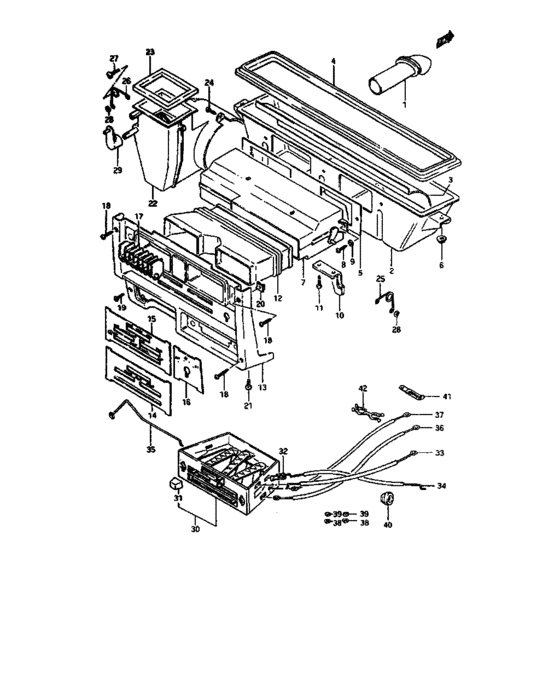

Ventilator - heater control (VENTILATOR - HEATER CONTROL) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
73641-80001-000
Hose, ventilator
|
73641-80001-000 |
— | ||
|
2
|
2
73611-80003-000
Box, cowl ventilator
|
73611-80003-000 |
— | ||
|
3
|
3
73612-80002-000
Cover, ventilator box
|
73612-80002-000 |
— | ||
|
4
|
4
73613-80001-000
Weatherstrip
|
73613-80001-000 |
— | ||
|
5
|
5
73617-80001-000
Packing, box
HEATER TYPE |
73617-80001-000 |
— | ||
|
5
|
5
73617-80021-000
Packing, box
NONHEATER TYPE |
73617-80021-000 |
— | ||
|
6
|
6
08316-16066-000
Nut
|
08316-16066-000 |
— | ||
| replacement | |||||
|
6
|
6
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
7
|
7
74201-80011-000
Box, heater control
|
74201-80011-000 |
— | ||
|
8
|
8
03141-05166-000
New Genuine Part
|
03141-05166-000 |
— | ||
| replacement | |||||
|
8
|
8
03141-0516A-000 SCREW |
03141-0516A-000 |
from US $0.80 |
||
|
9
|
9
09163-05001-000 WASHER,LOCK |
09163-05001-000 |
US $7.70 |
||
|
10
|
10
74231-80001-000
Holder, cable
|
74231-80001-000 |
— | ||
|
11
|
11
03141-05166-000
New Genuine Part
|
03141-05166-000 |
— | ||
| replacement | |||||
|
11
|
11
03141-0516A-000 SCREW |
03141-0516A-000 |
from US $0.80 |
||
|
12
|
12
74611-80001-000
Duct, ventilator
|
74611-80001-000 |
— | ||
|
13
|
13
73211-80031-281
Panel, center
|
73211-80031-281 |
— | ||
|
14
|
14
73212-80011-000
Plate, nonheater
NONHEATER TYPE |
73212-80011-000 |
— | ||
|
15
|
15
73212-80001-000
Plate, heater
HEATER TYPE |
73212-80001-000 |
— | ||
|
16
|
16
73213-80001-000
Emblem,heater switch
HEATER TYPE |
73213-80001-000 |
— | ||
|
17
|
17
73220-80000-281
Lever,center ventilator
|
73220-80000-281 |
— | ||
|
18
|
18
03211-05255-000
Screw 5x25
|
03211-05255-000 |
— | ||
| replacement | |||||
|
18
|
18
03212-0525B-000 SCREW |
03212-0525B-000 |
US $0.80 |
||
|
19
|
19
03211-05405-000
Screw
|
03211-05405-000 |
— | ||
| replacement | |||||
|
19
|
19
03212-0540B-000 SCREW |
03212-0540B-000 |
US $16.60 |
||
|
20
|
20
09148-05013-000 NUT |
09148-05013-000 |
from US $0.91 |
||
|
21
|
21
01517-06128-000
Bolt
|
01517-06128-000 |
— | ||
| replacement | |||||
|
21
|
21
01550-06127-000 BOLTBolt, rect |
01550-06127-000 |
from US $0.68 |
||
|
22
|
22
74250-80003-000
Box, heater duct
|
74250-80003-000 |
— | ||
|
23
|
23
74253-80001-000
Packing, duct
|
74253-80001-000 |
— | ||
| replacement | |||||
|
23
|
23
74253-80002-000
Packing, duct
|
74253-80002-000 |
— | ||
|
24
|
24
03141-05166-000
New Genuine Part
|
03141-05166-000 |
— | ||
| replacement | |||||
|
24
|
24
03141-0516A-000 SCREW |
03141-0516A-000 |
from US $0.80 |
||
|
25
|
25
74317-80002-000
Spring, heater box
|
74317-80002-000 |
— | ||
|
26
|
26
74319-80000-000
Spring, heater duct
|
74319-80000-000 |
— | ||
|
27
|
27
03141-05206-000
Screw 5x20
|
03141-05206-000 |
— | ||
| replacement | |||||
|
27
|
27
03141-0520B-000 SCREW |
03141-0520B-000 |
US $2.56 |
||
|
28
|
28
09148-05006-000 NUT |
09148-05006-000 |
from US $0.74 |
||
|
29
|
29
74313-80001-000
Lever, duct
|
74313-80001-000 |
— | ||
|
30
|
30
74400-80021-000
Control assy, vent
NONHEATER TYPE |
74400-80021-000 |
— | ||
|
30
|
30
74400-80001-000
Control assy, vent
HEATER TYPE |
74400-80001-000 |
— | ||
|
31
|
31
74418-80000-000
Knob, lever control
|
74418-80000-000 |
— | ||
|
32
|
32
74416-80000-000
HOLDER,CABLE
|
74416-80000-000 |
— | ||
|
33
|
33
74511-80001-000
WIRE,VENTILATOR CONTROL
|
74511-80001-000 |
— | ||
|
34
|
34
74512-80060-000
Cable,air control
|
74512-80060-000 |
— | ||
|
35
|
35
74513-80001-000 WIRE,CIRC/FRESH CONTROL |
74513-80001-000 |
US $3.31 |
||
|
36
|
36
74514-80001-000
WIRE,ROOM&DEF CONTROL
|
74514-80001-000 |
— | ||
|
37
|
37
74515-80001-000
WIRE,HEATER CONT
|
74515-80001-000 |
— | ||
|
38
|
38
09148-04010-000 NUTEcrou |
09148-04010-000 |
from US $1.12 |
||
|
39
|
39
09161-06008-000 WASHER(6.5X13X1) |
09161-06008-000 |
US $10.70 |
||
|
40
|
40
82191-80002-000
Grommet, cool / hot
FROM 82191-80001 |
82191-80002-000 |
— | ||
| replacement | |||||
|
40
|
40
82191-50E00-000 GROMMET,LATCH RELEASE CABLEFROM 82191-80001 |
82191-50E00-000 |
US $3.52 |
||
|
41
|
41
09404-06401-000
Clamp, oil hose
|
09404-06401-000 |
— | ||
| replacements | |||||
|
41
|
41
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
|
41
|
41
09404-06206-000
CLAMP(L:45)
|
09404-06206-000 |
— | ||
|
41
|
41
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
41
|
41
09404-06031-000 Clamp,rsvr Tank Ovfl Hose |
09404-06031-000 |
from US $1.37 |
||
|
42
|
42
09408-00009-000
Clip
|
09408-00009-000 |
— | ||
