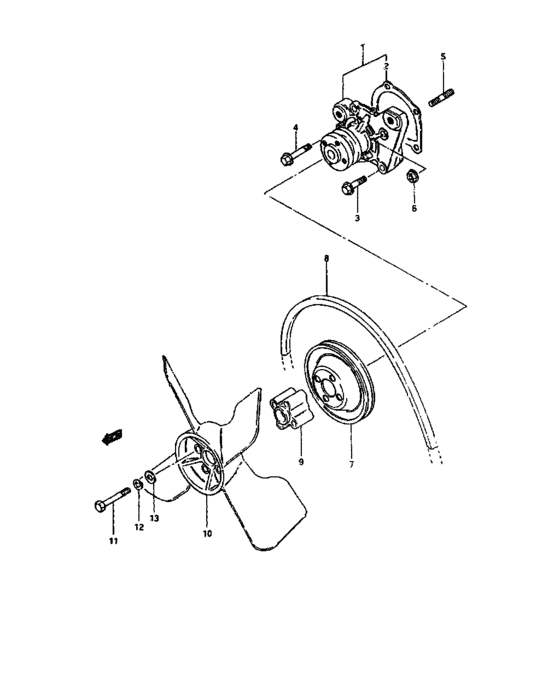

Water pump (WATER PUMP) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17400-73820-000
Pump assy, water
|
17400-73820-000 |
— | ||
| replacement | |||||
|
1
|
1
17400-78821-000 PUMP ASSY,WATER |
17400-78821-000 |
US $113.60 |
||
|
2
|
2
17431-73001-000 GASKET,WATER PUMP |
17431-73001-000 |
US $1.82 |
||
|
3
|
3
01517-06306-000
Bolt 6x30
|
01517-06306-000 |
— | ||
| replacement | |||||
|
3
|
3
01550-0630A-000 BOLT |
01550-0630A-000 |
from US $0.96 |
||
|
4
|
4
01517-06406-000
Bolt 6x40
|
01517-06406-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0640B-000 Bolt |
01550-0640B-000 |
from US $0.96 |
||
|
4
|
4
01550-0640A-000 BoltBolt (l:40) |
01550-0640A-000 |
from US $3.83 |
||
|
5
|
5
09108-06040-000
BOLT,STUD
|
09108-06040-000 |
— | ||
|
6
|
6
08316-16066-000
Nut
|
08316-16066-000 |
— | ||
| replacement | |||||
|
6
|
6
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
7
|
7
17511-73001-000 PULLEY,WATER PUMP |
17511-73001-000 |
US $20 |
||
|
8
|
8
17521-71520-000 BELT,WATER PUMP L:758 |
17521-71520-000 |
from US $9.92 |
||
|
8
|
8
17521-75100-000 V-BELT, L:771FM-30.5 Saudi Arabia |
17521-75100-000 |
US $9.92 |
||
|
9
|
9
17131-80000-000 HUB,COOLING FAN |
17131-80000-000 |
US $16.72 |
||
|
10
|
10
17111-73000-000 FAN,ENG COOLING |
17111-73000-000 |
US $39.74 |
||
|
10
|
10
17111-73010-000
FAN,ENG COOLING
Saudi Arabia |
17111-73010-000 |
— | ||
|
11
|
11
01107-06506-000
Bolt
|
01107-06506-000 |
— | ||
| replacement | |||||
|
11
|
11
01500-0650A-000 Bolt |
01500-0650A-000 |
US $0.80 |
||
|
12
|
12
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
12
|
12
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
13
|
13
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
13
|
13
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
