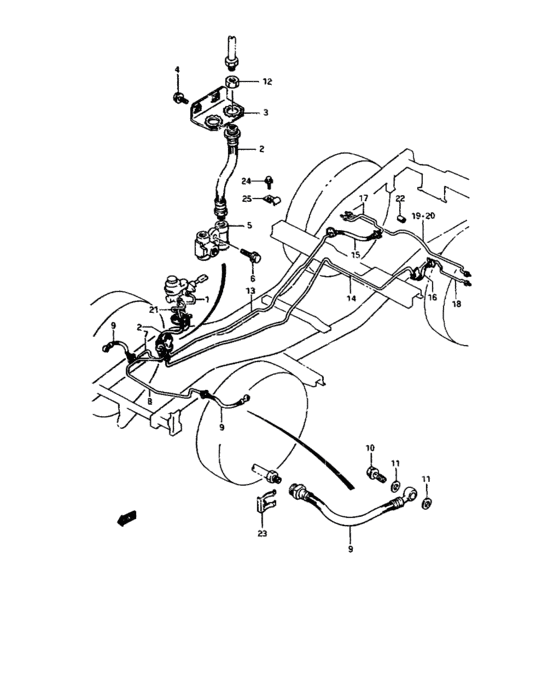

Brake piping (BRAKE PIPING) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51410-80020-000
Pipe, brake no.1
TYPE 3 |
51410-80020-000 |
— | ||
|
1
|
1
51410-80060-000
PIPE,BRAKE NO.1
TYPE 4,TYPE 5 |
51410-80060-000 |
— | ||
|
2
|
2
51570-83030-000
ホース,マスタシリンダフレキシブル
|
51570-83030-000 |
— | ||
| replacement | |||||
|
2
|
2
51570-80030-000 HOSE,MASTER CYLINDER FLEXIBLE |
51570-80030-000 |
US $12.80 |
||
|
3
|
3
51712-83001-000 BRACKET,MA CYL HOSE<-51712-83000 |
51712-83001-000 |
US $2.72 |
||
|
4
|
4
01517-06163-000
Bolt
|
01517-06163-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
4
|
4
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
5
|
5
51640-80000-000 JOINT,5WAY BRAKE |
51640-80000-000 |
US $64.77 |
||
|
6
|
6
01517-06253-000
ボルト
|
01517-06253-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0625A-000 BOLTBolt |
01550-0625A-000 |
from US $0.96 |
||
|
6
|
6
01550-0625B-000 BOLTBolt, head cover |
01550-0625B-000 |
from US $0.91 |
||
|
7
|
7
51420-80020-000
パイプ,ブレーキ,NO.2
|
51420-80020-000 |
— | ||
|
8
|
8
51430-80020-000
Pipe,brake no.3
|
51430-80020-000 |
— | ||
|
9
|
9
51540-80151-000 HOSE,FR BRAKE FLEXIBLE<-51540-80150 |
51540-80151-000 |
US $13.83 |
||
|
10
|
10
09360-10026-000 Union bolt |
09360-10026-000 |
from US $1.85 |
||
|
11
|
11
09161-10009-000 WASHER(10X15X1.5)Lock washer |
09161-10009-000 |
from US $1.06 |
||
|
12
|
12
09140-16007-000 NUT |
09140-16007-000 |
US $1.92 |
||
|
13
|
13
51460-80020-000 PIPE,BRAKE NO.6O,Q,V |
51460-80020-000 |
US $21.90 |
||
|
13
|
13
51460-80320-000 PIPE,BRAKE NO.6W |
51460-80320-000 |
US $25.94 |
||
|
14
|
14
51460-80120-000
Pipe, brake no.6
|
51460-80120-000 |
— | ||
|
15
|
15
51580-80131-000 HOSE,RR BRAKE FLEXIBLE<-51580-80130 |
51580-80131-000 |
US $29.81 |
||
|
16
|
16
51560-80131-000
Flexible hose, rear
TYPE 3,<-51560-80130 |
51560-80131-000 |
— | ||
|
16
|
16
51560-83031-000 HOSE,RR BRAKE FLEXIBLETYPE 4,TYPE 5 |
51560-83031-000 |
US $17.60 |
||
|
17
|
17
51470-80020-000 PIPE,BRAKE NO.7 |
51470-80020-000 |
US $15.01 |
||
|
18
|
18
51470-80120-000
Pipe, brake no.7
|
51470-80120-000 |
— | ||
|
19
|
19
51480-80010-000 PIPE,BRAKE NO.8 |
51480-80010-000 |
US $21.90 |
||
|
20
|
20
51480-80110-000
Pipe, brake no. 8
|
51480-80110-000 |
— | ||
|
21
|
21
51520-80020-000
Pipe, brake no.12
TYPE 3 |
51520-80020-000 |
— | ||
|
21
|
21
51520-80060-000
Pipe,brake,no.12
TYPE 4,TYPE 5 |
51520-80060-000 |
— | ||
|
22
|
22
51755-67000-000
New Genuine Part
|
51755-67000-000 |
— | ||
| replacement | |||||
|
22
|
22
51755-77200-000 PROTECTOR,BRAKE PIPE |
51755-77200-000 |
US $4.56 |
||
|
23
|
23
09383-13001-000 E RING |
09383-13001-000 |
from US $1.60 |
||
| replacement | |||||
|
23
|
23
09383-13003-000 E-RING |
09383-13003-000 |
from US $1.60 |
||
|
24
|
24
09132-06006-000 SCREW(6X12)W |
09132-06006-000 |
US $1.60 |
||
|
25
|
25
09403-05302-000 CLAMPClamp W |
09403-05302-000 |
US $1.28 |
||
