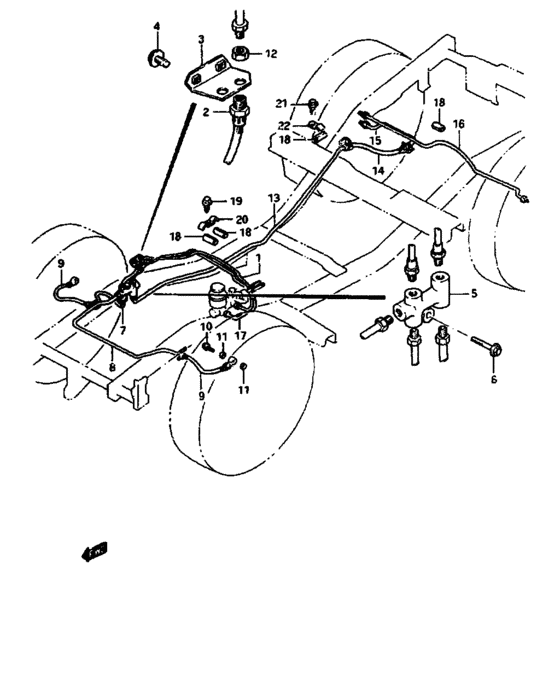

Brake piping (BRAKE PIPING) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51410-80110-000
Pipe, brake no.1
LHD |
51410-80110-000 |
— | ||
|
1
|
1
51410-80010-000
Pipe, brake no.1
RHD |
51410-80010-000 |
— | ||
|
2
|
2
51570-80030-000 HOSE,MASTER CYLINDER FLEXIBLE |
51570-80030-000 |
US $12.80 |
||
|
3
|
3
51712-80001-000
Bracket, moster cylinder
|
51712-80001-000 |
— | ||
|
4
|
4
01517-06166-000
Bolt
|
01517-06166-000 |
— | ||
| replacement | |||||
|
4
|
4
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
5
|
5
51640-73000-000 JOINT,5WAY |
51640-73000-000 |
US $64.77 |
||
|
6
|
6
01517-06356-000
Bolt, lever
|
01517-06356-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0635B-000 Bolt |
01550-0635B-000 |
from US $0.91 |
||
|
6
|
6
01550-0635A-000 Bolt |
01550-0635A-000 |
from US $0.96 |
||
|
7
|
7
51420-80010-000
Pipe,brake no.2
|
51420-80010-000 |
— | ||
|
8
|
8
51430-80010-000
Pipe, brake no.3
|
51430-80010-000 |
— | ||
|
9
|
9
51540-80050-000 HOSE,FR BRAKE FLEXIBLE |
51540-80050-000 |
US $39.38 |
||
|
10
|
10
09360-10016-000
Bolt
|
09360-10016-000 |
— | ||
| replacement | |||||
|
10
|
10
09360-10017-000 UNIONBolt (10x1.00x24) |
09360-10017-000 |
from US $1.68 |
||
|
11
|
11
09161-10005-000
Washer
|
09161-10005-000 |
— | ||
| replacement | |||||
|
11
|
11
09161-10009-000 WASHER(10X15X1.5)Lock washer |
09161-10009-000 |
from US $1.06 |
||
|
12
|
12
09140-16007-000 NUT |
09140-16007-000 |
US $1.92 |
||
|
13
|
13
51460-80300-000
Pipe, brake no.6
|
51460-80300-000 |
— | ||
|
14
|
14
51560-73030-000
HOSE,FLEXIBLE
|
51560-73030-000 |
— | ||
|
15
|
15
51470-80010-000
PIPE,BRAKE NO.7
|
51470-80010-000 |
— | ||
|
16
|
16
51480-80010-000 PIPE,BRAKE NO.8 |
51480-80010-000 |
US $21.90 |
||
|
17
|
17
51520-80110-000
Pipe, brake no.12
LHD |
51520-80110-000 |
— | ||
|
17
|
17
51520-80010-000
Pipe, brake no.12
RHD |
51520-80010-000 |
— | ||
|
18
|
18
51755-67000-000
New Genuine Part
LHD |
51755-67000-000 |
— | ||
| replacement | |||||
|
18
|
18
51755-77200-000 PROTECTOR,BRAKE PIPELHD |
51755-77200-000 |
US $4.56 |
||
|
19
|
19
09132-05001-000
Screw
LHD |
09132-05001-000 |
— | ||
|
20
|
20
09403-08310-000 CLAMPLHD |
09403-08310-000 |
US $1.12 |
||
|
21
|
21
09132-06006-000 SCREW(6X12) |
09132-06006-000 |
US $1.60 |
||
|
22
|
22
09403-05302-000 CLAMPClamp |
09403-05302-000 |
US $1.28 |
||
