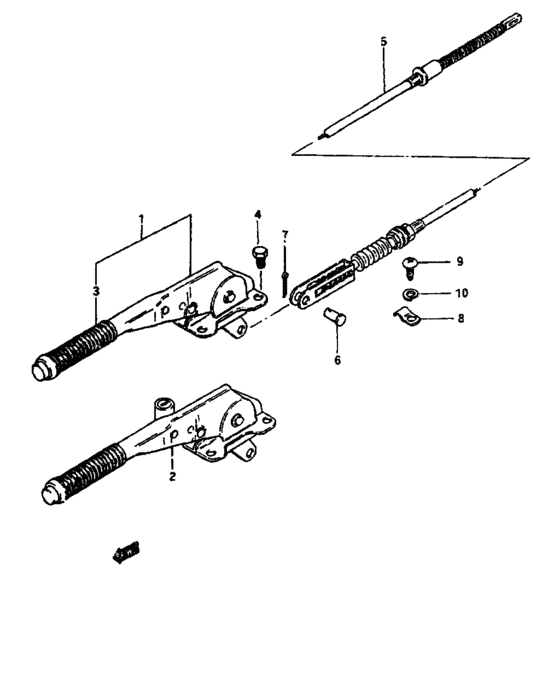

Center brake lever (CENTER BRAKE LEVER) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54100-80011-000
Lever assy, center brake
|
54100-80011-000 |
— | ||
| replacement | |||||
|
1
|
1
54100-80113-000 LEVER ASSY,CTR BRAKE |
54100-80113-000 |
US $85.38 |
||
|
1
|
1
54100-80111-000
Lever assy, center brake
,,Finland,Switzerland,Belgium,2,,4,5,Italy,Austria,Saudi Arabia |
54100-80111-000 |
— | ||
| replacement | |||||
|
1
|
1
54100-80113-000 LEVER ASSY,CTR BRAKE,,Finland,Switzerland,Belgium,2,,4,5,Italy,Austria,Saudi Arabia |
54100-80113-000 |
US $85.38 |
||
|
2
|
2
54100-80211-000
Lever assy, center brake
OPT, KEY LOCK TYPE |
54100-80211-000 |
— | ||
| replacement | |||||
|
2
|
2
54100-80313-000 LEVER ASSY,CTR BRAKEOPT, KEY LOCK TYPE |
54100-80313-000 |
US $212.80 |
||
|
2
|
2
54100-80311-000
Lever assy, center brake
,,Finland,Switzerland,Belgium,2,,4,5,Italy,Austria,Saudi Arabia:OPT,KEY LOCK TYPE |
54100-80311-000 |
— | ||
| replacement | |||||
|
2
|
2
54100-80313-000 LEVER ASSY,CTR BRAKE,,Finland,Switzerland,Belgium,2,,4,5,Italy,Austria,Saudi Arabia:OPT,KEY LOCK TYPE |
54100-80313-000 |
US $212.80 |
||
|
3
|
3
54112-64010-000 CLIP |
54112-64010-000 |
US $20.53 |
||
|
4
|
4
01107-06126-000
Bolt 6x12
|
01107-06126-000 |
— | ||
| replacement | |||||
|
4
|
4
01500-0612A-000 BOLT |
01500-0612A-000 |
from US $0.76 |
||
|
5
|
5
54640-80010-000
Cable, center brske
|
54640-80010-000 |
— | ||
| replacement | |||||
|
5
|
5
54640-80011-000 CABLE,CENTER BRAKE |
54640-80011-000 |
US $74.40 |
||
|
6
|
6
09200-08039-000 PIN |
09200-08039-000 |
US $1.28 |
||
|
7
|
7
04111-25206-000
コッタピン
|
04111-25206-000 |
— | ||
| replacement | |||||
|
7
|
7
04111-2520A-000 PIN |
04111-2520A-000 |
from US $0.80 |
||
|
8
|
8
09403-05302-000 CLAMPClamp |
09403-05302-000 |
US $1.28 |
||
|
9
|
9
03111-06126-000
Screw
|
03111-06126-000 |
— | ||
| replacement | |||||
|
9
|
9
03111-0612A-000 SCREW |
03111-0612A-000 |
US $0.80 |
||
|
10
|
10
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
10
|
10
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
