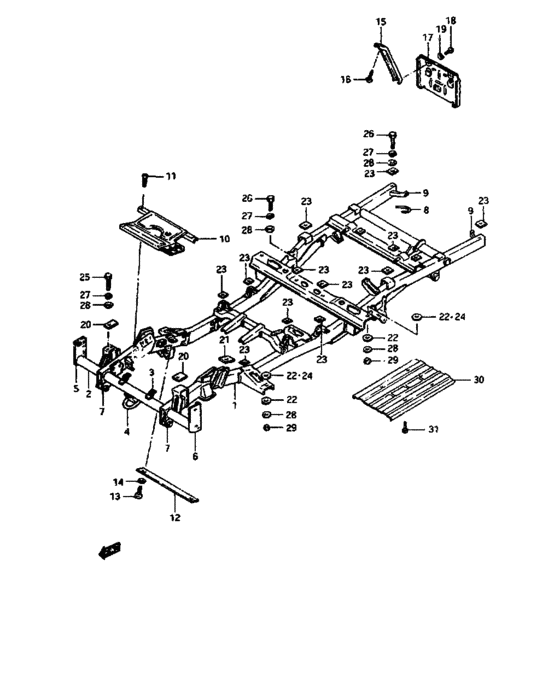

Chassis frame (CHASSIS FRAME) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57000-80320-000
Chassis frame
LHD |
57000-80320-000 |
— | ||
|
1
|
1
57000-80300-000
Chassis frame
RHD |
57000-80300-000 |
— | ||
|
1
|
1
57000-80330-000
Chassis frame
, |
57000-80330-000 |
— | ||
|
1
|
1
57000-80350-000
Chassis frame
Finland,Switzerland,Belgium,Germany,Holland,,Italy,Austria |
57000-80350-000 |
— | ||
|
2
|
2
57211-80000-000 CROSSMEMBER,1ST |
57211-80000-000 |
US $163.20 |
||
|
3
|
3
57212-80001-000 BRACKET,ENG SPLASH PNL FR |
57212-80001-000 |
US $3.42 |
||
|
4
|
4
57270-80000-000
Hook, front
|
57270-80000-000 |
— | ||
|
5
|
5
57461-80001-000 BRACKET,FR BUMPER,R |
57461-80001-000 |
US $13.44 |
||
|
6
|
6
57471-80001-000 BRACKET,FR BUMPER,L |
57471-80001-000 |
US $8.02 |
||
|
7
|
7
57710-80000-000 HANGER,FR SPRING FR |
57710-80000-000 |
US $30.36 |
||
|
8
|
8
57951-80300-000
Hook, rear
|
57951-80300-000 |
— | ||
|
9
|
9
57481-80300-000
Bracket, rear bumper
|
57481-80300-000 |
— | ||
|
10
|
10
71410-80041-000
Panneau tolerie
LHD, FROM 71410-80040 |
71410-80041-000 |
— | ||
| replacement | |||||
|
10
|
10
71400-80813-000
PANEL SET,ENGINE SPLASH
LHD, FROM 71410-80040 |
71400-80813-000 |
— | ||
|
10
|
10
71410-80000-000
Panel, engine splash rh
RHD |
71410-80000-000 |
— | ||
| replacement | |||||
|
10
|
10
71400-80813-000
PANEL SET,ENGINE SPLASH
RHD |
71400-80813-000 |
— | ||
|
11
|
11
03241-06108-000
Screw
|
03241-06108-000 |
— | ||
| replacement | |||||
|
11
|
11
03241-0610A-000 SCREW |
03241-0610A-000 |
US $0.76 |
||
|
12
|
12
71441-80001-000
Member, sub
|
71441-80001-000 |
— | ||
|
13
|
13
01107-10208-000
Bolt
|
01107-10208-000 |
— | ||
| replacement | |||||
|
13
|
13
01500-1020B-000 BOLTBolt, axle bearing housing |
01500-1020B-000 |
from US $0.76 |
||
|
14
|
14
08321-21108-000
Lock washer
|
08321-21108-000 |
— | ||
| replacement | |||||
|
14
|
14
08321-01107-000 WASHER,LOCKLock washer |
08321-01107-000 |
from US $0.76 |
||
|
15
|
15
75421-80300-000
SUPPORT,REAR LICENSE BRACKET
|
75421-80300-000 |
— | ||
|
16
|
16
03141-06168-000
スクリュ
|
03141-06168-000 |
— | ||
| replacement | |||||
|
16
|
16
03141-0616A-000 SCREW |
03141-0616A-000 |
from US $0.76 |
||
|
17
|
17
57151-73003-000 BRACKET,RR LICENSE PLATE |
57151-73003-000 |
US $18.24 |
||
|
17
|
17
71481-80030-000
Support immatric
,,Switzerland,Belgium,2,5,,7,Italy,Austria |
71481-80030-000 |
— | ||
| replacement | |||||
|
17
|
17
71481-80031-000 BRACKET,RR LICENSE,,Switzerland,Belgium,2,5,,7,Italy,Austria |
71481-80031-000 |
US $28.34 |
||
|
18
|
18
02112-06126-000
Screw 6x12
|
02112-06126-000 |
— | ||
| replacements | |||||
|
18
|
18
02112-0612B-000 SCREWScrew, oil guide plate |
02112-0612B-000 |
from US $0.76 |
||
|
18
|
18
02112-0612A-000 SCREW |
02112-0612A-000 |
from US $0.76 |
||
|
19
|
19
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
19
|
19
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
20
|
20
71491-80000-000
Cachet
45X45X15 |
71491-80000-000 |
— | ||
| replacement | |||||
|
20
|
20
71491-80002-000 PAD,BODY MOUNTING NO.145X45X15 |
71491-80002-000 |
US $10.56 |
||
|
21
|
21
71493-80000-000
Pad, body mount no.3
45X45X12 |
71493-80000-000 |
— | ||
| replacement | |||||
|
21
|
21
71493-83001-000 PAD,BODY MOUNTING NO.345X45X12 |
71493-83001-000 |
US $19.20 |
||
|
22
|
22
71494-80001-000 PAD,BODY MOUNTING NO.49.5X40X8 |
71494-80001-000 |
US $1.60 |
||
|
23
|
23
57321-52001-000 PAD,BODY MOUNTING NO.2 |
57321-52001-000 |
US $2.24 |
||
|
23
|
23
71492-80010-000
Pad, body mount no.2
|
71492-80010-000 |
— | ||
| replacement | |||||
|
23
|
23
71492-80011-000 PAD,BODY MOUNTING NO.2 |
71492-80011-000 |
US $8.64 |
||
|
24
|
24
73221-67400-000 PAD,MOUNTING |
73221-67400-000 |
US $2.13 |
||
|
25
|
25
01107-10408-000
Bolt
|
01107-10408-000 |
— | ||
| replacement | |||||
|
25
|
25
01500-10407-000 Bolt |
01500-10407-000 |
from US $0.91 |
||
|
26
|
26
01107-10308-000
Bolt 10x30
|
01107-10308-000 |
— | ||
| replacement | |||||
|
26
|
26
01500-1030A-000 BOLT |
01500-1030A-000 |
from US $0.96 |
||
|
27
|
27
08321-31108-000
Lock washer
|
08321-31108-000 |
— | ||
| replacement | |||||
|
27
|
27
08321-01107-000 WASHER,LOCKLock washer |
08321-01107-000 |
from US $0.76 |
||
|
28
|
28
09160-10002-000
ワッシャ,10.5X30X3.2
|
09160-10002-000 |
— | ||
| replacement | |||||
|
28
|
28
09160-10094-000 WASHER(10.5X30X3.2) |
09160-10094-000 |
from US $1.12 |
||
|
29
|
29
09159-10017-000
ナット
|
09159-10017-000 |
— | ||
| replacement | |||||
|
29
|
29
09159-10016-000 NUTNut, clamp bracket |
09159-10016-000 |
US $2.24 |
||
|
30
|
30
75431-80300-000
PANEL,HEAT PROTECTOR
|
75431-80300-000 |
— | ||
|
31
|
31
03141-06128-000
Mold.inner fix.screw
|
03141-06128-000 |
— | ||
| replacement | |||||
|
31
|
31
03141-0612A-000 SCREW |
03141-0612A-000 |
US $0.76 |
||
