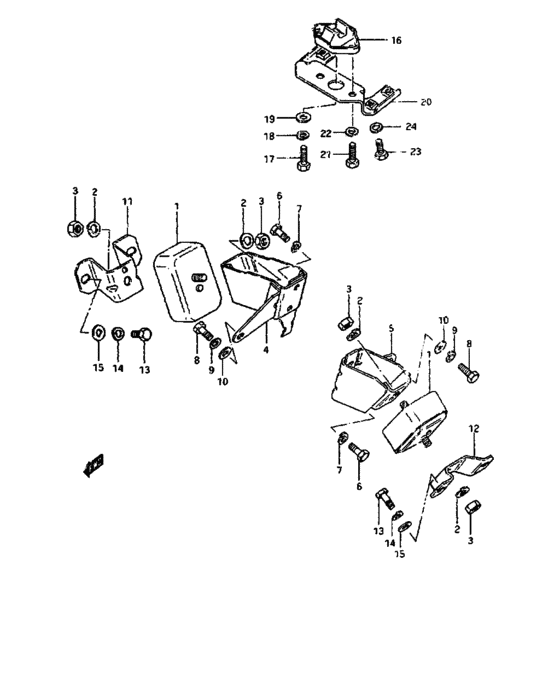

Engine mounting (ENGINE MOUNTING) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-80000-000
Mounting, engine front
|
11610-80000-000 |
— | ||
| replacement | |||||
|
1
|
1
11610-82C00-000 MOUNTING,ENG FR |
11610-82C00-000 |
US $113.60 |
||
|
2
|
2
08321-21106-000
Lock washer
|
08321-21106-000 |
— | ||
| replacements | |||||
|
2
|
2
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
2
|
2
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
3
|
3
08310-12106-000
Nut
|
08310-12106-000 |
— | ||
| replacements | |||||
|
3
|
3
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
3
|
3
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
4
|
4
11640-80001-000
Bracket,engine fr rh
|
11640-80001-000 |
— | ||
|
5
|
5
11650-80001-000
Bracket, front lh
|
11650-80001-000 |
— | ||
| replacement | |||||
|
5
|
5
11650-80010-000 BRACKET,ENG FR,L |
11650-80010-000 |
US $60.80 |
||
|
6
|
6
01107-08256-000
Bolt
|
01107-08256-000 |
— | ||
| replacement | |||||
|
6
|
6
01500-0825A-000 Bolt |
01500-0825A-000 |
from US $0.91 |
||
|
7
|
7
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
7
|
7
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
7
|
7
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
8
|
8
01107-08206-000
Bolt
|
01107-08206-000 |
— | ||
| replacement | |||||
|
8
|
8
01500-0820A-000 Bolt |
01500-0820A-000 |
from US $0.80 |
||
|
9
|
9
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
9
|
9
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
9
|
9
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
10
|
10
08322-11086-000
Washer
|
08322-11086-000 |
— | ||
| replacements | |||||
|
10
|
10
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
10
|
10
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
11
|
11
11661-80000-000
Bracket, body side rh
TYPE 1 |
11661-80000-000 |
— | ||
| replacement | |||||
|
11
|
11
11661-80002-000 BRACKET,FRAME SIDE MTG,RTYPE 1 |
11661-80002-000 |
US $8.10 |
||
|
11
|
11
11661-80001-000
ブラケット,エンジンフロントボディサイド,ライト
TYPE 2 |
11661-80001-000 |
— | ||
| replacement | |||||
|
11
|
11
11661-80002-000 BRACKET,FRAME SIDE MTG,RTYPE 2 |
11661-80002-000 |
US $8.10 |
||
|
12
|
12
11671-80000-000
Bracket, body side lh
TYPE 1 |
11671-80000-000 |
— | ||
| replacement | |||||
|
12
|
12
11671-80011-000 BRACKET,FRAME SIDE MTG,LTYPE 1 |
11671-80011-000 |
US $8.46 |
||
|
12
|
12
11671-80002-000
Bracket, body side lh
TYPE 2 |
11671-80002-000 |
— | ||
| replacement | |||||
|
12
|
12
11671-80011-000 BRACKET,FRAME SIDE MTG,LTYPE 2 |
11671-80011-000 |
US $8.46 |
||
|
13
|
13
01107-08256-000
Bolt
TYPE 1 |
01107-08256-000 |
— | ||
| replacement | |||||
|
13
|
13
01500-0825A-000 BoltTYPE 1 |
01500-0825A-000 |
from US $0.91 |
||
|
13
|
13
01107-10306-000
ボルト
TYPE 2 |
01107-10306-000 |
— | ||
| replacement | |||||
|
13
|
13
01500-1030A-000 BOLTTYPE 2 |
01500-1030A-000 |
from US $0.96 |
||
|
14
|
14
08321-21036-000
Lock washer
TYPE 1 |
08321-21036-000 |
— | ||
| replacement | |||||
|
14
|
14
08321-2103B-000 WASHER,LOCKTYPE 1 |
08321-2103B-000 |
from US $7.70 |
||
|
14
|
14
08321-31006-000
Lock washer
TYPE 2 |
08321-31006-000 |
— | ||
|
15
|
15
09160-08010-000 Washer (8.2x20x1.6)TYPE 1 |
09160-08010-000 |
US $1.21 |
||
| replacement | |||||
|
15
|
15
09160-08054-000 WASHER(8.5X20X1.6)TYPE 1 |
09160-08054-000 |
from US $0.91 |
||
|
15
|
15
09160-10001-000
Washer
TYPE 2 |
09160-10001-000 |
— | ||
| replacement | |||||
|
15
|
15
09160-10093-000 WASHER(10.5X24X2.3)TYPE 2 |
09160-10093-000 |
from US $1.35 |
||
|
16
|
16
11710-80000-000
Mounting, engine rear
|
11710-80000-000 |
— | ||
| replacement | |||||
|
16
|
16
11710-80011-000 MOUNTING,ENG RR |
11710-80011-000 |
US $121.60 |
||
|
17
|
17
01107-08206-000
Bolt
|
01107-08206-000 |
— | ||
| replacement | |||||
|
17
|
17
01500-0820A-000 Bolt |
01500-0820A-000 |
from US $0.80 |
||
|
18
|
18
08321-01086-000
Lock washer
|
08321-01086-000 |
— | ||
|
19
|
19
08322-41086-000
Washer
|
08322-41086-000 |
— | ||
|
20
|
20
11740-80002-000
Bracket, rear mounting
|
11740-80002-000 |
— | ||
| replacement | |||||
|
20
|
20
11740-80X50-000
BRACKET,ENG RR MTG
|
11740-80X50-000 |
— | ||
|
21
|
21
01107-08166-000
Bolt m8x1.25x16
|
01107-08166-000 |
— | ||
| replacement | |||||
|
21
|
21
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
22
|
22
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
22
|
22
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
22
|
22
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
23
|
23
01107-08166-000
Bolt m8x1.25x16
|
01107-08166-000 |
— | ||
| replacement | |||||
|
23
|
23
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
24
|
24
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
24
|
24
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
24
|
24
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
