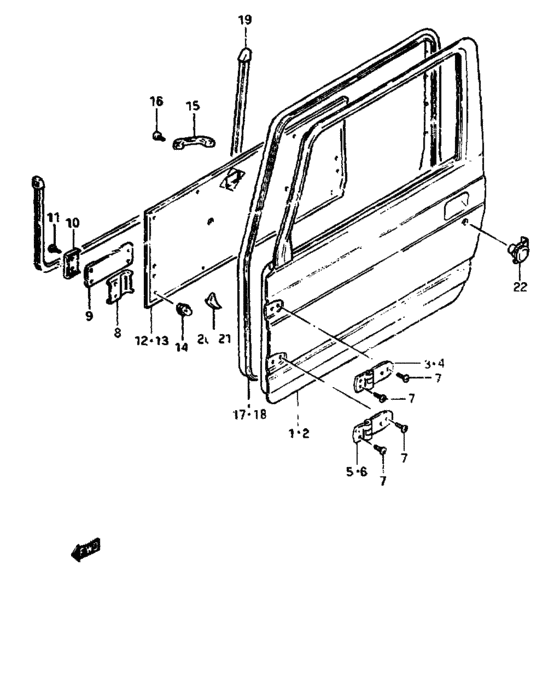

Front door (FRONT DOOR) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68001-80133-000
Panel, front door rh
|
68001-80133-000 |
— | ||
| replacements | |||||
|
1
|
1
03111-0625A-000 SCREW |
03111-0625A-000 |
from US $0.80 |
||
|
1
|
1
03241-0612A-000 SCREW |
03241-0612A-000 |
US $0.80 |
||
|
1
|
1
09148-06007-000 NUT |
09148-06007-000 |
from US $0.86 |
||
|
1
|
1
68001-80C12-000 PANEL ASSY,FRONT DOOR,R |
68001-80C12-000 |
US $983.44 |
||
|
1
|
1
82201-82C00-000 LATCH ASSY,FR DR,R |
82201-82C00-000 |
from US $103.41 |
||
|
1
|
1
82610-70D02-000 STRIKER,FR DOOR LATCH |
82610-70D02-000 |
US $20 |
||
|
1
|
1
03111-06253-000
Screw
|
03111-06253-000 |
— | ||
|
1
|
1
03241-06123-000
Screw
|
03241-06123-000 |
— | ||
|
1
|
1
68001-80123-000
パネルアッシ,ドア,ライト(ミラー:アリ)
,,Finland,Switzerland,Belgium,2,,5,Italy,Austria,Iceland |
68001-80123-000 |
— | ||
| replacements | |||||
|
1
|
1
68001-80C12-000 PANEL ASSY,FRONT DOOR,R,,Finland,Switzerland,Belgium,2,,5,Italy,Austria,Iceland |
68001-80C12-000 |
US $983.44 |
||
|
1
|
1
03111-0625A-000 SCREW,,Finland,Switzerland,Belgium,2,,5,Italy,Austria,Iceland |
03111-0625A-000 |
from US $0.80 |
||
|
1
|
1
03241-0612A-000 SCREW,,Finland,Switzerland,Belgium,2,,5,Italy,Austria,Iceland |
03241-0612A-000 |
US $0.80 |
||
|
1
|
1
09148-06007-000 NUT,,Finland,Switzerland,Belgium,2,,5,Italy,Austria,Iceland |
09148-06007-000 |
from US $0.86 |
||
|
1
|
1
82201-82C00-000 LATCH ASSY,FR DR,R,,Finland,Switzerland,Belgium,2,,5,Italy,Austria,Iceland |
82201-82C00-000 |
from US $103.41 |
||
|
1
|
1
82610-70D02-000 STRIKER,FR DOOR LATCH,,Finland,Switzerland,Belgium,2,,5,Italy,Austria,Iceland |
82610-70D02-000 |
US $20 |
||
|
1
|
1
03111-06253-000
Screw
,,Finland,Switzerland,Belgium,2,,5,Italy,Austria,Iceland |
03111-06253-000 |
— | ||
|
1
|
1
03241-06123-000
Screw
,,Finland,Switzerland,Belgium,2,,5,Italy,Austria,Iceland |
03241-06123-000 |
— | ||
|
2
|
2
68002-80133-000
Panel, front door lh
|
68002-80133-000 |
— | ||
| replacements | |||||
|
2
|
2
03111-0625A-000 SCREW |
03111-0625A-000 |
from US $0.80 |
||
|
2
|
2
03241-0612A-000 SCREW |
03241-0612A-000 |
US $0.80 |
||
|
2
|
2
09148-06007-000 NUT |
09148-06007-000 |
from US $0.86 |
||
|
2
|
2
68002-80C12-000
PANEL ASSY,FRONT DOOR,L
|
68002-80C12-000 |
— | ||
|
2
|
2
82202-82C00-000 LATCH ASSY,FR DR,L |
82202-82C00-000 |
US $104.14 |
||
|
2
|
2
82610-70D02-000 STRIKER,FR DOOR LATCH |
82610-70D02-000 |
US $20 |
||
|
2
|
2
03111-06253-000
Screw
|
03111-06253-000 |
— | ||
|
2
|
2
03241-06123-000
Screw
|
03241-06123-000 |
— | ||
|
2
|
2
68002-80123-000
パネルアッシ,ドア,レフト(ミラー:アリ)
,,Finland,Switzerland,Belgium,2,,5,Italy,Austria,Iceland |
68002-80123-000 |
— | ||
| replacements | |||||
|
2
|
2
68002-80C12-000
PANEL ASSY,FRONT DOOR,L
,,Finland,Switzerland,Belgium,2,,5,Italy,Austria,Iceland |
68002-80C12-000 |
— | ||
|
2
|
2
03111-0625A-000 SCREW,,Finland,Switzerland,Belgium,2,,5,Italy,Austria,Iceland |
03111-0625A-000 |
from US $0.80 |
||
|
2
|
2
03241-0612A-000 SCREW,,Finland,Switzerland,Belgium,2,,5,Italy,Austria,Iceland |
03241-0612A-000 |
US $0.80 |
||
|
2
|
2
09148-06007-000 NUT,,Finland,Switzerland,Belgium,2,,5,Italy,Austria,Iceland |
09148-06007-000 |
from US $0.86 |
||
|
2
|
2
82202-82C00-000 LATCH ASSY,FR DR,L,,Finland,Switzerland,Belgium,2,,5,Italy,Austria,Iceland |
82202-82C00-000 |
US $104.14 |
||
|
2
|
2
82610-70D02-000 STRIKER,FR DOOR LATCH,,Finland,Switzerland,Belgium,2,,5,Italy,Austria,Iceland |
82610-70D02-000 |
US $20 |
||
|
2
|
2
03111-06253-000
Screw
,,Finland,Switzerland,Belgium,2,,5,Italy,Austria,Iceland |
03111-06253-000 |
— | ||
|
2
|
2
03241-06123-000
Screw
,,Finland,Switzerland,Belgium,2,,5,Italy,Austria,Iceland |
03241-06123-000 |
— | ||
|
3
|
3
69310-80110-000 HINGE,FR DOOR UPPER RH |
69310-80110-000 |
US $61.60 |
||
|
4
|
4
69340-80110-000
ヒンジ,ドアアッパ,レフト
|
69340-80110-000 |
— | ||
| replacement | |||||
|
4
|
4
69310-80110-000 HINGE,FR DOOR UPPER RH |
69310-80110-000 |
US $61.60 |
||
|
5
|
5
69320-80110-000 HINGE,FR DOOR LOWER RH |
69320-80110-000 |
US $52 |
||
|
6
|
6
69350-80110-000
ヒンジ,ドアロア,レフト
|
69350-80110-000 |
— | ||
| replacement | |||||
|
6
|
6
69320-80110-000 HINGE,FR DOOR LOWER RH |
69320-80110-000 |
US $52 |
||
|
7
|
7
09125-08002-000
スクリュ,8X20
|
09125-08002-000 |
— | ||
| replacement | |||||
|
7
|
7
09125-08015-XC0 SCREW(8X20) |
09125-08015-XC0 |
US $1.60 |
||
|
8
|
8
76182-63100-000
Prutector, trim
|
76182-63100-000 |
— | ||
| replacement | |||||
|
8
|
8
76182-63101-000 PROTECTOR,OPENING TRIM |
76182-63101-000 |
US $13.60 |
||
|
9
|
9
81811-80100-000 BAND,DR OPEN STOPPER |
81811-80100-000 |
US $12.31 |
||
|
10
|
10
76182-58001-000
Garnish
|
76182-58001-000 |
— | ||
| replacement | |||||
|
10
|
10
76182-58002-000 GARNISH,DR OPEN STOPPER |
76182-58002-000 |
US $1.82 |
||
|
11
|
11
02132-05208-000
Screw
|
02132-05208-000 |
— | ||
| replacement | |||||
|
11
|
11
02122-0520A-000 SCREW |
02122-0520A-000 |
from US $0.80 |
||
|
12
|
12
83710-80121-877
Trim, door rh
|
83710-80121-877 |
— | ||
| replacement | |||||
|
12
|
12
83710-80141-5GT TRIM,FRONT DOOR,R |
83710-80141-5GT |
US $113.25 |
||
|
12
|
12
83710-80141-46Z
Trim, door rh
Finland |
83710-80141-46Z |
— | ||
| replacement | |||||
|
12
|
12
83710-80141-5GT TRIM,FRONT DOOR,RFinland |
83710-80141-5GT |
US $113.25 |
||
|
13
|
13
83720-80121-877
Trim, door lh
|
83720-80121-877 |
— | ||
| replacement | |||||
|
13
|
13
83720-80141-5GT TRIM,FRONT DOOR,L |
83720-80141-5GT |
US $113.25 |
||
|
13
|
13
83720-80141-46Z
Trim, door lh
Finland |
83720-80141-46Z |
— | ||
| replacement | |||||
|
13
|
13
83720-80141-5GT TRIM,FRONT DOOR,LFinland |
83720-80141-5GT |
US $113.25 |
||
|
14
|
14
09409-08305-000
Clip
|
09409-08305-000 |
— | ||
| replacements | |||||
|
14
|
14
09409-08320-000 CLIP |
09409-08320-000 |
from US $1.15 |
||
|
14
|
14
09409-08309-000
CLIP
|
09409-08309-000 |
— | ||
|
15
|
15
78271-58053-281
Handle, door inside pull black
|
78271-58053-281 |
— | ||
| replacement | |||||
|
15
|
15
78271-58054-5ES HANDLE,DOOR INSIDE PULL |
78271-58054-5ES |
US $16.80 |
||
|
16
|
16
09125-06041-000 SCREW(6X20) |
09125-06041-000 |
US $1.76 |
||
|
17
|
17
84641-80121-000
ウェザストリップ,ドアオープニング,ライト
|
84641-80121-000 |
— | ||
| replacement | |||||
|
17
|
17
84641-82CA0-000 WEATHERSTRIP,FR DR OPNG,R |
84641-82CA0-000 |
US $133.60 |
||
|
18
|
18
84651-80121-000
ウェザストリップ,ドアオープニング,レフト
|
84651-80121-000 |
— | ||
| replacement | |||||
|
18
|
18
84651-82CA0-000 WEATHERSTRIP,FR DR OPNG,L |
84651-82CA0-000 |
US $133.60 |
||
|
19
|
19
84630-80000-000 TRIM,DOOR OPENING |
84630-80000-000 |
US $50.40 |
||
|
20
|
20
84642-80120-000 PAD,OPENING WEATHERSTRIP,R |
84642-80120-000 |
US $6.56 |
||
|
21
|
21
84652-80120-000 PAD,OPENING WEATHERSTRIP,L |
84652-80120-000 |
US $4.10 |
||
|
22
|
22
99000-79449-000 PLUG,KEY HOLE BLIND |
99000-79449-000 |
US $9.53 |
||
