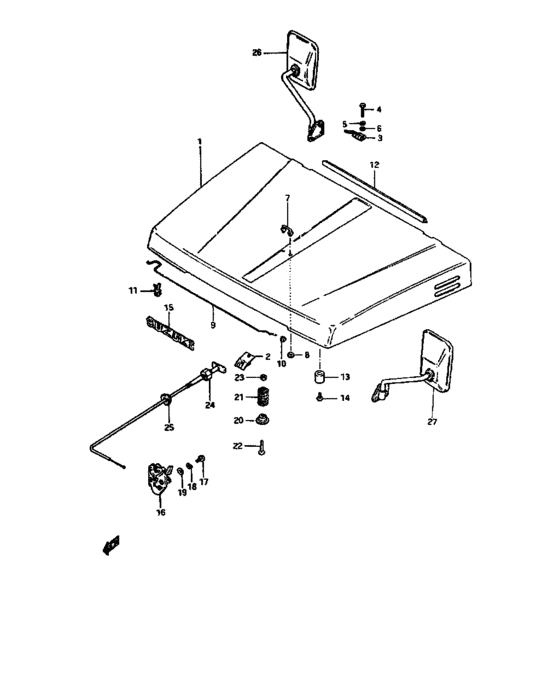

Front hood (FRONT HOOD) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58300-80010-000
パネルアッシ,フロントフード
|
58300-80010-000 |
— | ||
| replacement | |||||
|
1
|
1
58300-80100-000 PANEL ASSY,FRONT HOOD |
58300-80100-000 |
US $1,452.80 |
||
|
2
|
2
58370-80000-000 HOOK,HOOD LOCK |
58370-80000-000 |
US $12.70 |
||
|
3
|
3
58410-80010-000 HINGE,HOOD |
58410-80010-000 |
from US $15.50 |
||
|
4
|
4
01107-06168-000
Bolt
|
01107-06168-000 |
— | ||
| replacement | |||||
|
4
|
4
01500-06167-000 BOLTBolt, fuel cooler |
01500-06167-000 |
from US $0.76 |
||
|
5
|
5
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
5
|
5
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
6
|
6
09160-06019-000 WASHER(6.5X16X1.2)Washer (6.5x16x1.2) |
09160-06019-000 |
from US $0.76 |
||
|
7
|
7
58380-80000-000 HOOK,FR WINDOW |
58380-80000-000 |
US $15.01 |
||
|
8
|
8
08310-11066-000
Nut
|
08310-11066-000 |
— | ||
| replacements | |||||
|
8
|
8
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
8
|
8
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
9
|
9
72442-80000-000
Stay, front hood
Finland,Germany,Austria |
72442-80000-000 |
— | ||
|
10
|
10
09308-10004-000 GROMMETFinland,Germany,Austria |
09308-10004-000 |
US $1.98 |
||
|
11
|
11
09403-09309-000 CLAMPClamp, switch housing Finland,Germany,Austria |
09403-09309-000 |
US $2.56 |
||
|
12
|
12
72464-80060-000
Weatherstrip, hood
Germany,Austria |
72464-80060-000 |
— | ||
|
13
|
13
09320-06011-000 CUSHION |
09320-06011-000 |
from US $2.57 |
||
|
14
|
14
02112-06166-000
Screw
|
02112-06166-000 |
— | ||
| replacements | |||||
|
14
|
14
02112-0616B-000 SCREW |
02112-0616B-000 |
from US $0.80 |
||
|
14
|
14
02112-0616A-000 SCREW |
02112-0616A-000 |
from US $0.76 |
||
|
15
|
15
77814-80000-000
Emblem, suzuki
|
77814-80000-000 |
— | ||
| replacement | |||||
|
15
|
15
77814-80000-8VP EMBLEM,SUZUKI |
77814-80000-8VP |
US $56 |
||
|
16
|
16
82110-80011-000
Lock, hood
LHD |
82110-80011-000 |
— | ||
| replacements | |||||
|
16
|
16
82110-8001V-000 LATCH,HOODLHD |
82110-8001V-000 |
US $152.35 |
||
|
16
|
16
82160-80011-000 CABLE,HOOD LATCH RELEASELHD |
82160-80011-000 |
US $47.20 |
||
|
16
|
16
82110-80001-000
Lock, hood
RHD |
82110-80001-000 |
— | ||
| replacements | |||||
|
16
|
16
82110-80005-000 LATCH,HOODRHD |
82110-80005-000 |
US $110.21 |
||
|
16
|
16
82160-80011-000 CABLE,HOOD LATCH RELEASERHD |
82160-80011-000 |
US $47.20 |
||
|
17
|
17
09128-06004-000 SCREW(6X10) |
09128-06004-000 |
US $7 |
||
| replacement | |||||
|
17
|
17
09128-06044-000 SCREW(6X10)Screw, oil level (6x10) |
09128-06044-000 |
from US $1.22 |
||
|
18
|
18
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
18
|
18
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
19
|
19
09160-06028-000 WASHER(6.5X18X1)Washer |
09160-06028-000 |
from US $0.96 |
||
|
20
|
20
82171-80100-000 SUPPORT,OPEN SPRING |
82171-80100-000 |
US $22.40 |
||
|
21
|
21
09440-27007-000 SPRING |
09440-27007-000 |
US $3.04 |
||
|
22
|
22
02112-06405-000
Screw
|
02112-06405-000 |
— | ||
| replacements | |||||
|
22
|
22
02112-0640B-000 SCREW |
02112-0640B-000 |
US $0.80 |
||
|
22
|
22
02112-0640A-000 SCREW |
02112-0640A-000 |
from US $0.80 |
||
|
23
|
23
08310-11066-000
Nut
|
08310-11066-000 |
— | ||
| replacements | |||||
|
23
|
23
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
23
|
23
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
24
|
24
82160-80000-000
Cable, hood lock
|
82160-80000-000 |
— | ||
| replacement | |||||
|
24
|
24
82160-800V0-000 CABLE,HOOD LATCH RELEASE |
82160-800V0-000 |
US $99.57 |
||
|
25
|
25
82191-80002-000
Grommet, cool / hot
FROM 82191-80001 |
82191-80002-000 |
— | ||
| replacement | |||||
|
25
|
25
82191-50E00-000 GROMMET,LATCH RELEASE CABLEFROM 82191-80001 |
82191-50E00-000 |
US $3.52 |
||
|
26
|
26
84701-80110-281
MIRROR ASSY,RR VIEW,R
|
84701-80110-281 |
— | ||
|
26
|
26
84701-80130-281
MIRROR ASSY,RR VIEW,R
,,Finland,Switzerland,2,Austria |
84701-80130-281 |
— | ||
|
27
|
27
84702-80110-281 MIRROR ASSY,RR VIEW,L |
84702-80110-281 |
US $316.48 |
||
|
27
|
27
84702-80130-281 MIRROR ASSY,RR VIEW,LFinland,Switzerland,Belgium,Germany,Holland,,Italy,Austria |
84702-80130-281 |
US $85.01 |
||
