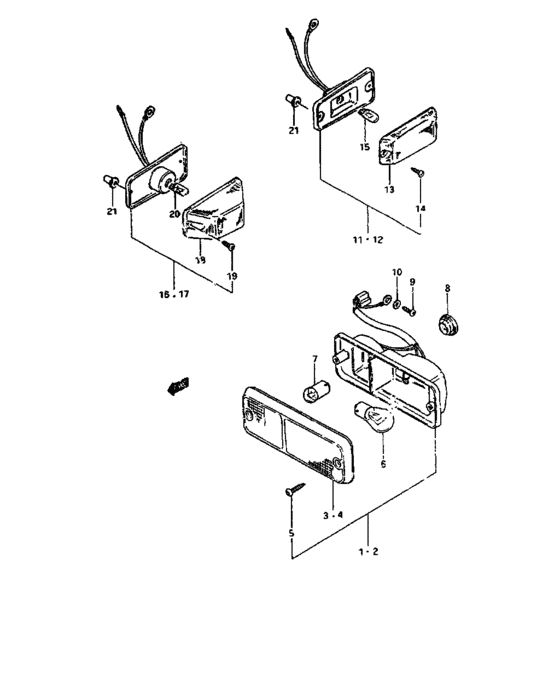

Front lamp (FRONT LAMP) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35601-78000-000 LAMP ASSY,COMB,RTYPE 1 |
35601-78000-000 |
US $76.91 |
||
|
1
|
1
35601-80030-000
Lamp assy, combination rh
TYPE 2 |
35601-80030-000 |
— | ||
| replacement | |||||
|
1
|
1
35601-80032-000
LAMP ASSY,FR COMB,R
TYPE 2 |
35601-80032-000 |
— | ||
|
1
|
1
35601-78011-000 LAMP ASSY,FR COMB,RTYPE 1:,East-South Asia,New Zealand,Morocco,South Sea Islands |
35601-78011-000 |
US $59.62 |
||
|
2
|
2
35602-78000-000 LAMP ASSY,COMB,LTYPE 1 |
35602-78000-000 |
US $76.91 |
||
|
2
|
2
35602-80050-000
Lamp assy, combination lh
TYPE 2 |
35602-80050-000 |
— | ||
| replacement | |||||
|
2
|
2
35602-80052-000 LAMP ASSY,FR COMB,LTYPE 2 |
35602-80052-000 |
US $75.44 |
||
|
2
|
2
35602-78011-000
Lamp assy,fr combi lh
TYPE 1:,East-South Asia,New Zealand,Morocco,South Sea Islands |
35602-78011-000 |
— | ||
|
2
|
2
35602-80030-000
Lamp assy, combination lh
TYPE 2:SEE NOTE |
35602-80030-000 |
— | ||
| replacement | |||||
|
2
|
2
35602-80032-000
LAMP ASSY,FR COMB,L
TYPE 2:SEE NOTE |
35602-80032-000 |
— | ||
|
3
|
3
35612-78000-000 LENS,R |
35612-78000-000 |
US $11.86 |
||
|
3
|
3
35612-79012-000
LENS,R
SEE NOTE |
35612-79012-000 |
— | ||
|
4
|
4
35632-78000-000 LENS,L |
35632-78000-000 |
from US $10.46 |
||
|
4
|
4
35632-79012-000
LENS,L
SEE NOTE |
35632-79012-000 |
— | ||
|
5
|
5
03112-04309-000 SCREW |
03112-04309-000 |
from US $0.76 |
||
|
6
|
6
09471-12056-000
Bulb (12v, 21w)
12V,21W |
09471-12056-000 |
— | ||
| replacement | |||||
|
6
|
6
09471-12045-000 BULB(12V21W)12V,21W |
09471-12045-000 |
from US $2.54 |
||
|
6
|
6
09471-12045-000 BULB(12V21W)SEE NOTE |
09471-12045-000 |
from US $2.54 |
||
|
7
|
7
09471-12058-000
Bulb 12v5w
|
09471-12058-000 |
— | ||
| replacement | |||||
|
7
|
7
09471-12140-000 BULB(12V5W) |
09471-12140-000 |
from US $2.03 |
||
|
7
|
7
09471-12059-000 Ampoule (12v,10w)SEE NOTE |
09471-12059-000 |
US $4.15 |
||
| replacement | |||||
|
7
|
7
09471-12140-000 BULB(12V5W)SEE NOTE |
09471-12140-000 |
from US $2.03 |
||
|
8
|
8
09308-08014-000 GROMMETTYPE 1 |
09308-08014-000 |
US $18.40 |
||
|
8
|
8
09308-08007-000 GROMMETTYPE 2 |
09308-08007-000 |
US $1.76 |
||
|
9
|
9
03111-05126-000
New Genuine Part
|
03111-05126-000 |
— | ||
| replacement | |||||
|
9
|
9
03111-0512A-000 SCREW |
03111-0512A-000 |
from US $0.80 |
||
|
10
|
10
08322-21056-000
Washer
|
08322-21056-000 |
— | ||
| replacements | |||||
|
10
|
10
08322-0105B-000 WASHER |
08322-0105B-000 |
from US $0.76 |
||
|
10
|
10
08322-0105A-000 WASHERWasher, front |
08322-0105A-000 |
from US $0.80 |
||
|
11
|
11
36410-80001-000 LAMP ASSY,SIDE TURN SIG,R |
36410-80001-000 |
US $94.40 |
||
|
12
|
12
36430-80001-000 LAMP ASSY,SIDE TURN SIG,L |
36430-80001-000 |
US $94.40 |
||
|
13
|
13
36412-80000-000 LENS |
36412-80000-000 |
US $7.60 |
||
|
14
|
14
03112-04169-000
スクリュ
|
03112-04169-000 |
— | ||
| replacement | |||||
|
14
|
14
03111-0416A-000 SCREW |
03111-0416A-000 |
US $0.80 |
||
|
15
|
15
09471-12076-000
Bulb (12v,5w)
|
09471-12076-000 |
— | ||
| replacement | |||||
|
15
|
15
09471-12216-000 BULB(12V5W)Bulb (12v5w) |
09471-12216-000 |
from US $2.84 |
||
|
16
|
16
36410-80011-000 LAMP ASSY,SIDE TURN SIG,R,,,Finland,Switzerland,Belgium,,2,5,7,Italy,Austria,Morocco |
36410-80011-000 |
US $21.34 |
||
|
17
|
17
36430-80011-000 LAMP ASSY,SIDE TURN SIG,L,,,Finland,Switzerland,Belgium,,2,5,7,Italy,Austria,Morocco |
36430-80011-000 |
US $21.34 |
||
|
18
|
18
36412-80010-000
LENS
,,,Finland,Switzerland,Belgium,,2,5,7,Italy,Austria,Morocco |
36412-80010-000 |
— | ||
|
19
|
19
03112-04169-000
スクリュ
,,,Finland,Switzerland,Belgium,,2,5,7,Italy,Austria,Morocco |
03112-04169-000 |
— | ||
| replacement | |||||
|
19
|
19
03111-0416A-000 SCREW,,,Finland,Switzerland,Belgium,,2,5,7,Italy,Austria,Morocco |
03111-0416A-000 |
US $0.80 |
||
|
20
|
20
09471-12081-000
Bulb (12v,5w)
,,,Finland,Switzerland,Belgium,,2,5,7,Italy,Austria,Morocco |
09471-12081-000 |
— | ||
| replacement | |||||
|
20
|
20
09471-12216-000 BULB(12V5W)Bulb (12v5w) ,,,Finland,Switzerland,Belgium,,2,5,7,Italy,Austria,Morocco |
09471-12216-000 |
from US $2.84 |
||
|
21
|
21
09159-04004-000 NUT |
09159-04004-000 |
US $1.76 |
||
