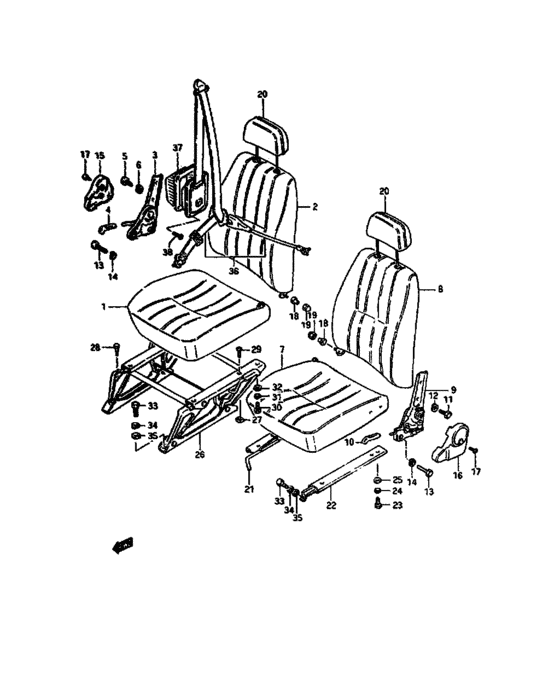

Front seat (Finland,Switzerland,Germany,Austria) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85101-80330-95V
Cushion assy, front rh
Finland |
85101-80330-95V |
— | ||
| replacement | |||||
|
1
|
1
85101-80430-95V
Cushion assy, front rh
Finland |
85101-80430-95V |
— | ||
|
1
|
1
85101-80320-95D
Cushion assy, front rh
Switzerland,Germany,Austria |
85101-80320-95D |
— | ||
|
2
|
2
85301-80330-95V
Back assy, front rh
Finland |
85301-80330-95V |
— | ||
| replacement | |||||
|
2
|
2
85301-80431-95V
Back assy, front rh
Finland |
85301-80431-95V |
— | ||
|
2
|
2
85301-80320-95D
Back assy, front rh
Switzerland,Germany,Austria |
85301-80320-95D |
— | ||
|
3
|
3
85210-80300-000
Reclining assy, rh
|
85210-80300-000 |
— | ||
| replacement | |||||
|
3
|
3
85210-80302-000
Reclining assy, rh
|
85210-80302-000 |
— | ||
|
4
|
4
85211-82000-281
Knob
|
85211-82000-281 |
— | ||
| replacement | |||||
|
4
|
4
85211-82000-T01 KNOB,RECL |
85211-82000-T01 |
US $4.05 |
||
|
5
|
5
01107-08166-000
Bolt m8x1.25x16
|
01107-08166-000 |
— | ||
| replacement | |||||
|
5
|
5
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
6
|
6
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
6
|
6
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
6
|
6
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
7
|
7
85102-80330-95V
Cushion assy, front lh
Finland |
85102-80330-95V |
— | ||
| replacement | |||||
|
7
|
7
85102-80430-95V
Cushion assy, front lh
Finland |
85102-80430-95V |
— | ||
|
7
|
7
85102-80320-95D
Cushion assy, front lh
Switzerland,Germany,Austria |
85102-80320-95D |
— | ||
|
8
|
8
85302-80330-95V
Back assy, front lh
Finland |
85302-80330-95V |
— | ||
| replacement | |||||
|
8
|
8
85302-80431-95V
Back assy, front lh
Finland |
85302-80431-95V |
— | ||
|
8
|
8
85302-80320-95D
Back assy, front lh
Switzerland,Germany,Austria |
85302-80320-95D |
— | ||
|
9
|
9
85710-80300-000
Reclining assy, lh
|
85710-80300-000 |
— | ||
| replacement | |||||
|
9
|
9
85710-80302-000
Reclining assy, lh
|
85710-80302-000 |
— | ||
|
10
|
10
85211-82000-281
Knob
|
85211-82000-281 |
— | ||
| replacement | |||||
|
10
|
10
85211-82000-T01 KNOB,RECL |
85211-82000-T01 |
US $4.05 |
||
|
11
|
11
01107-08166-000
Bolt m8x1.25x16
|
01107-08166-000 |
— | ||
| replacement | |||||
|
11
|
11
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
12
|
12
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
12
|
12
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
12
|
12
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
13
|
13
01107-10356-000
Bolt
|
01107-10356-000 |
— | ||
| replacement | |||||
|
13
|
13
01500-1035B-000 BOLT |
01500-1035B-000 |
from US $4.10 |
||
|
14
|
14
08321-21106-000
Lock washer
|
08321-21106-000 |
— | ||
| replacements | |||||
|
14
|
14
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
14
|
14
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
15
|
15
85221-80290-281
Cover, reclining rh
|
85221-80290-281 |
— | ||
| replacement | |||||
|
15
|
15
85221-80291-281
Cover,reclining,r
|
85221-80291-281 |
— | ||
|
16
|
16
85721-80290-281
Cover, reclining lh
|
85721-80290-281 |
— | ||
| replacement | |||||
|
16
|
16
85721-80291-281
Cover, reclining lh
|
85721-80291-281 |
— | ||
|
17
|
17
03241-05125-000
Screw
|
03241-05125-000 |
— | ||
| replacement | |||||
|
17
|
17
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
18
|
18
85291-80290-000 BUSH,SEAT BACK FIXING |
85291-80290-000 |
US $2.56 |
||
|
19
|
19
08313-11085-000
Nut
|
08313-11085-000 |
— | ||
| replacement | |||||
|
19
|
19
08313-1008B-000 NUT |
08313-1008B-000 |
from US $0.96 |
||
|
20
|
20
86401-80290-42F
Head rest assy
|
86401-80290-42F |
— | ||
| replacement | |||||
|
20
|
20
86401-80291-5GU
HEADRESTRAINT ASSY,FR SEAT
|
86401-80291-5GU |
— | ||
|
21
|
21
86601-80132-000
Rail assy, left seat rh
|
86601-80132-000 |
— | ||
| replacement | |||||
|
21
|
21
86601-80134-000 RAIL ASSY,FR SEAT SLIDER,R |
86601-80134-000 |
US $65.87 |
||
|
22
|
22
86602-80132-000
Rail assy, left seat lh
|
86602-80132-000 |
— | ||
| replacement | |||||
|
22
|
22
86602-80133-000 RAIL ASSY,FR SEAT SLIDE,L |
86602-80133-000 |
US $50.78 |
||
|
23
|
23
01107-06166-000
Bolt
|
01107-06166-000 |
— | ||
| replacement | |||||
|
23
|
23
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
24
|
24
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
24
|
24
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
25
|
25
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
25
|
25
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
26
|
26
86701-80103-000
Wak in assy
|
86701-80103-000 |
— | ||
|
27
|
27
86728-80100-000
Stopper, rear leg
|
86728-80100-000 |
— | ||
|
28
|
28
09321-06008-000 CUSHIONCap, fuel tank upper rear |
09321-06008-000 |
from US $1.22 |
||
|
29
|
29
03241-05108-000
New Genuine Part
|
03241-05108-000 |
— | ||
| replacements | |||||
|
29
|
29
03241-0510A-000 SCREW |
03241-0510A-000 |
from US $0.80 |
||
|
29
|
29
03242-0510B-000 SCREW |
03242-0510B-000 |
US $0.76 |
||
|
30
|
30
01107-06166-000
Bolt
|
01107-06166-000 |
— | ||
| replacement | |||||
|
30
|
30
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
31
|
31
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
31
|
31
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
32
|
32
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
32
|
32
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
33
|
33
01107-08166-000
Bolt m8x1.25x16
|
01107-08166-000 |
— | ||
| replacement | |||||
|
33
|
33
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
34
|
34
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
34
|
34
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
34
|
34
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
35
|
35
08322-11086-000
Washer
|
08322-11086-000 |
— | ||
| replacements | |||||
|
35
|
35
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
35
|
35
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
36
|
36
84901-80131-382
Belt assy, front seat
Finland,Switzerland,Germany,Austria |
84901-80131-382 |
— | ||
|
37
|
37
84924-80130-000 COVER,FR SEAT BELTFinland,Switzerland,Germany,Austria |
84924-80130-000 |
US $11.20 |
||
|
38
|
38
02142-06125-000
Screw
Finland,Switzerland,Germany,Austria |
02142-06125-000 |
— | ||
| replacements | |||||
|
38
|
38
02142-0612B-000 SCREWFinland,Switzerland,Germany,Austria |
02142-0612B-000 |
from US $0.76 |
||
|
38
|
38
02142-0612A-000 SCREWFinland,Switzerland,Germany,Austria |
02142-0612A-000 |
from US $0.80 |
||
