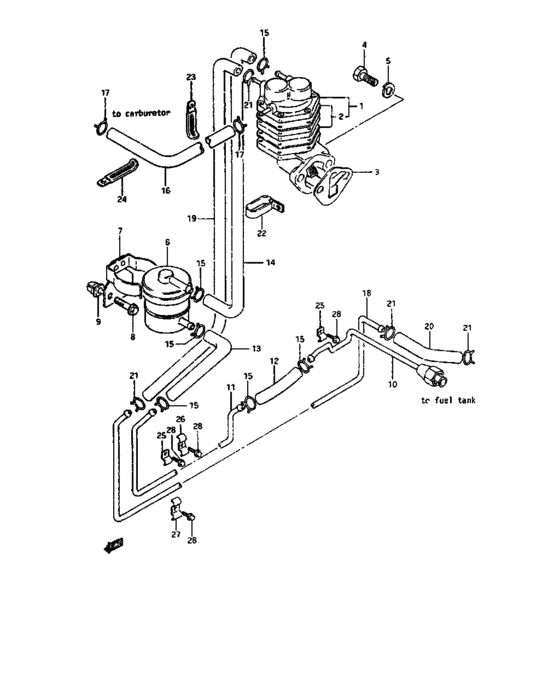

Fuel Pump (F96) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-80000-000
Pump assy, fuel
|
15100-80000-000 |
— | ||
| replacement | |||||
|
1
|
1
15100-8000V-XNA PUMP ASSY,FUEL |
15100-8000V-XNA |
US $114.08 |
||
|
2
|
2
15100-80810-000
Diaphragm set
|
15100-80810-000 |
— | ||
| replacement | |||||
|
2
|
2
15100-8081V-000 DIAPHRAGM SET |
15100-8081V-000 |
US $145.60 |
||
|
3
|
3
15319-73001-000
ガスケット,フューエルポンプ
FROM 15319~73000 |
15319-73001-000 |
— | ||
| replacement | |||||
|
3
|
3
15319-63B00-000 GASKET,FUEL PUMPFROM 15319~73000 |
15319-63B00-000 |
US $8.16 |
||
|
4
|
4
01107-08256-000
Bolt
|
01107-08256-000 |
— | ||
| replacement | |||||
|
4
|
4
01500-0825A-000 Bolt |
01500-0825A-000 |
from US $0.91 |
||
|
5
|
5
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
5
|
5
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
5
|
5
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
6
|
6
13410-80200-000
Filter, fuel
|
13410-80200-000 |
— | ||
|
7
|
7
13410-80001-000
Bracket, fuel filter
|
13410-80001-000 |
— | ||
|
8
|
8
01534-06166-000
Bolt
|
01534-06166-000 |
— | ||
| replacement | |||||
|
8
|
8
01550-06167-000 BOLT |
01550-06167-000 |
from US $0.68 |
||
|
9
|
9
09148-06006-000 NUTNut, side |
09148-06006-000 |
US $0.96 |
||
|
10
|
10
15810-80310-000
Pipe, tank to pipe
|
15810-80310-000 |
— | ||
| replacement | |||||
|
10
|
10
15810-80321-000
PIPE,FUEL
|
15810-80321-000 |
— | ||
|
11
|
11
15821-80011-000
Pipe, pipe to filter
|
15821-80011-000 |
— | ||
|
12
|
12
09343-07050-000
Hose, fuel (pump@rcarb.)
L:655->280 |
09343-07050-000 |
— | ||
| replacement | |||||
|
12
|
12
09355-70125-00B HOSE(7X12X2000)Hose, fuel (conn to filter) (7x12x2000) L:655->280 |
09355-70125-00B |
from US $43.33 |
||
|
13
|
13
09343-07050-000
Hose, fuel (pump@rcarb.)
L:655->150 |
09343-07050-000 |
— | ||
| replacement | |||||
|
13
|
13
09355-70125-00B HOSE(7X12X2000)Hose, fuel (conn to filter) (7x12x2000) L:655->150 |
09355-70125-00B |
from US $43.33 |
||
|
14
|
14
09343-07050-000
Hose, fuel (pump@rcarb.)
L:635->450 |
09343-07050-000 |
— | ||
| replacement | |||||
|
14
|
14
09355-70125-00B HOSE(7X12X2000)Hose, fuel (conn to filter) (7x12x2000) L:635->450 |
09355-70125-00B |
from US $43.33 |
||
|
15
|
15
09401-12301-000 CLIP |
09401-12301-000 |
US $2.13 |
||
|
16
|
16
09343-05044-000
Hose
L:1425->375 |
09343-05044-000 |
— | ||
| replacement | |||||
|
16
|
16
09355-54115-00B HOSE(5.4X11.4X2000)L:1425->375 |
09355-54115-00B |
US $37.17 |
||
|
17
|
17
09401-11402-000
Clip
|
09401-11402-000 |
— | ||
| replacement | |||||
|
17
|
17
09401-11403-000 CLIPClip |
09401-11403-000 |
from US $1.44 |
||
|
18
|
18
15861-80310-000
Pipe, fuel return
|
15861-80310-000 |
— | ||
|
19
|
19
09343-04047-000 Hose, fuelReturn pi? to tank L:480 |
09343-04047-000 |
US $2.57 |
||
| replacement | |||||
|
19
|
19
09355-40805-600 HOSE(4X8X600)L:480 |
09355-40805-600 |
from US $6.24 |
||
|
20
|
20
09343-04047-000 Hose, fuelReturn pi? to tank L:480->125 |
09343-04047-000 |
US $2.57 |
||
| replacement | |||||
|
20
|
20
09355-40805-600 HOSE(4X8X600)L:480->125 |
09355-40805-600 |
from US $6.24 |
||
|
21
|
21
09401-08301-000 CLIP |
09401-08301-000 |
from US $0.96 |
||
|
22
|
22
15891-73001-000
CLAMP,FUEL HOSE NO.1
|
15891-73001-000 |
— | ||
| replacement | |||||
|
22
|
22
09404-10418-000
CLAMP(L:137)
|
09404-10418-000 |
— | ||
|
23
|
23
09404-08414-000
Clamp, wiring harness
|
09404-08414-000 |
— | ||
| replacement | |||||
|
23
|
23
09404-08420-000 CLAMP(L:120 T:1.0) |
09404-08420-000 |
from US $2.08 |
||
|
24
|
24
09404-08402-000
Clamp
|
09404-08402-000 |
— | ||
| replacement | |||||
|
24
|
24
09404-08420-000 CLAMP(L:120 T:1.0) |
09404-08420-000 |
from US $2.08 |
||
|
25
|
25
09403-08309-000 CLAMP |
09403-08309-000 |
US $2.08 |
||
|
26
|
26
09403-08310-000 CLAMP |
09403-08310-000 |
US $1.12 |
||
|
27
|
27
13819-78000-000
Clamp, return pipe
|
13819-78000-000 |
— | ||
|
28
|
28
09132-06006-000 SCREW(6X12) |
09132-06006-000 |
US $1.60 |
||
