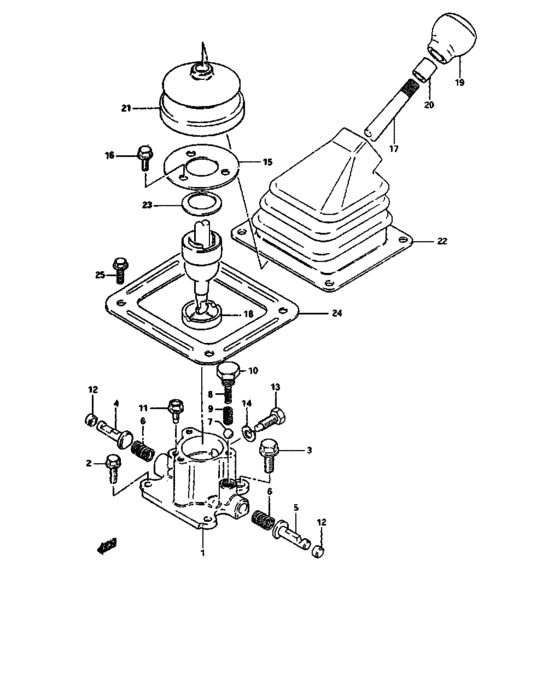

Gear shifting control (GEAR SHIFTING CONTROL) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25121-80100-000 CASE,GEAR SHIFT LEVER |
25121-80100-000 |
US $170.75 |
||
|
2
|
2
01517-06206-000
Bolt 6x20
|
01517-06206-000 |
— | ||
| replacements | |||||
|
2
|
2
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
2
|
2
01550-0620A-000 BOLT |
01550-0620A-000 |
from US $0.76 |
||
|
3
|
3
01517-08206-000
Bolt
|
01517-08206-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
3
|
3
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
4
|
4
25341-69002-000 PIN,LOW SPEED SELECT GUIDE |
25341-69002-000 |
US $22.05 |
||
|
5
|
5
25342-69002-000 PIN,REVERSE SELECT GUIDE |
25342-69002-000 |
US $22.05 |
||
|
6
|
6
09440-11005-000 SPRING |
09440-11005-000 |
US $14.70 |
||
|
7
|
7
06112-10004-000 BALL |
06112-10004-000 |
from US $0.68 |
||
| replacement | |||||
|
7
|
7
06111-10003-000 BALL |
06111-10003-000 |
from US $0.80 |
||
|
8
|
8
09440-04019-000 SPRING |
09440-04019-000 |
US $7.70 |
||
|
9
|
9
09440-07005-000 SPRING |
09440-07005-000 |
US $10.30 |
||
|
10
|
10
09128-10001-000
Vis m. a.
|
09128-10001-000 |
— | ||
| replacement | |||||
|
10
|
10
09128-10002-000 BOLT(10X9) |
09128-10002-000 |
from US $1.28 |
||
|
11
|
11
09128-06032-000 SCREW(6X13.5) |
09128-06032-000 |
US $1.22 |
||
|
12
|
12
09241-08001-000
Plug
|
09241-08001-000 |
— | ||
|
13
|
13
09135-08001-000
Boulon
|
09135-08001-000 |
— | ||
| replacement | |||||
|
13
|
13
09135-08006-000 BOLT(8X20) |
09135-08006-000 |
US $2.24 |
||
|
14
|
14
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
14
|
14
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
14
|
14
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
15
|
15
25125-69001-000
COVER,LEVER CASE
|
25125-69001-000 |
— | ||
|
16
|
16
01517-06126-000
Bolt m6x1x12
|
01517-06126-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
16
|
16
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
17
|
17
28101-80001-000 LEVER,CONT |
28101-80001-000 |
US $422.40 |
||
|
18
|
18
28117-80100-000
Sheet, lever lower
|
28117-80100-000 |
— | ||
| replacement | |||||
|
18
|
18
28117-82C02-000 SEAT,GEAR CONTROL LOWER |
28117-82C02-000 |
from US $7.31 |
||
|
19
|
19
28113-80100-000
Knob, lever
|
28113-80100-000 |
— | ||
| replacement | |||||
|
19
|
19
28113-50E20-6GL KNOB,GEAR SHF CONT LVR |
28113-50E20-6GL |
US $29.61 |
||
|
20
|
20
09305-10009-000
Bush
|
09305-10009-000 |
— | ||
|
21
|
21
28135-80000-000 BOOT,NO.1 |
28135-80000-000 |
US $25.08 |
||
|
22
|
22
28136-80000-000
BOOT,NO.2
|
28136-80000-000 |
— | ||
|
23
|
23
09164-24003-000 WASHER |
09164-24003-000 |
from US $1.82 |
||
|
24
|
24
28137-80000-000
Cover, boot
|
28137-80000-000 |
— | ||
|
25
|
25
01517-06126-000
Bolt m6x1x12
|
01517-06126-000 |
— | ||
| replacements | |||||
|
25
|
25
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
25
|
25
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
