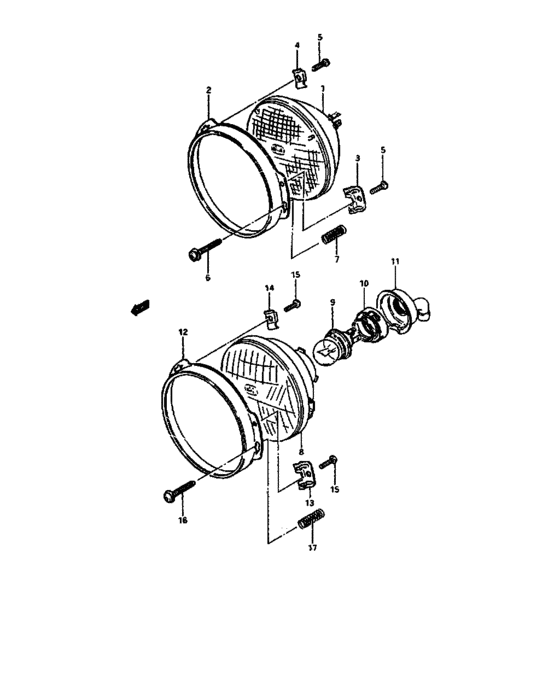

Headlamp (HEADLAMP) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35121-80000-000
Unit
LHD |
35121-80000-000 |
— | ||
| replacement | |||||
|
1
|
1
35121-70A01-000
UNIT,LAMP
LHD |
35121-70A01-000 |
— | ||
|
1
|
1
35121-51032-000
ユニット,ヘッドランプ
RHD |
35121-51032-000 |
— | ||
| replacement | |||||
|
1
|
1
35121-83021-000 UNIT,LAMPRHD |
35121-83021-000 |
US $256 |
||
|
2
|
2
35131-64031-000 RIM,HEADLAMP |
35131-64031-000 |
from US $19.46 |
||
|
3
|
3
35132-72600-000 PLATE,NO.2 |
35132-72600-000 |
US $1.60 |
||
|
4
|
4
35136-51030-000 PLATE,NO.3 |
35136-51030-000 |
US $1.60 |
||
|
5
|
5
02112-04088-000
Screw
|
02112-04088-000 |
— | ||
| replacement | |||||
|
5
|
5
02112-04087-000 SCREW |
02112-04087-000 |
from US $0.80 |
||
|
6
|
6
35151-75100-000
Screw
|
35151-75100-000 |
— | ||
| replacement | |||||
|
6
|
6
09122-45001-000 SCREW(5X45) |
09122-45001-000 |
US $2.24 |
||
|
7
|
7
35154-51030-000
スプリング
|
35154-51030-000 |
— | ||
| replacement | |||||
|
7
|
7
35154-80C01-000 SPRING,HEADLAMP |
35154-80C01-000 |
US $4.16 |
||
|
8
|
8
35121-72600-000
UNIT,HEADLAMP
,Switzerland,Belgium,Germany,Holland,,Italy,Austria,Morocco |
35121-72600-000 |
— | ||
|
8
|
8
35121-73040-000
Lamp unit,head
,,7 |
35121-73040-000 |
— | ||
|
8
|
8
35121-78400-000
Lamp unit head
Finland |
35121-78400-000 |
— | ||
|
9
|
9
09471-12049-000
Bulb (12v,45/40w)
,Morocco |
09471-12049-000 |
— | ||
|
9
|
9
09471-12048-000 BULB(12V45/40W)Bulb (12v,45/40w) ,,Finland,Switzerland,Belgium,2,,5,7,Italy,Austria |
09471-12048-000 |
US $182.20 |
||
|
10
|
10
35136-34670-000
SETTER,BULB
,,,Finland,Switzerland,Belgium,2,,5,7,Italy,Austria,Morocco |
35136-34670-000 |
— | ||
|
11
|
11
35179-72600-000
COVER,HEADLAMP BULB
,,,Finland,Switzerland,Belgium,2,,5,7,Italy,Austria,Morocco |
35179-72600-000 |
— | ||
|
12
|
12
35131-64031-000 RIM,HEADLAMP,,,Finland,Switzerland,Belgium,2,,5,7,Italy,Austria,Morocco |
35131-64031-000 |
from US $19.46 |
||
|
13
|
13
35132-72600-000 PLATE,NO.2,,,Finland,Switzerland,Belgium,2,,5,7,Italy,Austria,Morocco |
35132-72600-000 |
US $1.60 |
||
|
14
|
14
35136-72600-000 PLATE,NO.3,,,Finland,Switzerland,Belgium,2,,5,7,Italy,Austria,Morocco |
35136-72600-000 |
US $1.60 |
||
|
15
|
15
02112-04088-000
Screw
,,,Finland,Switzerland,Belgium,2,,5,7,Italy,Austria,Morocco |
02112-04088-000 |
— | ||
| replacement | |||||
|
15
|
15
02112-04087-000 SCREW,,,Finland,Switzerland,Belgium,2,,5,7,Italy,Austria,Morocco |
02112-04087-000 |
from US $0.80 |
||
|
16
|
16
35151-75100-000
Screw
,,,Finland,Switzerland,Belgium,2,,5,7,Italy,Austria,Morocco |
35151-75100-000 |
— | ||
| replacement | |||||
|
16
|
16
09122-45001-000 SCREW(5X45),,,Finland,Switzerland,Belgium,2,,5,7,Italy,Austria,Morocco |
09122-45001-000 |
US $2.24 |
||
|
17
|
17
35154-51030-000
スプリング
,Morocco |
35154-51030-000 |
— | ||
| replacement | |||||
|
17
|
17
35154-80C01-000 SPRING,HEADLAMP,Morocco |
35154-80C01-000 |
US $4.16 |
||
|
17
|
17
35154-77000-000
Spring
,,Finland,Switzerland,Belgium,2,,5,7,Italy,Austria |
35154-77000-000 |
— | ||
| replacement | |||||
|
17
|
17
35154-80C01-000 SPRING,HEADLAMP,,Finland,Switzerland,Belgium,2,,5,7,Italy,Austria |
35154-80C01-000 |
US $4.16 |
||
